DA600+ Solar Wireless Beams & PIRs Perimeter Alarm with KP9 3G GSM Dialler & Loud Wired Siren

Long range DA600+ Wireless Solar Beams & PIR Perimeter Alarm with a 3G GSM Dialler & Loud Wired Siren to help protect your Home & Business. The Alarm will contact key-holders by Phone & Text when Triggered together with activating an Internal & External Wired Siren.

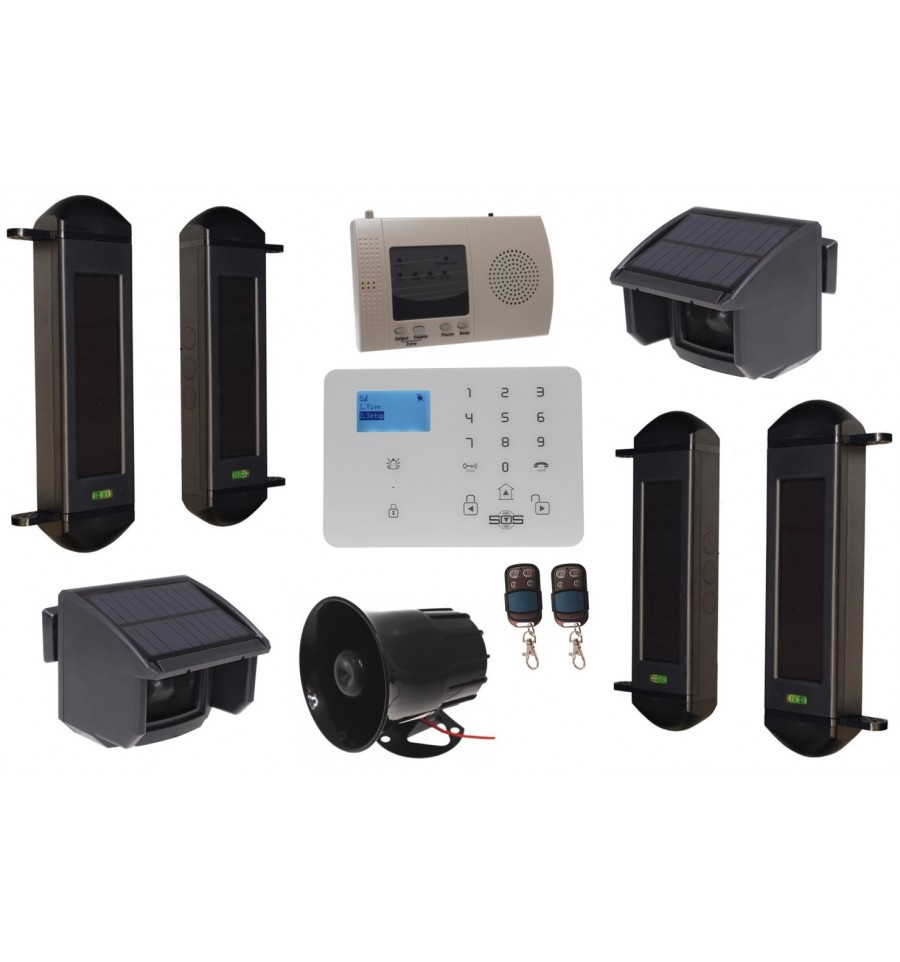

This kit is supplied with the following (although many additional parts could be added to suit any environment):

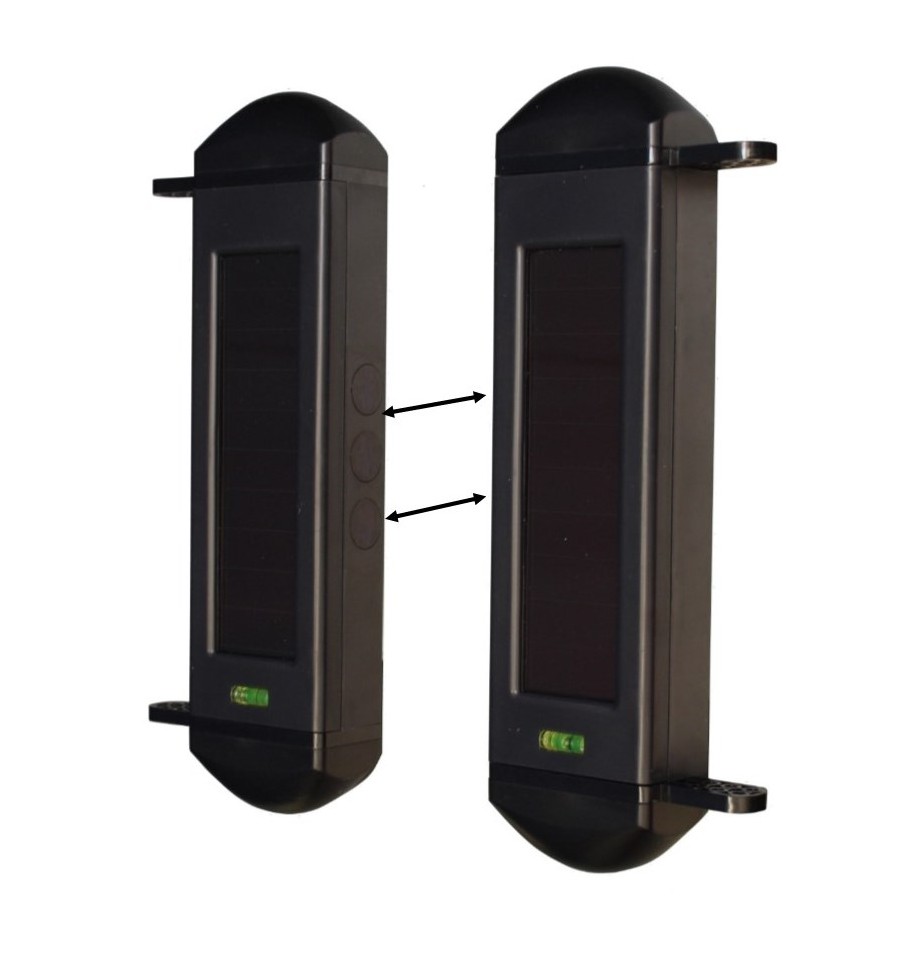

• 2 x Sets of 1B Wireless Solar Beams.
• 2 x DA-600 Wireless Solar PIR's.
• 1 x Wireless Receiver.
• 1 x KP9 3G GSM Auto-Dialler.

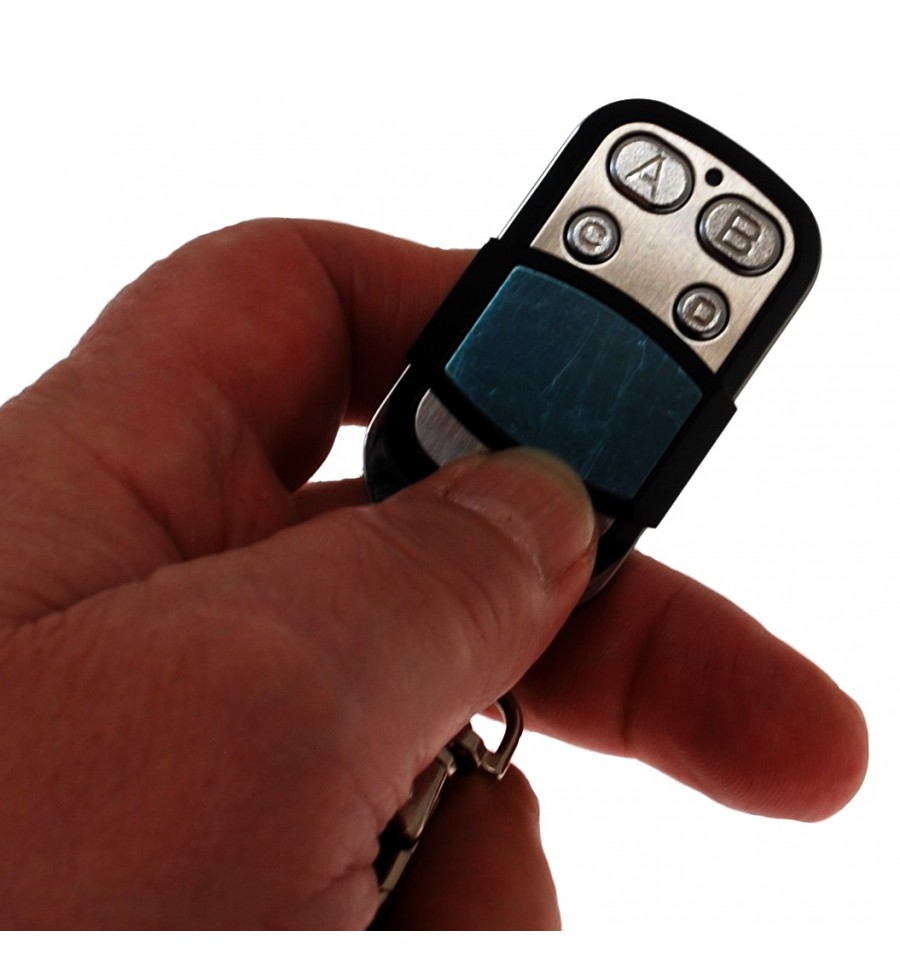

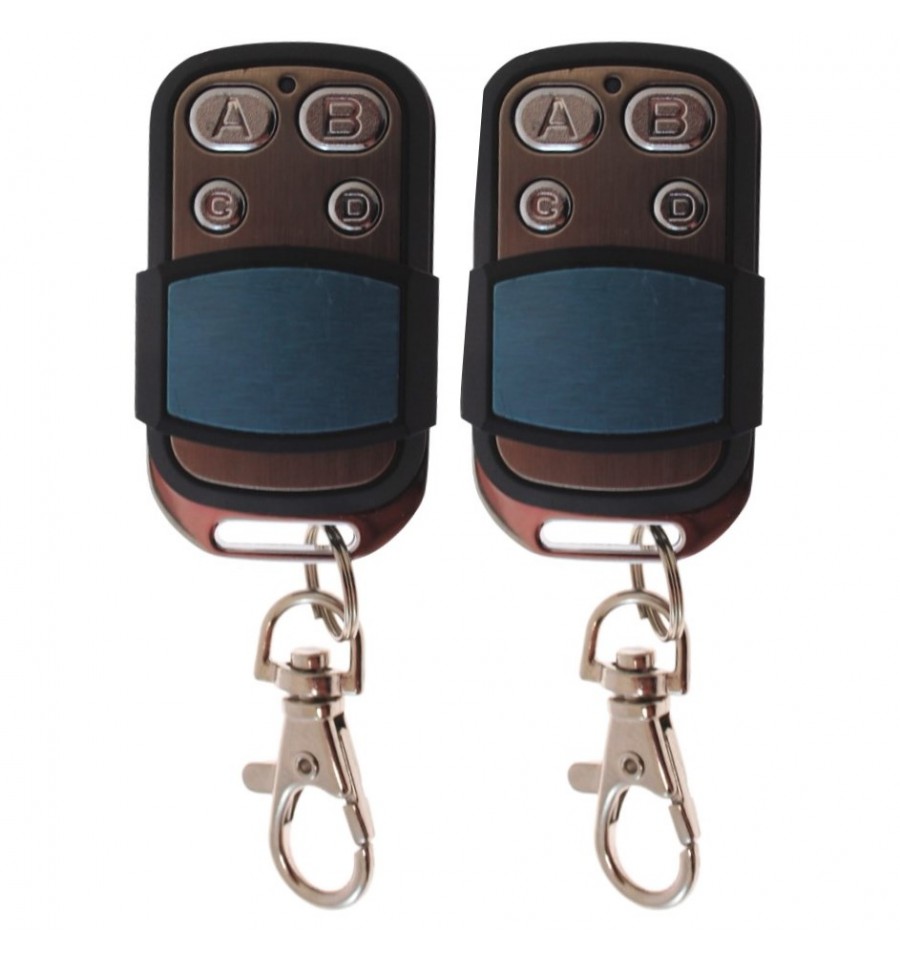

• 2 x KP9 Remote Controls (to Arm and Disarm to Alarm).
• 1 x Loud Wired Sire (118 Decibel).

Compatible with all DA600+ Products !!

How it Works:

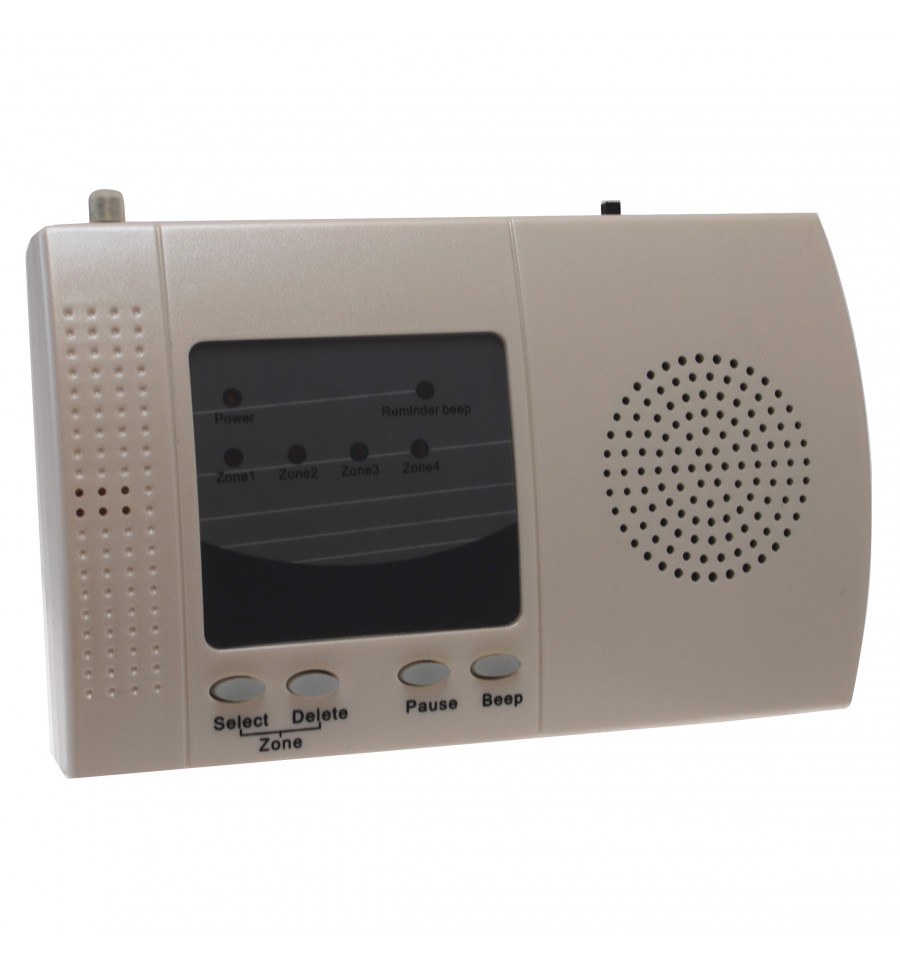

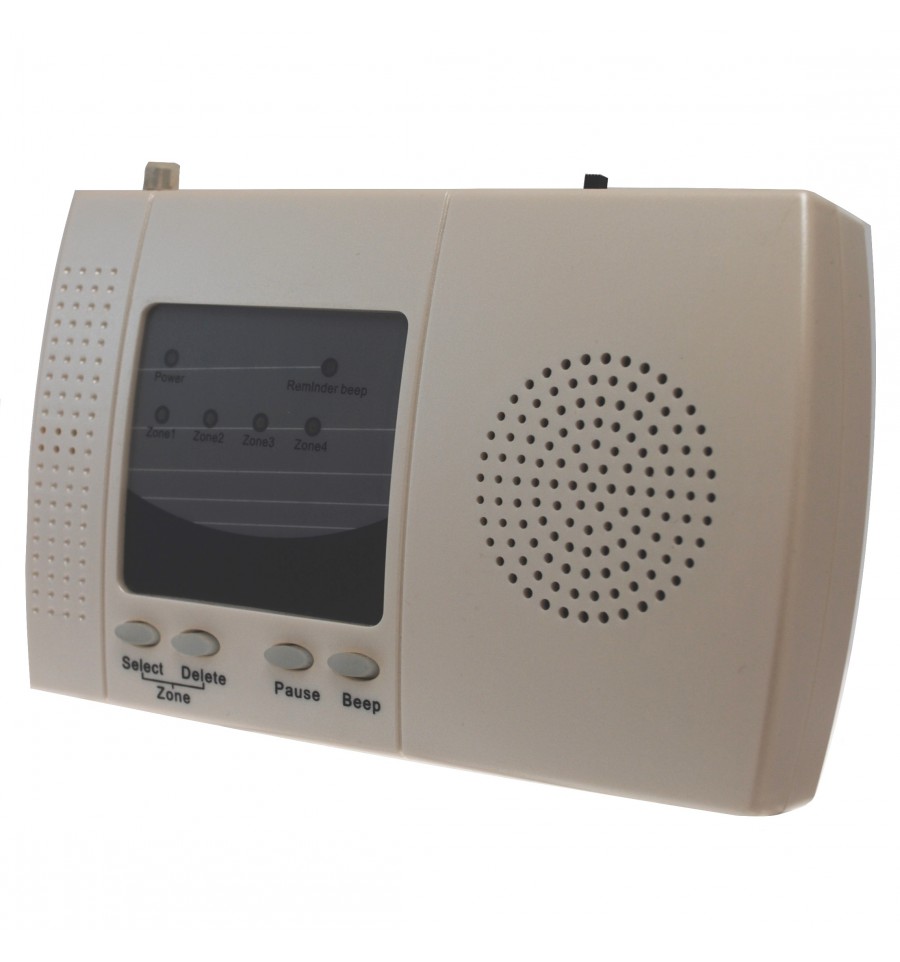

Receiver:

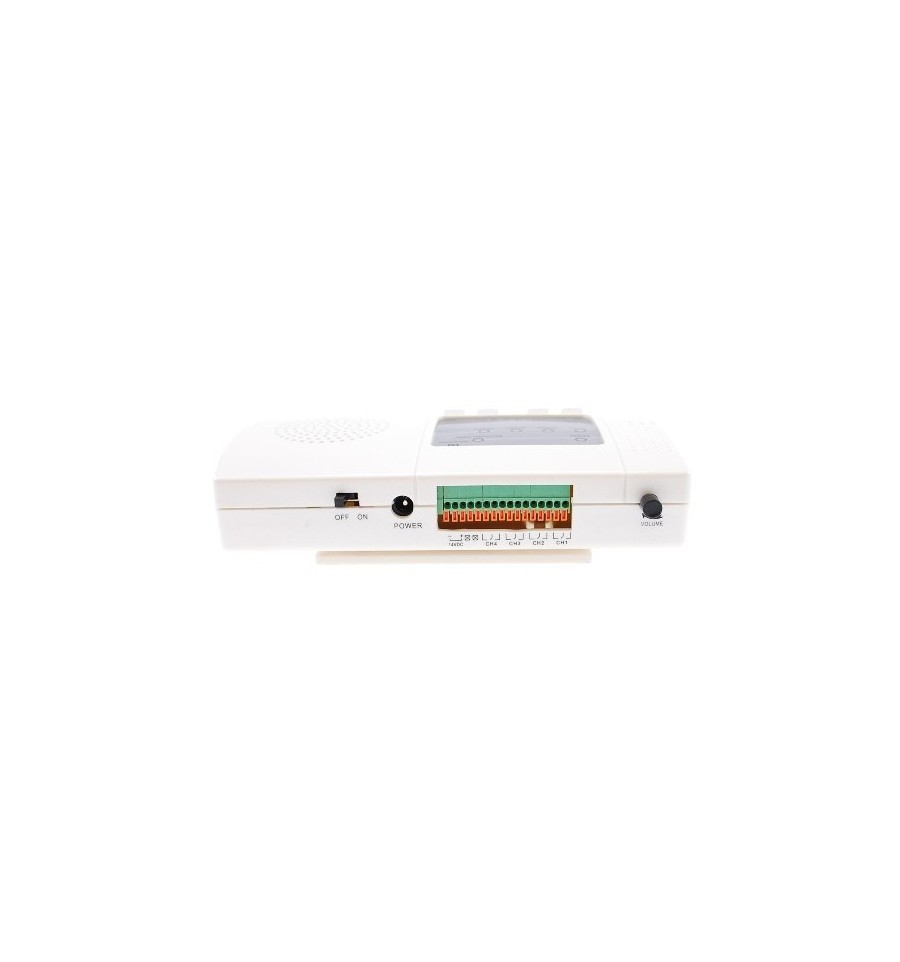

The Indoor 4 - Channel Wireless Receiver is powered by a standard 2-pin U.S Plug in Transformer and has the following features:

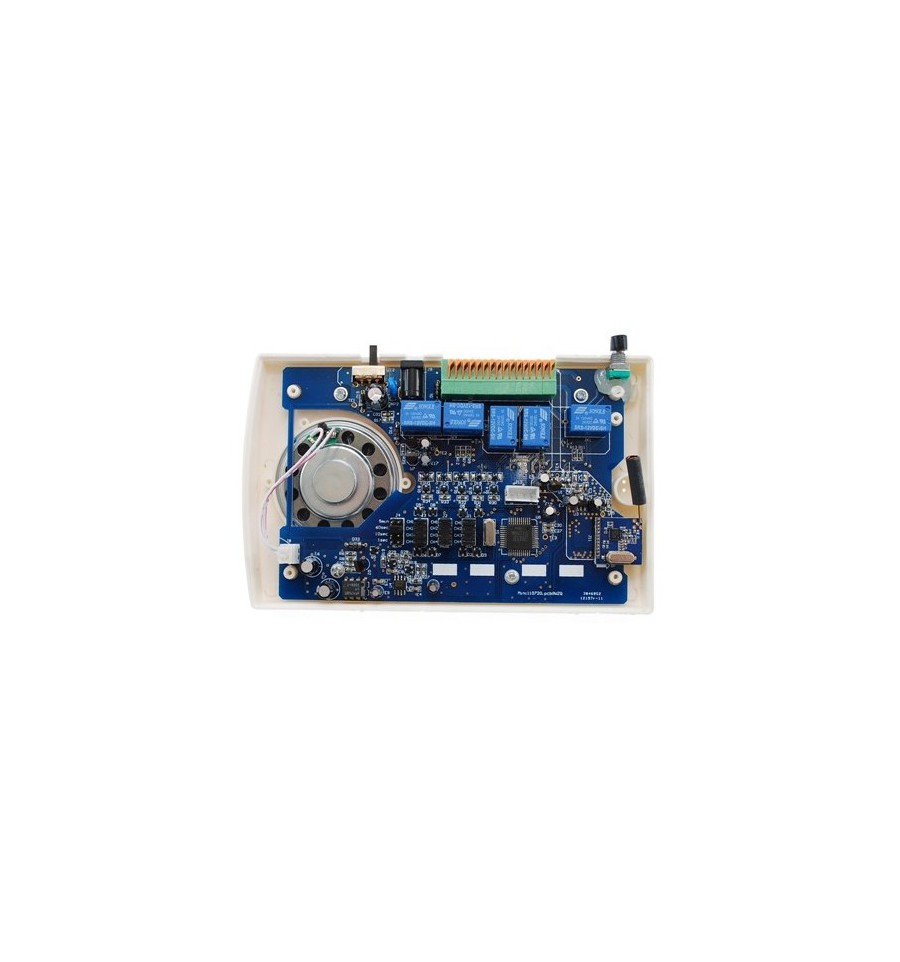

• 4 x Adjustable Dry Relay N/O or N/C Outputs (often used to trigger auto-diallers, timer relays).
• Adjustable 12v DC Outputs (often used with sirens & flashing lights).
• ON/OFF Switch.
• 5 minute Exit Delay (using the remote controls or receiver).
• Volume Control.
• Will work with up to 128 sets of Detectors (Beams, PIR's, Door Contacts).
• Optional Reminder Bleeps.
• Exit Delay Option.
• Long Distance Wireless Range (can be extended by adding a Signal Repeater).

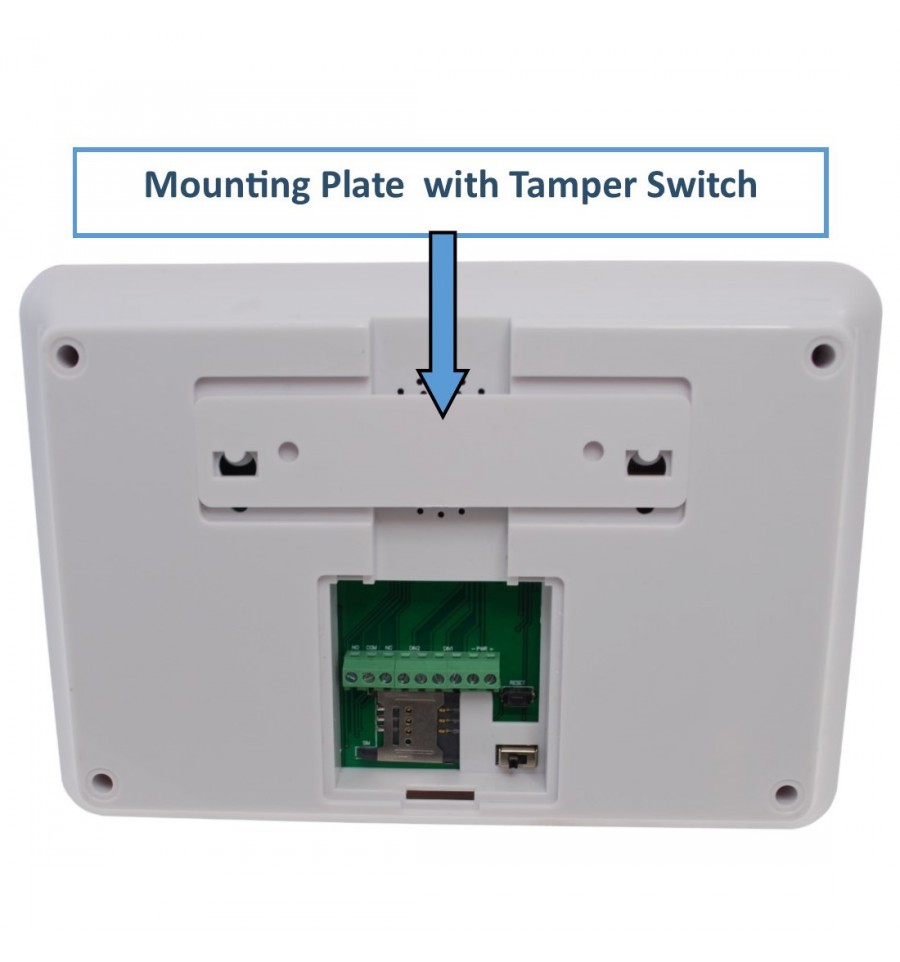

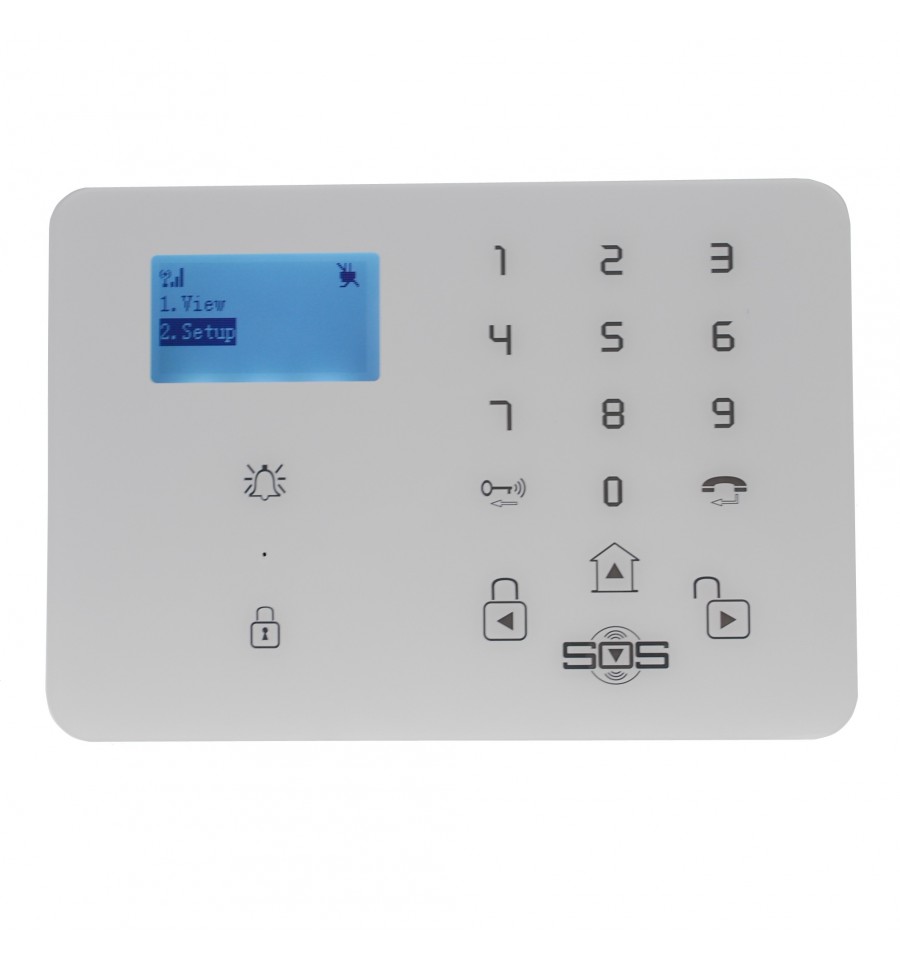

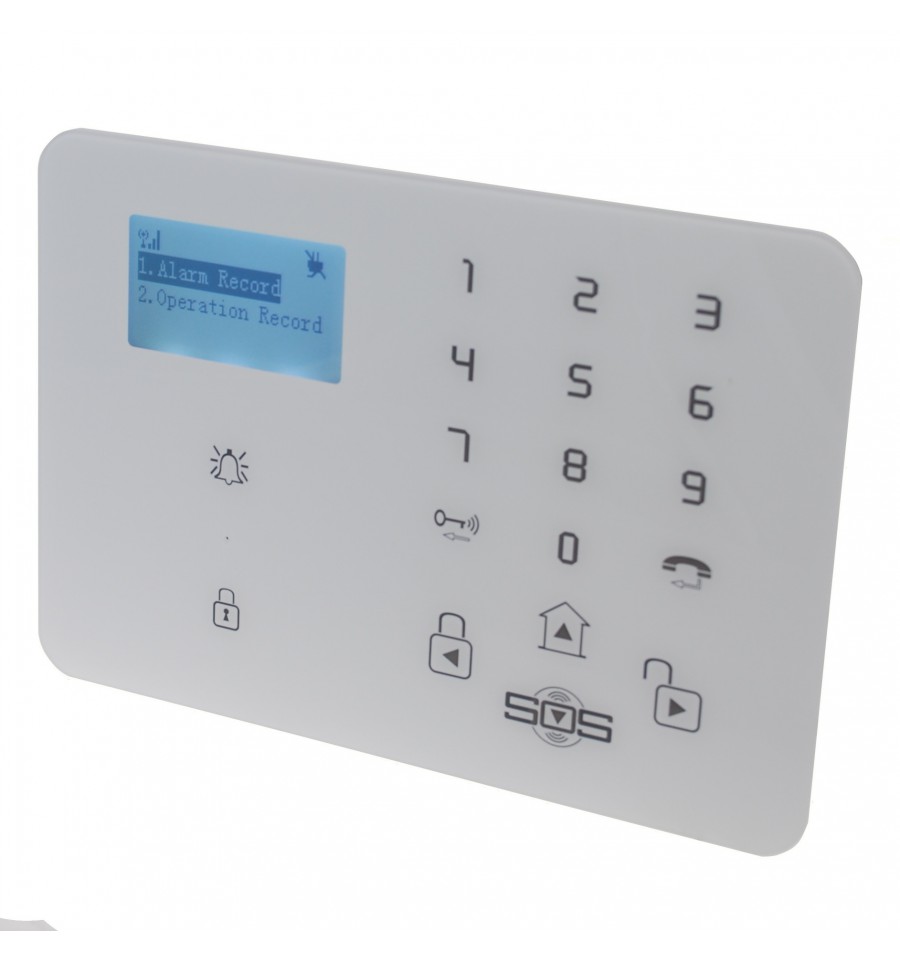

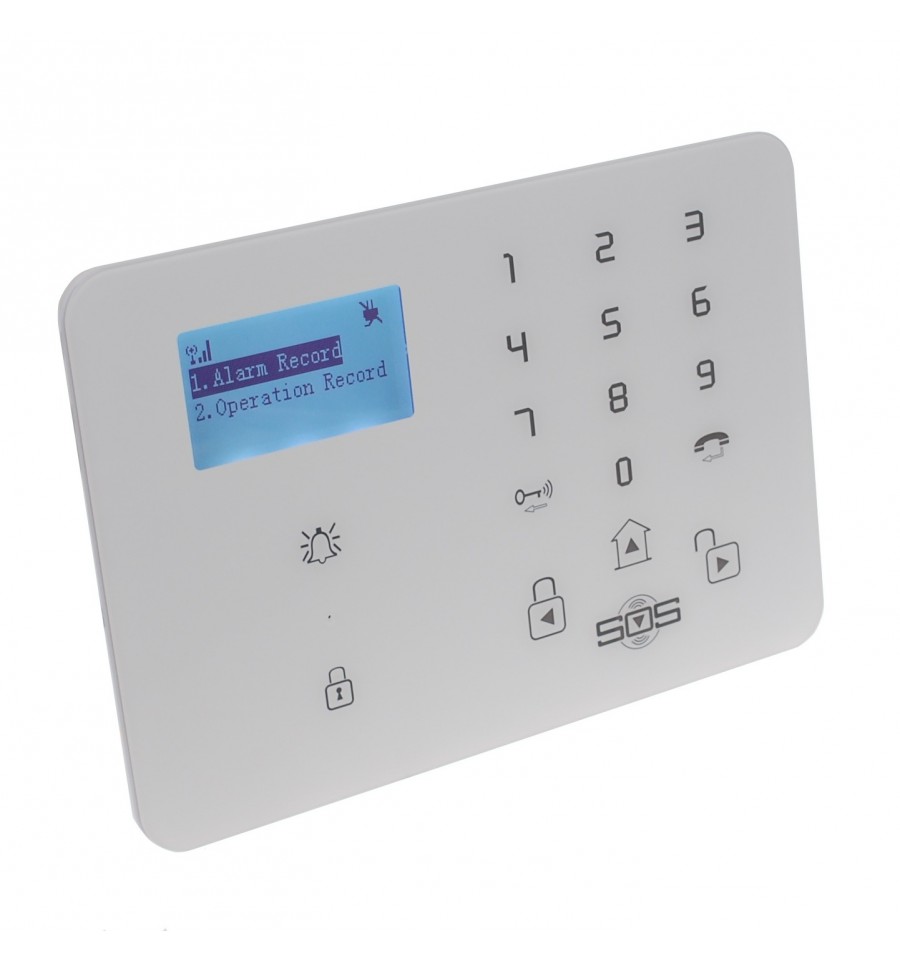

KP9 3G GSM Auto-Dialler:

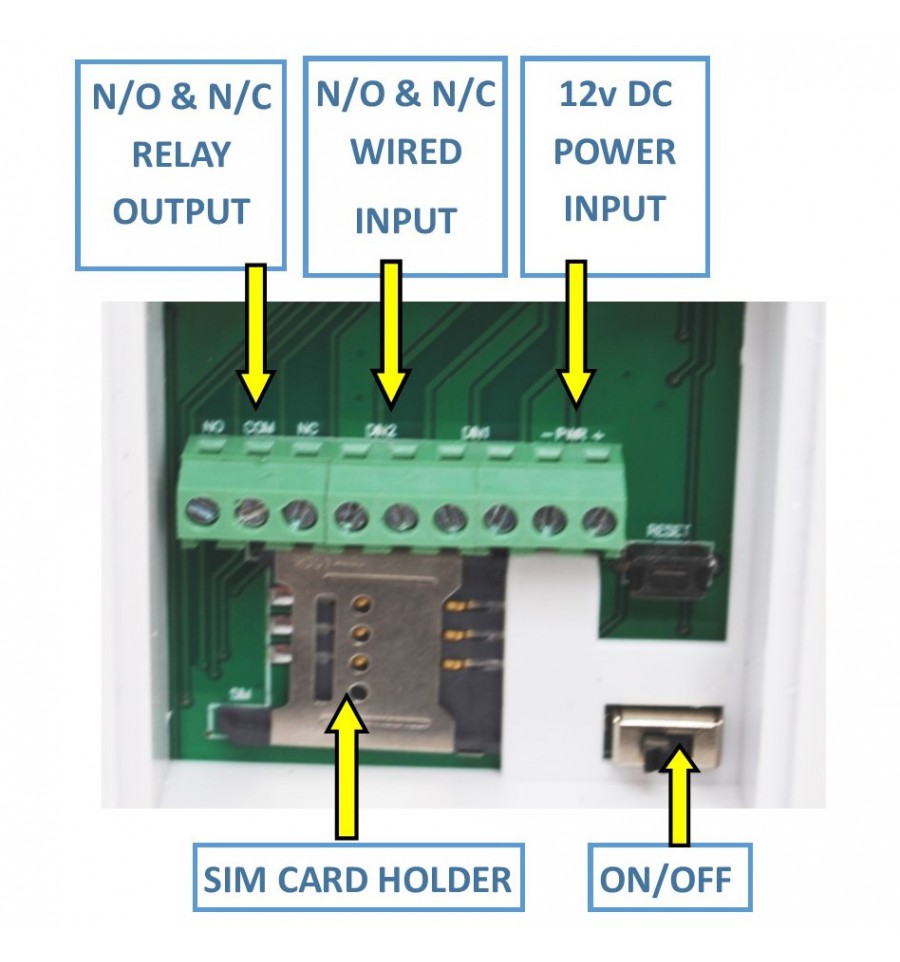

The KP9 3G GSM Auto-Dialler is connected to the Wireless Receiver by a short length of bell cable (supplied) and communicates through mobile phone networks, a standard sized SIM Card needs to be fitted (not supplied) you can use either PAYG or Contract.

The Dialler operates on the mobile phone networks making it more reliable and is packed full of features normally only associated with much more expensive systems including:

• Contacts up to 9 x Key-holders by Telephone & Text Message (optional).
• Built in Siren (adjustable duration from 1 to 999 seconds).
• Simple Plug in Power Supply with Back up Battery.
• Transformer Rating: 12v DC 1 amp.
• Can be used with Wireless Sirens (contact us for advice).

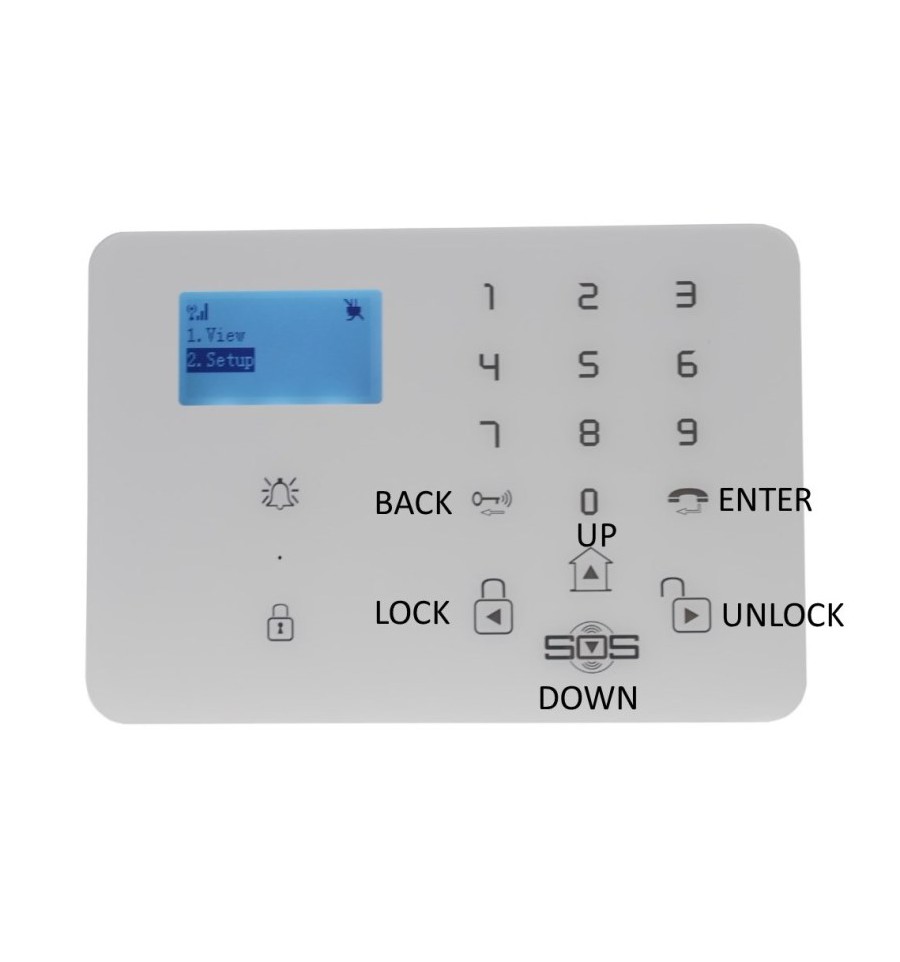

• Easy to Program (using the built in keypad and LCD Screen or APP).
• Easy to Operate using:
  • Remote Control.
  • Built in Keypad.
  • Built in Timer.
  • Text Message.
  • APP.
• Many Modes of Operation including:
  • Full Arm.
  • Home Arm.
  • Entrance.
  • 24 Hour (with Siren).
  • 24 Hour (silent).
• 2 x Wired Input Zones.
• 95 x Wireless Zones.
• Built in Power Failure (optional).
• Built in Temperature (optional).
• 2 x way Communication.
• Log (history) Logging.
• Low Battery Warning (of accessories).
• Optional APP (iOS or Android).
• 12 Language Menu (including English, French, German, Italian, Dutch & Spanish).

The secret to using this GSM Auto-Dialler with a Perimeter Alarm is to use the Dialler as the brains of the system, when you Arm the Dialler the Alarm will be fully Armed, whilst it is Disarmed you can still choose to have a chime on the Wireless Receiver should you wish (which can be helpful as an alert).

The Dialler can be controlled by:

• Built in Keypad.

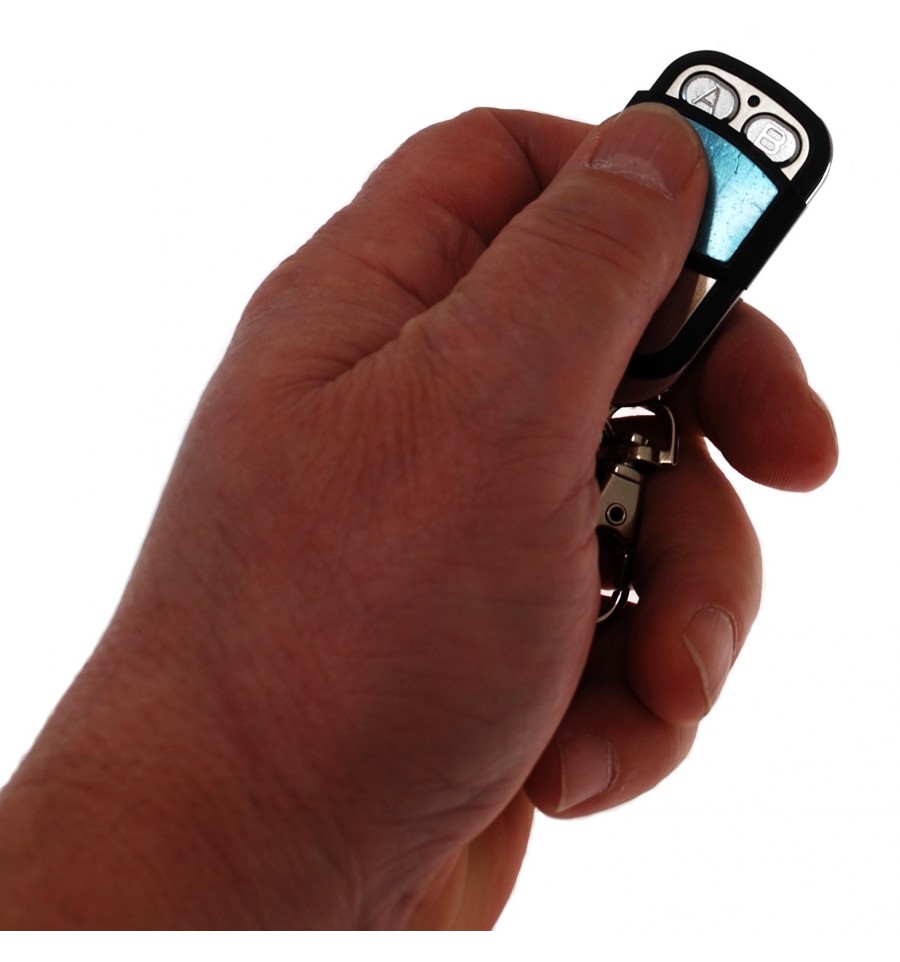

• Remote Control (2 supplied additions can be added).
• Text Message.
• Built in Timer.
• APP.

Siren:

This Perimeter Alarm is supplied with a very loud 118 decibel 6-tone Siren and 3 metres of Cable (which can be easily extended), the Siren is connected into the KP9 GSM Dialler, and would only work if the Dialler is Armed.

The GSM Control Panel can also in different ways helping you a return on the investment, examples below:

• Wireless Internal Burglar Alarm.
• Wireless Smoke Alarm.
• Temperature Monitor.
• Power Failure Monitor.
• Door Bell.
• 2-way Communication.
• Water & Flood Monitor.

You can add many additional accessories to this Perimeter Alarm system to suit your application including:

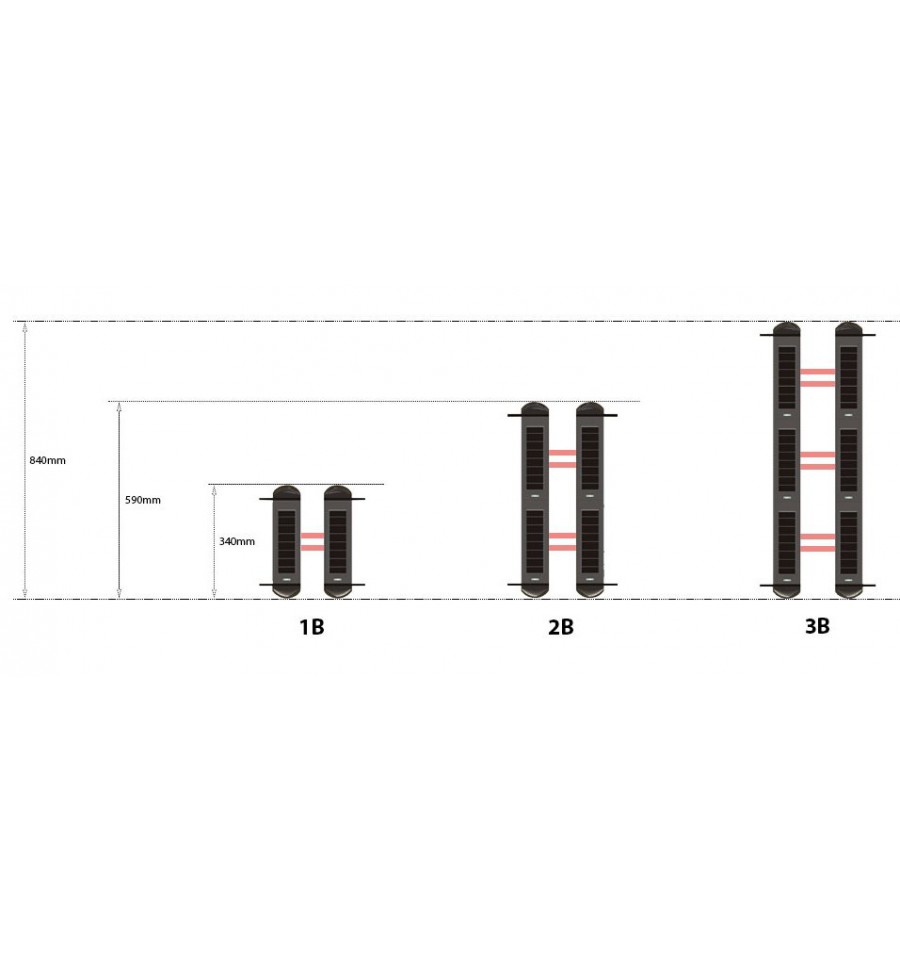

• Additional Perimeter Beams (4 x sizes).
• Window Beams (2 x sizes).
• PIR's & Door Contacts.
• External Wired & Wireless Sirens.
• Internal Sirens & Buzzers.
• Speech Alerts.
• Relays (for lighting).
• Flashing Lights.

*You can use up to 128 sets of Wireless Detectors with this single Alarm System*

If you require advice when building your system, please contact us for Friendly, No Obligation Advice !!

Need Advice on choosing the best System for your personal application or Help after you have Purchased one, then please contact

us by:

Telephone: We are still available in the old fashioned way, give us a call on 01604 589414 or 01604 758438 to talk to a real person, we are happy to give you Friendly, No Obligation advice (lines open 8am to 5.30pm Monday - Thursday, 8am to 5pm Friday).

Email: If you don't have time to call us, then send us an email to info@ultrasecuredirect.com.


Personal Visit: Some customers find it far easier to come and meet us for a Friendly, No Obligation Consultation (click here for full details).

• 2 x Sets of 1B Wireless Solar Beams.
• 2 x DA-600 Wireless Solar PIR's.
• 1 x Wireless Receiver & 2-pin U.S Plug in Transformer.
• 1 x KP9 3G GSM Auto-Dialler & 2-pin U.S Plug in Transformer.
• 2 x KP9 Remote Controls (to Arm and Disarm to Alarm).
• 1 x Loud Wired Sire (118 Decibel) with 9 ft of Cable.

Receiver:

• Receiver Size: 6.2" x 4.2" x 1.5".
• Power Supply: 15v DC 1amp (plug in transformer).
• ON/OFF Button: Yes.
• Adjustable Volume Control: Yes.
• Available Channels: 4.
• Max sets of Beams per Channel: 32.
• Maximum sets of Detectors per Receiver: 128.
• Output Voltage: 12v DC.
• Output Voltage Duration: 1, 10, 60 second & 5 minutes.
• Built in Chimes: Yes (one per channel).
• Reminder Bleep: Yes (if programmed).
• Exit Delay: Yes 5 minutes (if programmed).
• Frequency: 434.6 MHz.
• Standby Current: 20 mA.
• Alarm Current: 180 mA.
• Relay Rating: 24v DC or 120v AC (2 amp).
• Wireless Working Range: Up to 2700 ft line of sight (depending on which sensor or beam is being used).

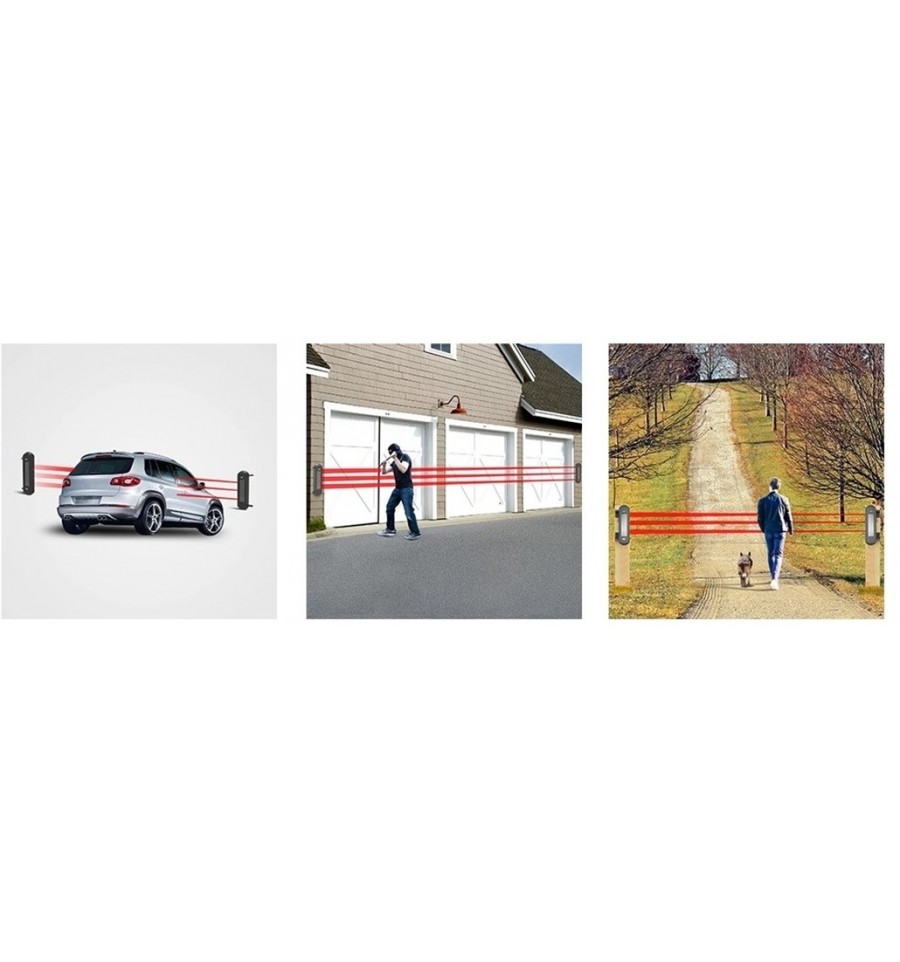

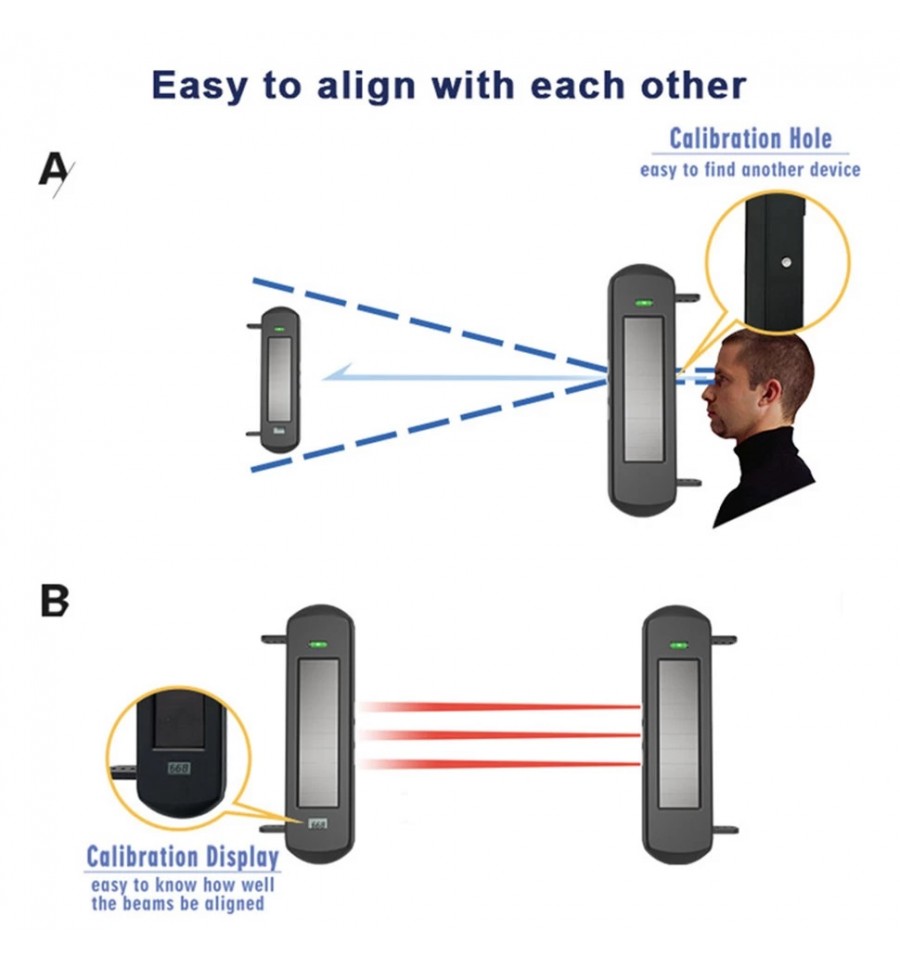

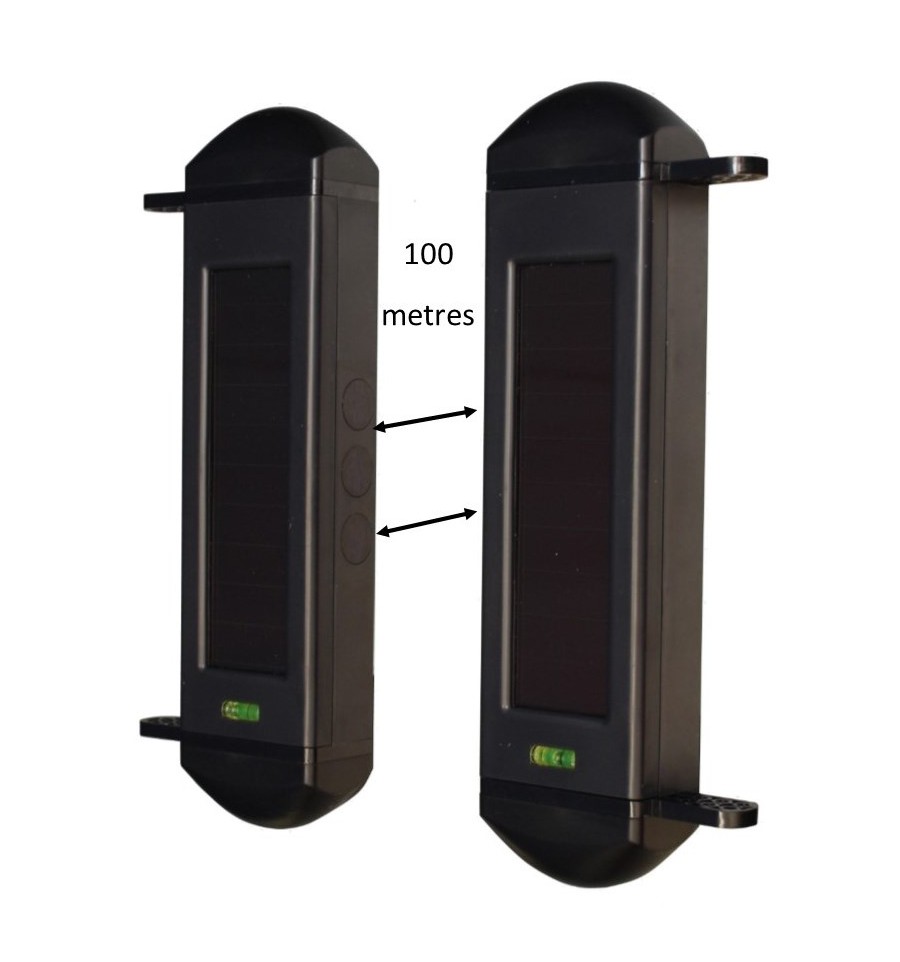

Beams:

• Beam Size: 13.4" x 5" x 1.8".
• Power Supply: Re-chargeable Lithium Batteries.
• Charging Method: Built in Solar Panels.

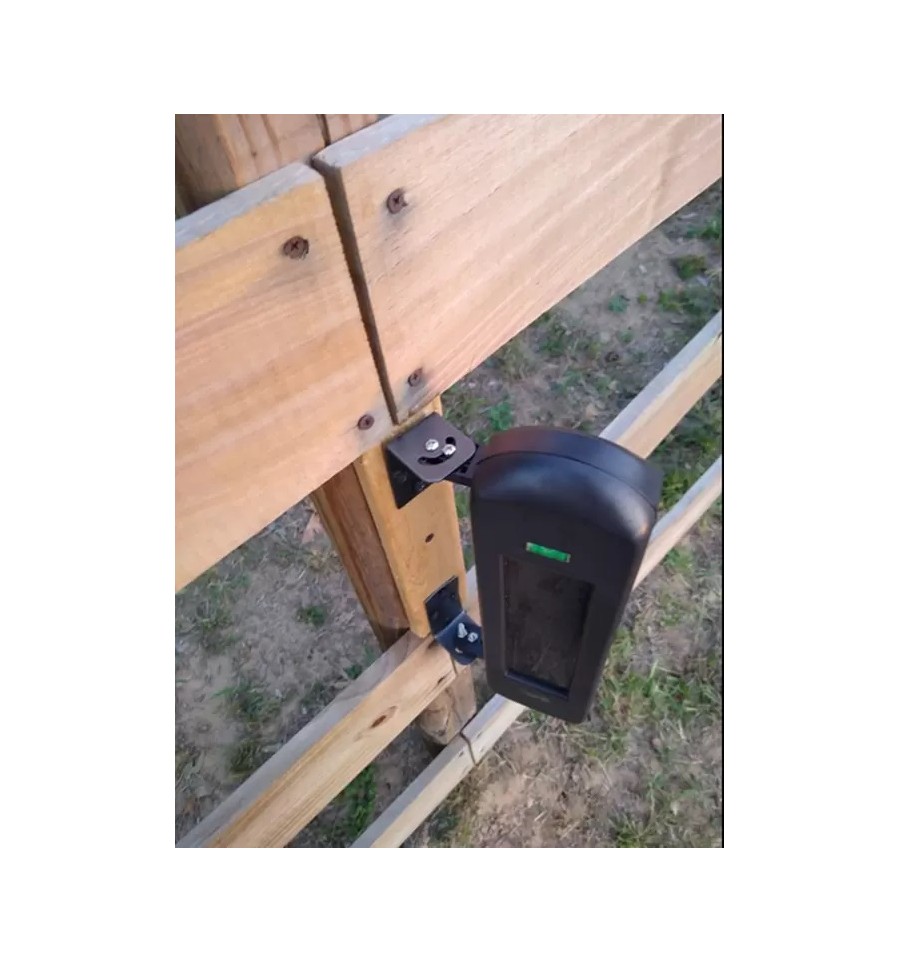

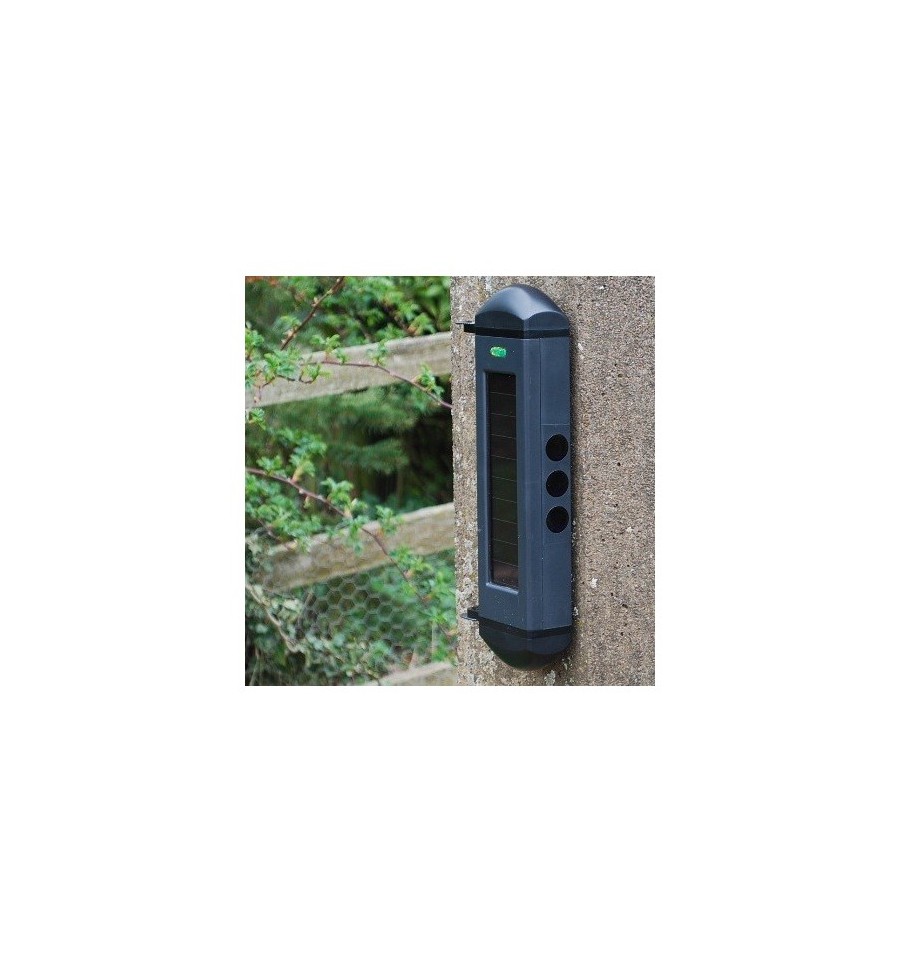

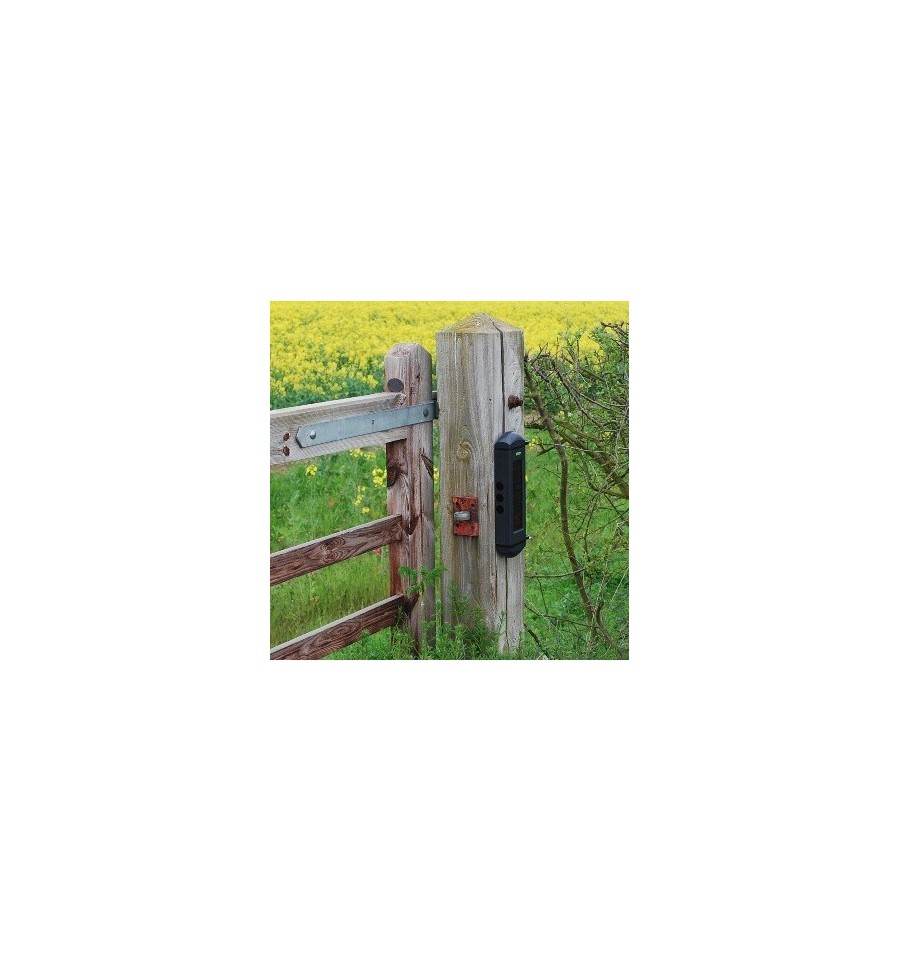

• Mounting Methods: Wall or Pole.
• Detection Range: 300 ft.
• Transmission Range: 2700 ft (line of sight).
• Frequency: 433 Mhz.
• IP Rating: IP66.
• Distance Between Detection Beams: 2.2".
• Number of Beams: 1 set.
• Charging Port: 9 - 12v DC (500 m/A to 1 amp).

Dialler:

• 95 Wireless Channels.
• Contacts up to 9 x Key-holders by Cell Phone & SMS (optional).
• Built in Siren (adjustable duration from 1 to 999 seconds).
• Power Supply: Plug in Transformer.
• Transformer Rating: 12v DC 1 amp (max 24v).
• Back up Battery: Yes.
• Easy to Program (using the built in keypad and LCD Screen or APP).
• Easy to Operate using:
  • Remote Control.
  • Built in Keypad.
  • Built in Timer.
  • Text Message.
  • APP.
• Many Modes of Operation including:
  • Full Arm.
  • Home Arm.
  • Entrance.
  • On Site.
  • Outer.
  • Inner.
  • 24 Hour (with Siren).
  • 24 Hour (silent).
  • Not in Use.
  • Doorbell.
• 2 x Wired Input Zones.
• Built in Power Failure (adjustable 0 - 99 minutes).
• Built in Temperature (optional).
• Optional Wireless External Sirens.
• 2 x way Communication.
• Log (history) Logging.
• Low Battery Warning (of accessories).
• 12 Language Menu (including English, French, German, Italian, Dutch & Spanish).
• Size: 7.5" x 5" x 1".
• GSM Frequency: Quad-band 850/900/1800/1900 Mhz.
• 3G: Yes (if selected).
• Wireless Accessories Frequency: 433.92 Mhz.
• Digital Output: N/O or N/C Dry Contacts (3A/240 AC).
• Sim Card Size: Standard Size.
• Built in Temperature Monitor: Yes (-4 - 140 Fahrenheit).
• Back Up Battery: 3.7v-900mAH Li-ion Rechargeable.
• Colour: White.
• Push Buttons: Touch.
• Android APP: Yes.
• iOS: Yes.
• Standby Current: 30 m/A.

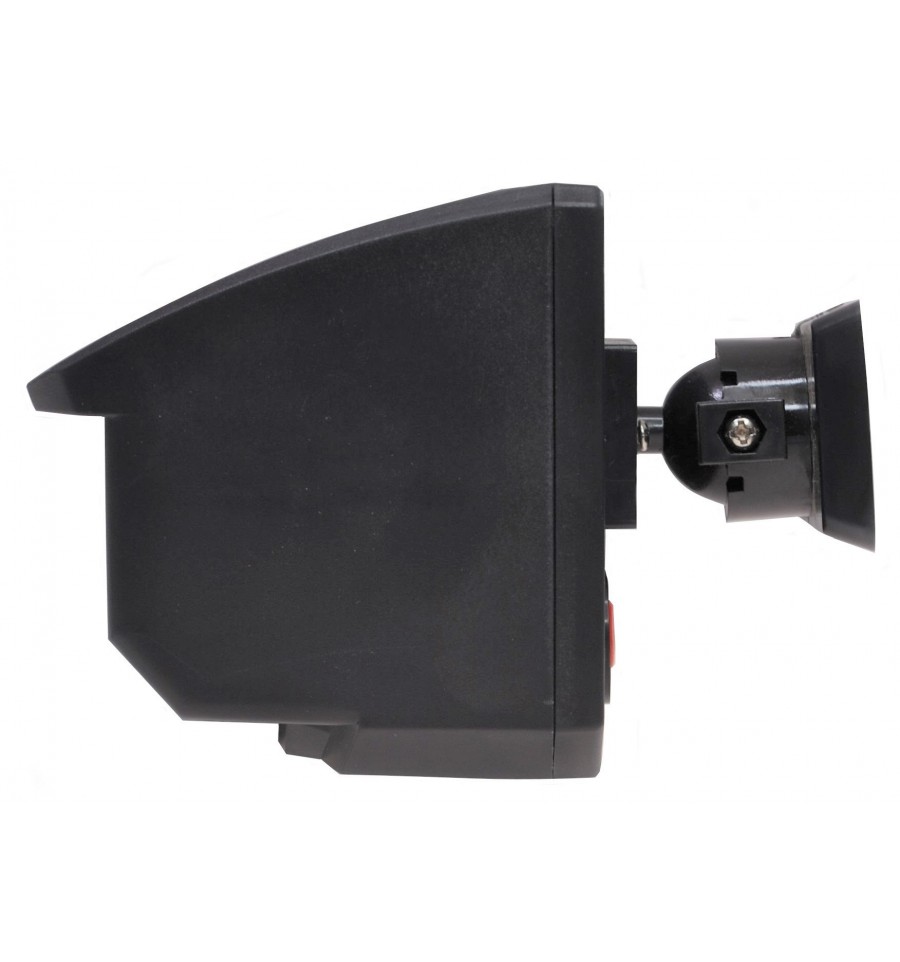

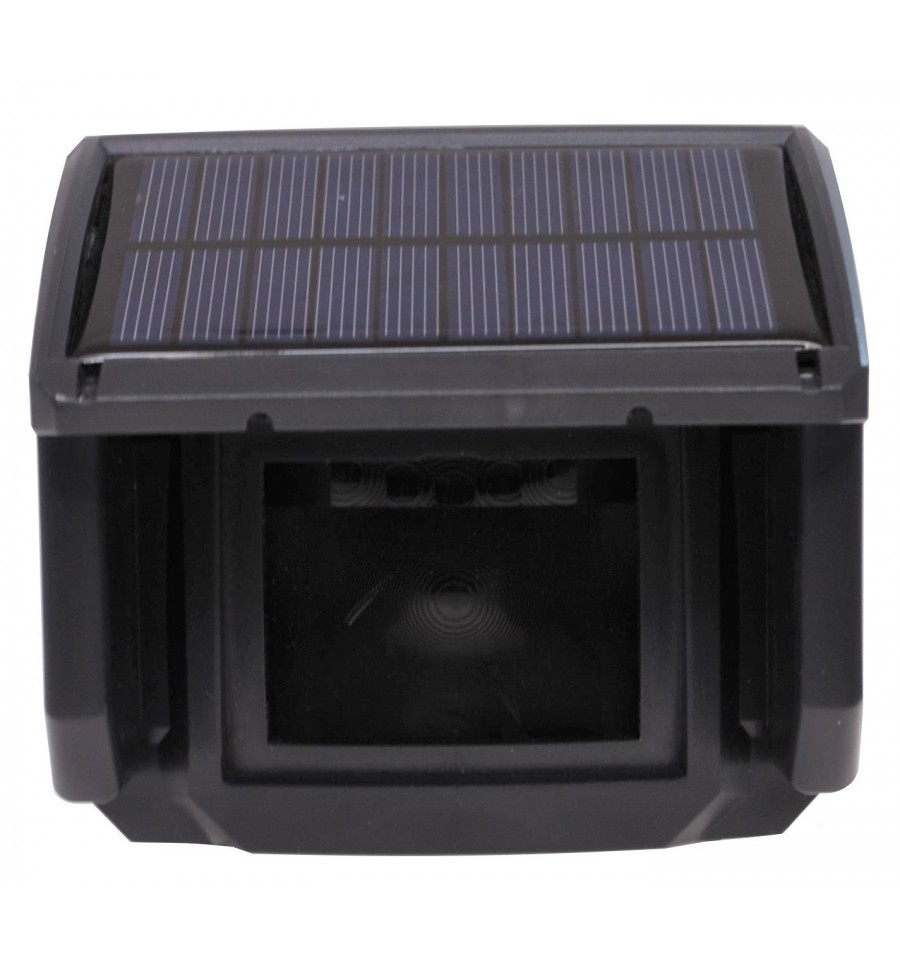

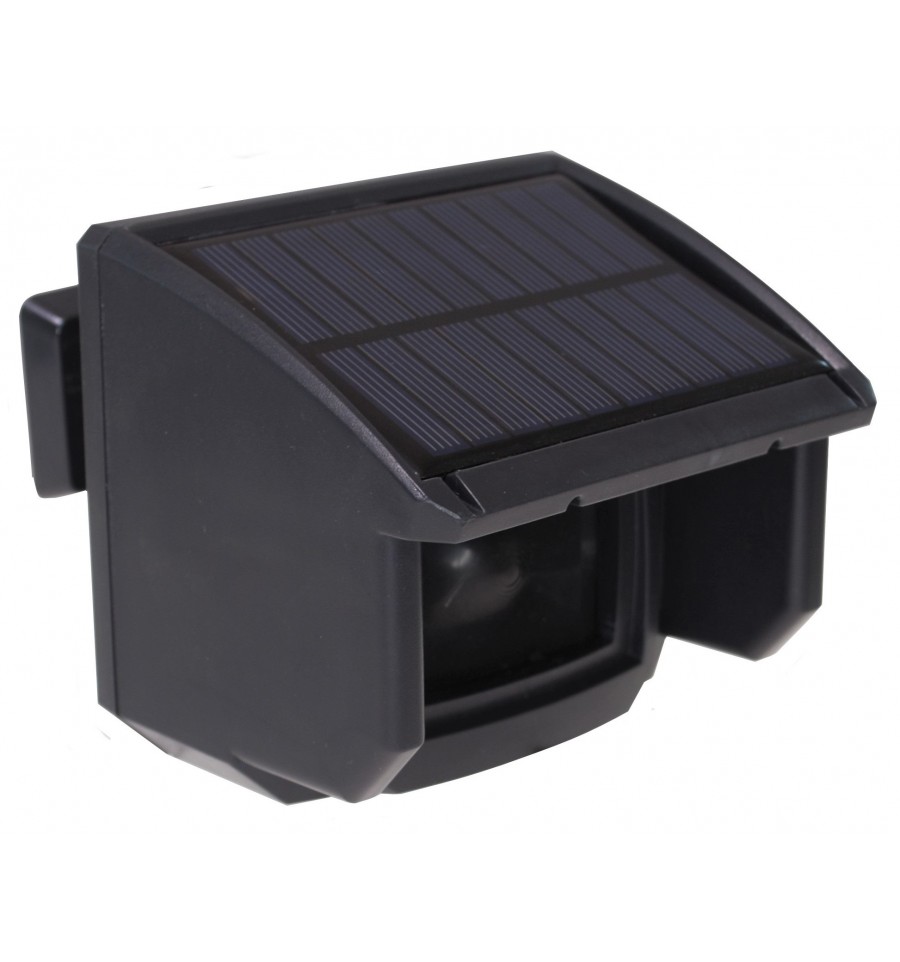

PIR's:

• Weatherproof: Yes.
• Detection Range: 45 ft (3 levels of adjustment).
• Wireless Range: 1800 ft (line of sight).
• Power Supply:  LiFePO4 battery, 3.3V 500mAh.
• Primary Charging Method: Top Mounted Solar Panel.

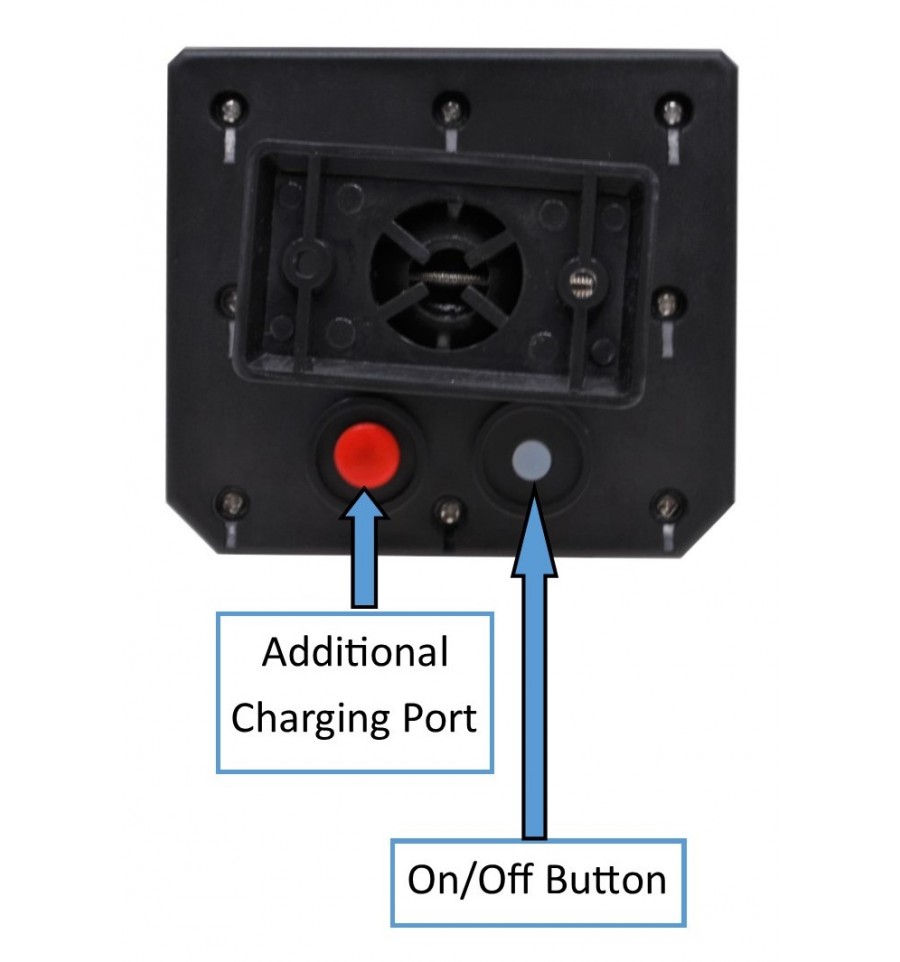

• Backup Charging Method: USB Cable (supplied with no plug).
• Colour: Black.
• Size with Mounting Bracket: 5" x 4" x 4".
• Works with multiple Receivers: Yes.

Siren:

• Current Rating: 310 mA.
• Voltage: 12v DC.
• Length: 4" ft.
• Width: 3.8".
• Sound Level: 118 dB.
• Colour: Black.
• Tone: 6-tone.
• Cable Length: 9 ft.
