Sale!  DA600 Wireless Beam Driveway Alarm

1B-60 Wireless Driveway Beam Alarm including 4-channel Receiver with adjustable Outputs



1B-60 Wireless Driveway Beam Alarm including 1 x set of Solar Beams (for accurate detection) & 1 x Plug in Chime Receiver with adjustable Alarm Outputs.

More details


(excluding all taxes)



100% Secure Payment
97% Customer Satisfaction
Technical Help-line
30 Day Money Back Guarantee

1B-60 Wireless Driveway Beam Alert including:

  • 1 x set of Solar Beams (for accurate detection).
  • 1 x 4 Channel Wireless Chime Receiver with adjustable Alarm Outputs (12v DC & N/O or N/C Relays).

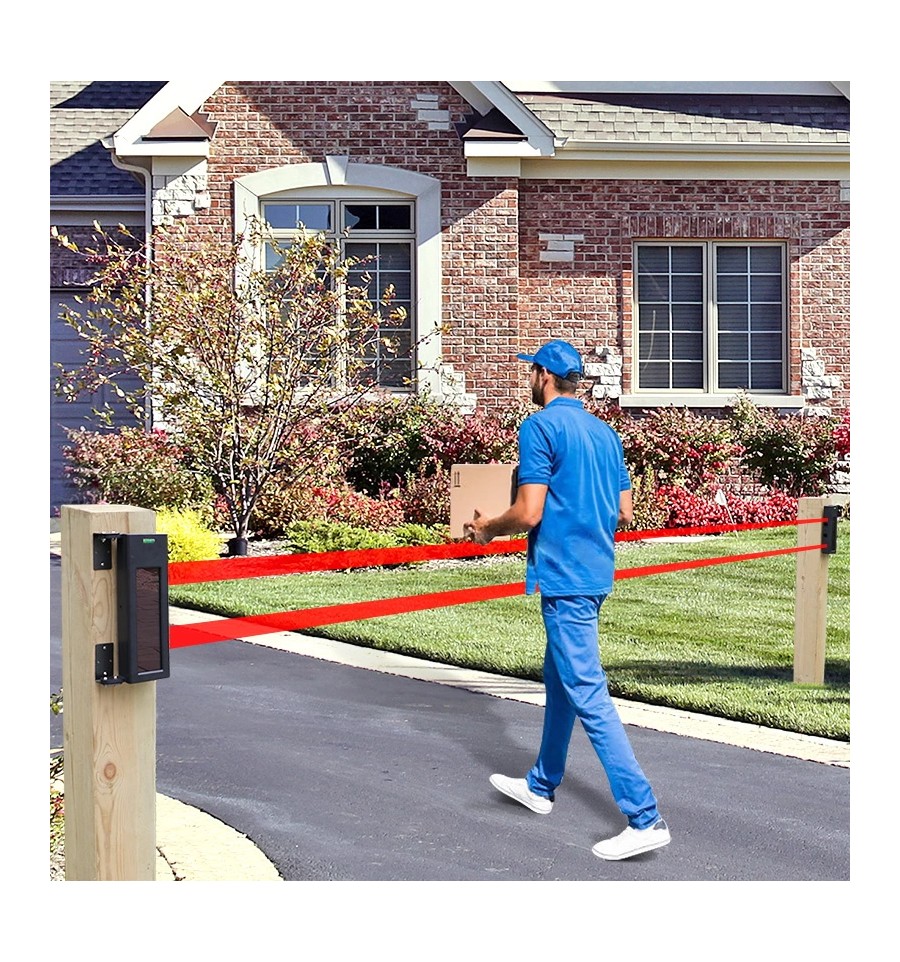

Ideal for being informed to the presence of a Visitor or Intruder (people & vehicles) around your Driveway & Garden.

How it Works:

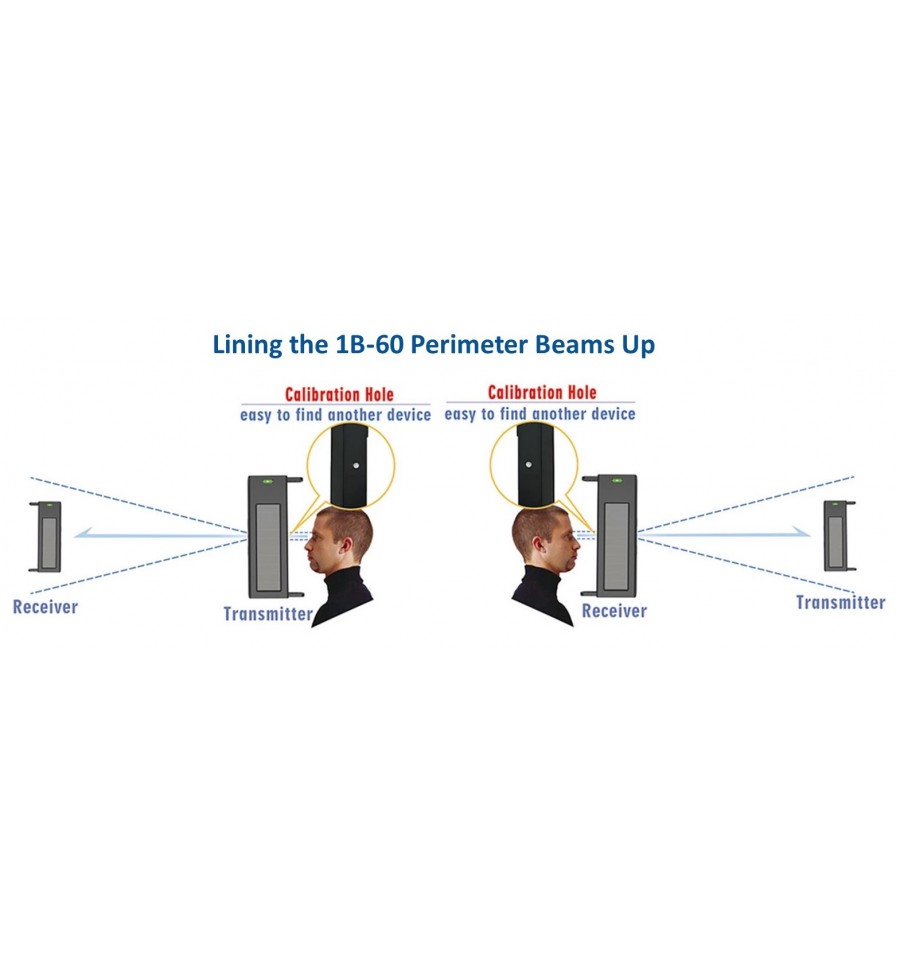

The Beams are mounted up to 180 ft apart (in a position that they are looking at each other), they can be up to 1200 ft away from the Plug in Receiver, which equates to approximately 600 ft in most applications.

This distance can be at least doubled by adding one or more Signal Repeaters.

When a Person or Vehicle passes through the Beams the Internal Receiver will chime at the chosen Volume & Chime settings notifying you to the presence of the Visitors or Intruders together with operating any Alarm Outputs that are being used.

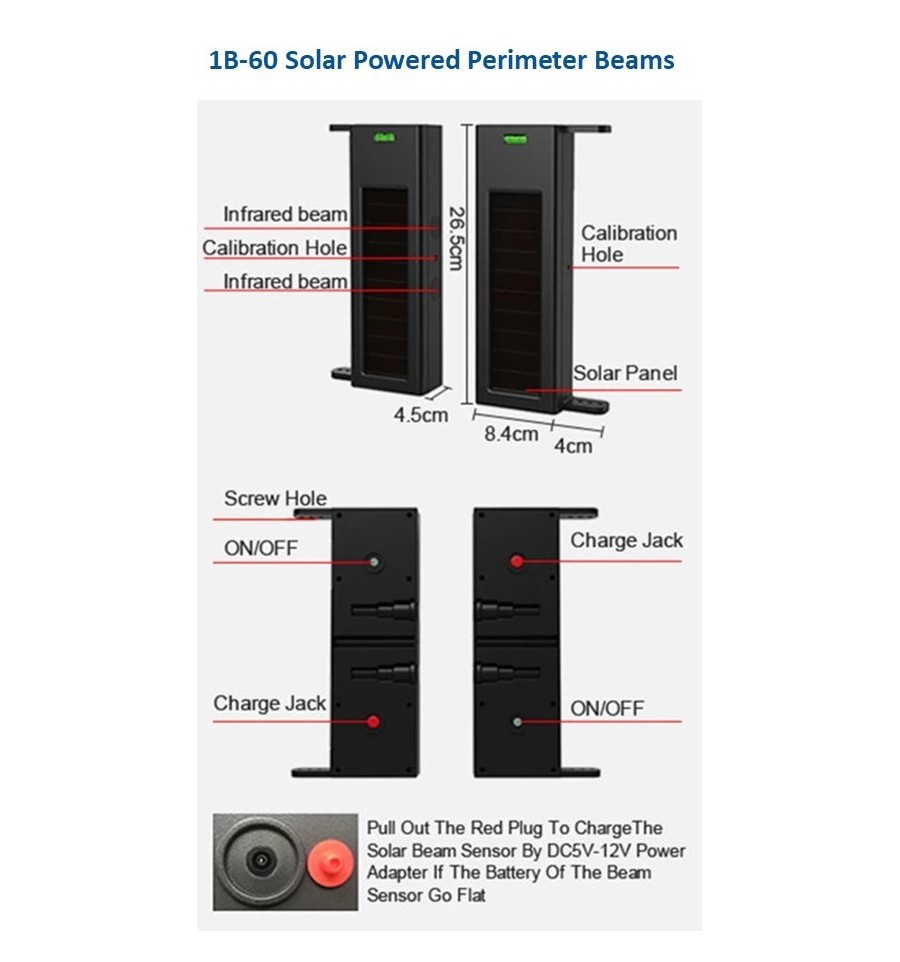

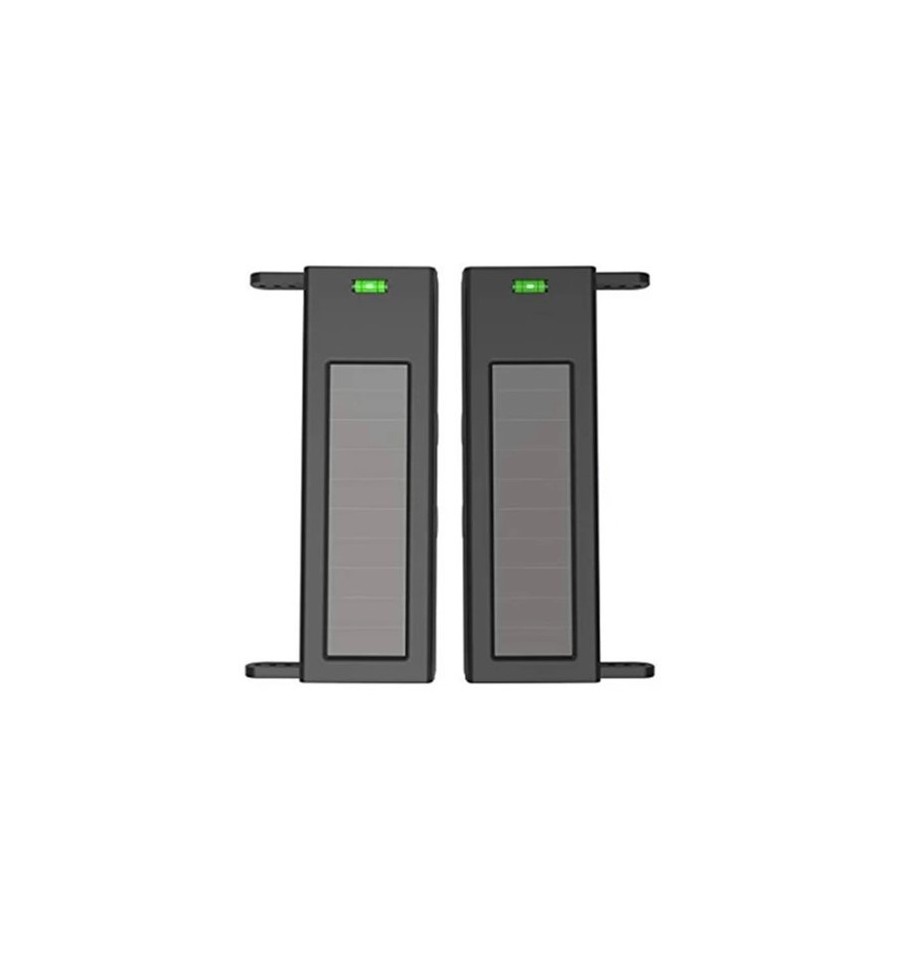

1B-60 Perimeter Alarm Beams

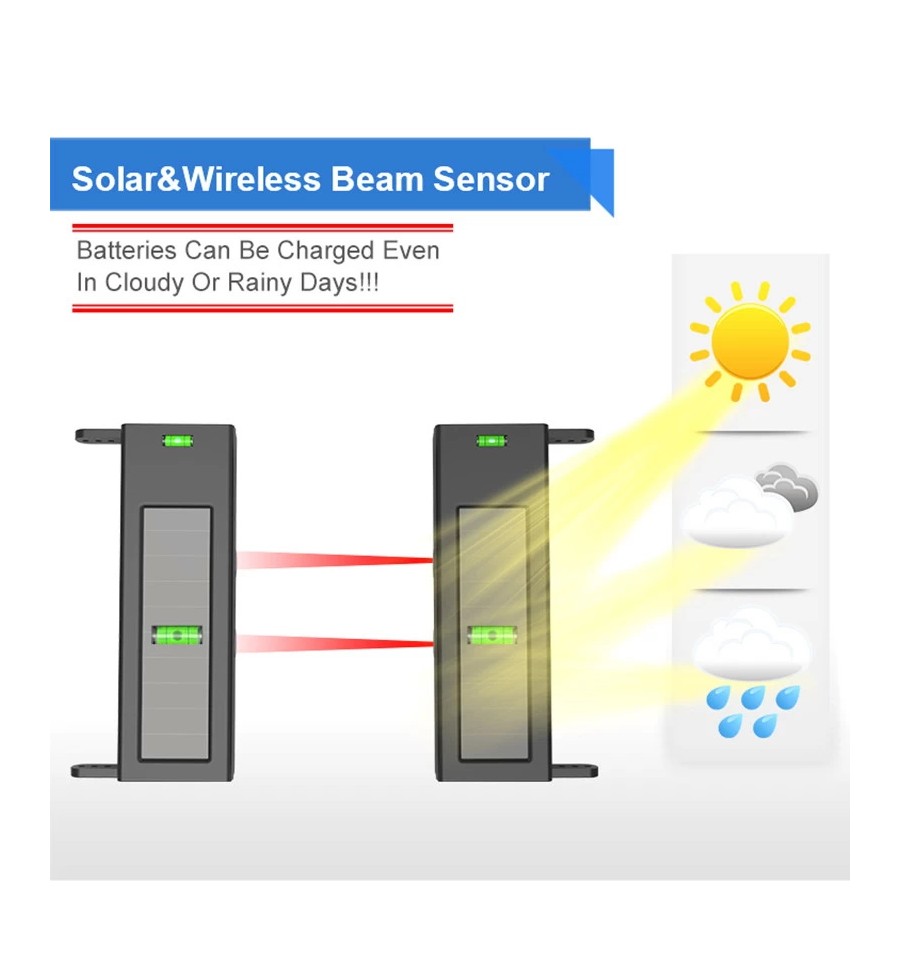

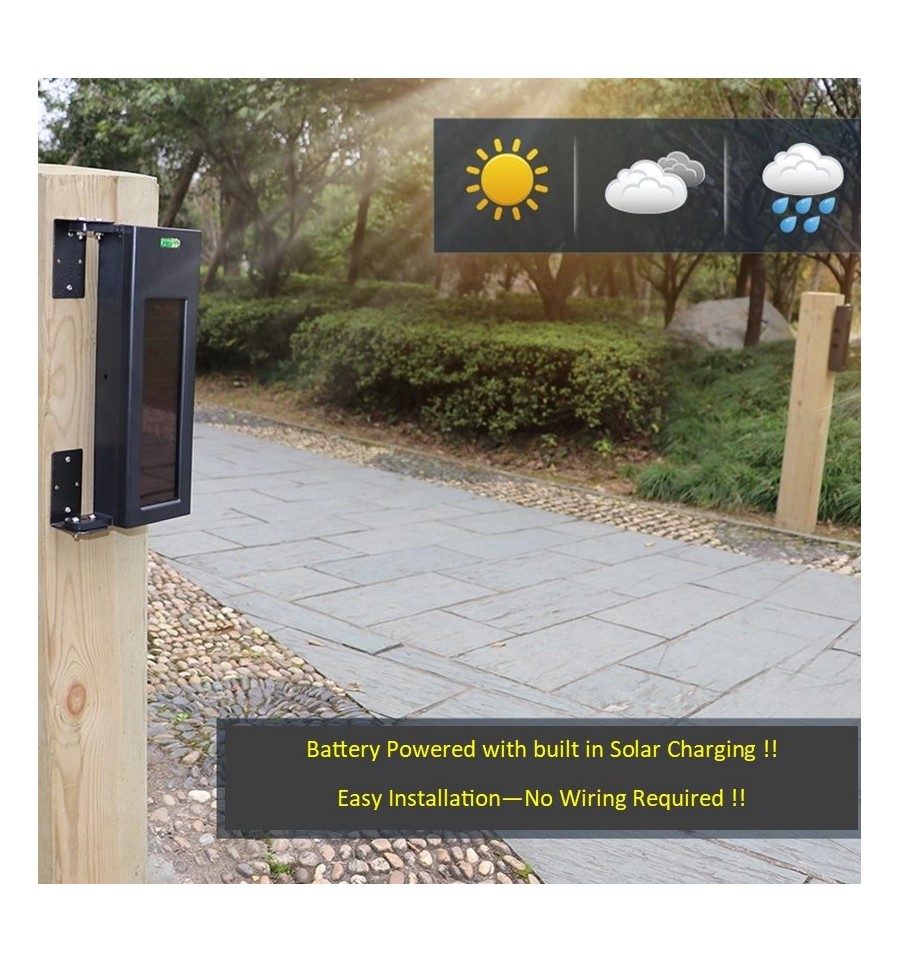

The Beams have a built in Battery which are charged & maintained by the built in Solar Panels during daylight hours.

Charging the 1B-60 Laser Beams

They are also supplied with an additional Charging Port which can be used to give the Beams a boost charge should you experience a lengthy duration of low sun light, or perhaps one of the beams needs to be fitted into a slightly covered location, alternatively you can add an additional Solar Panel (004-2990) which can be positioned in a more productive location or direction.

The Beams can be mounted up to 180 ft apart from each other and create a very accurate and reliable detection pattern across your Drive or Garden.

They consist of a Dual set of Detection Beams which both need to be breached at the same time for an activation, this prevents false alarms from small animals, insects & debris.

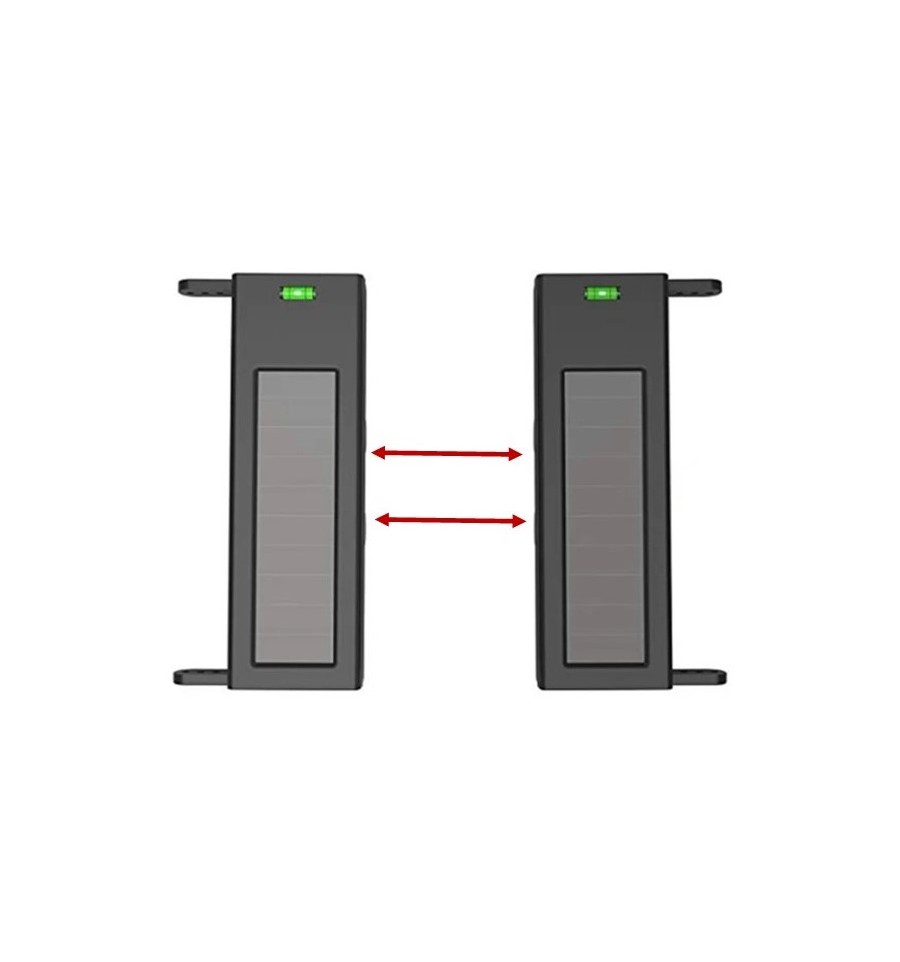

Dual Detection Beams

An incredible additional 128 sets of Beams, PIR's, Door Contacts, Push Buttons can be added to this Driveway & Garden Alarm system, click here to view.

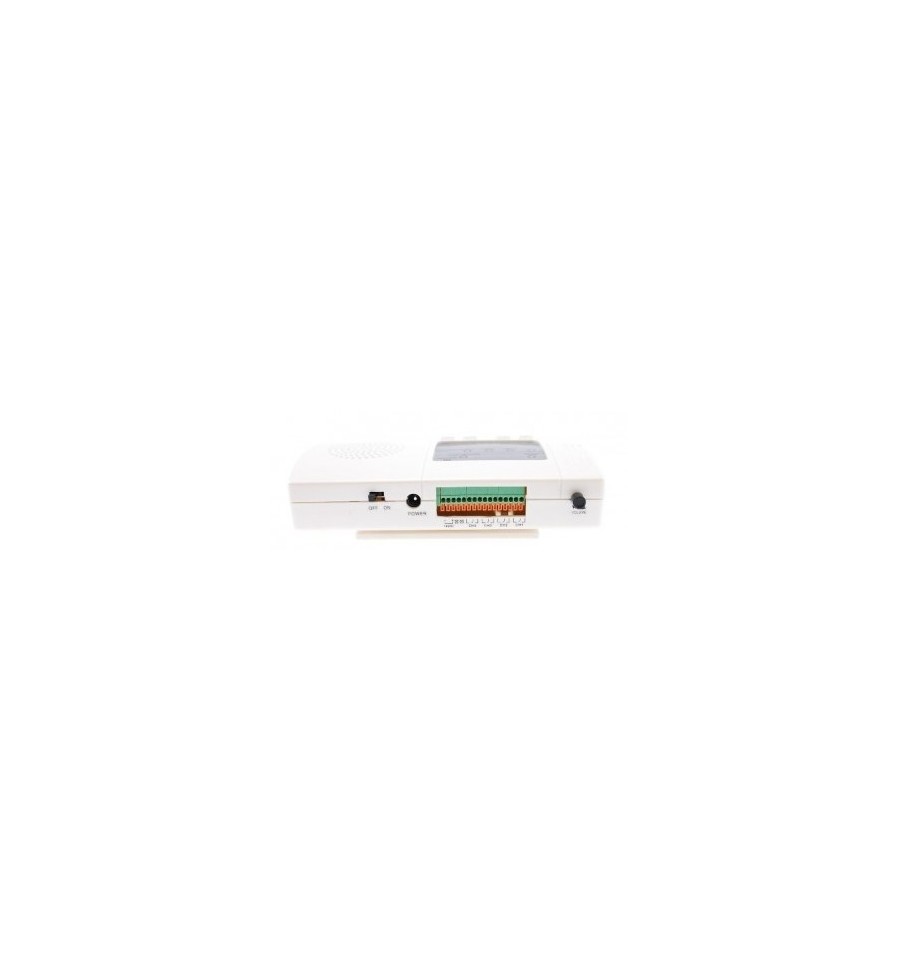

The 4 channel Wireless Receiver plugs into a wall socket (transformer supplied) and will activate the chosen sound whenever the set of Beams detects movement.

It has volume control (from zero to approximately 90 decibels) together with 4 x Output Relays (N/O & N/C) & 1 x 12v DC Output (for use with Sirens, Flashing Strobes & Auto-Diallers).

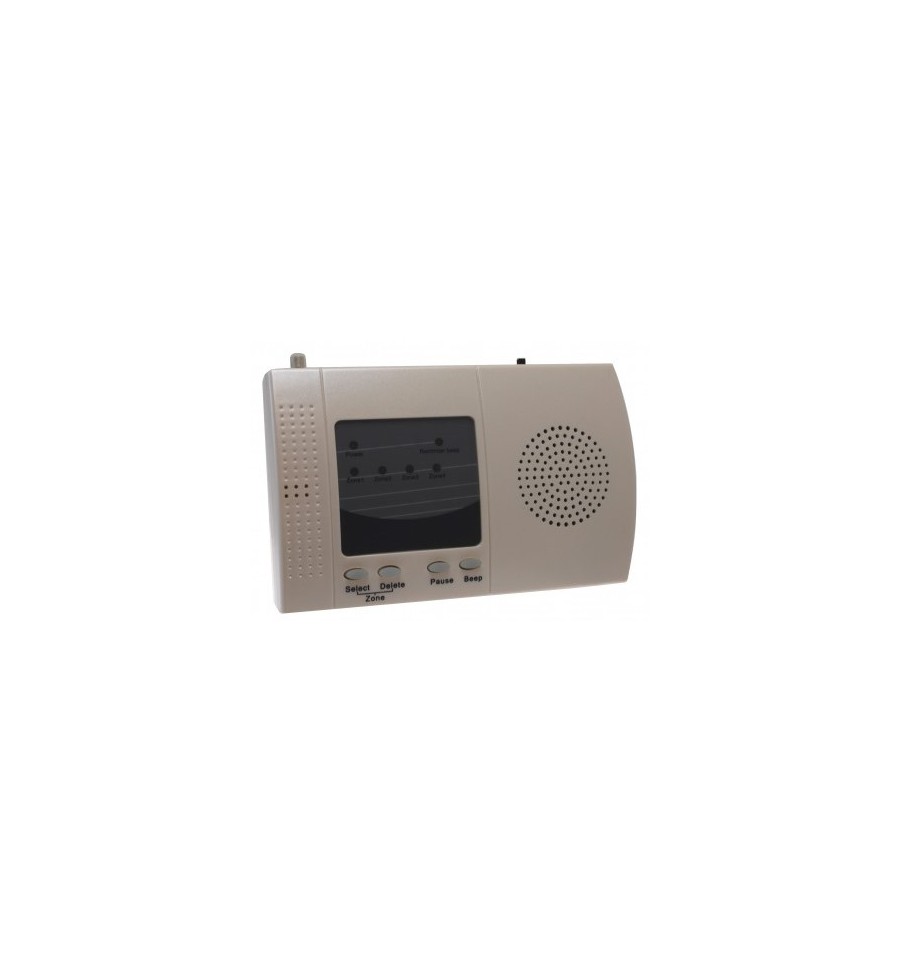

4 Channel Driveway Alarm Receiver with Outputs

Additional ReceiversOutdoor Sirens & Pagers (no limit) can be added to this Alert system should you want to be informed in multiple rooms.

This can be used as a simple but accurate Driveway & Perimeter Alarm or used as a base Alarm to build a comprehensive Alarm, please Contact Us should need Advice.

Need Advice on choosing the best System for your personal application or Help after you have Purchased one, then please contact

us by:

Telephone: We are still available in the old fashioned way, give us a call on 01604 589414 or 01604 758438 to talk to a real person, we are happy to give you Friendly, No Obligation advice (lines open 8am to 5.30pm Monday - Thursday, 8am to 5pm Friday).

Email: If you don't have time to call us, then send us an email to

Personal Visit: Some customers find it far easier to come and meet us for a Friendly, No Obligation Consultation (click here for full details).

  • 1 x Plug in Wireless Receiver.
  • 1 x 1B-60 Solar Wireless Beam Set & Brackets.
  • 1 x 2-pin Plug in U.S Transformer.


  • Receiver Size: 6.2" x 4.2" x 1.5".
  • Power Supply: 15v DC 1amp (plug in 2-pin transformer).
  • ON/OFF Button: Yes.
  • Adjustable Volume Control: Yes.
  • Available Channels: 4.
  • Max sets of Beams per Channel: 32.
  • Maximum sets of Detectors per Receiver: 128.
  • Output Voltage: 12v DC.
  • Output Voltage Duration: 1, 10, 60 second & 5 minutes.
  • Built in Chimes: Yes (one per channel).
  • Reminder Bleep: Yes (if programmed).
  • Exit Delay: Yes 5 minutes (if programmed).
  • Frequency: 434.6 MHz.
  • Standby Current: 20 mA.
  • Alarm Current: 180 mA.
  • Relay Rating: 24v DC or 120v AC (2 amp).
  • Wireless Working Range: Up to 2700 ft line of sight (depending on which sensor or beam is being used).


  • Beam Size: 10 1/2" x 3 3/8" x 1 3/4".
  • Power Supply: Re-chargeable AA Batteries.
  • Charging Method: Built in Solar Panels.
  • Mounting Methods: Wall or Pole.
  • Detection Range: 0 - 180 ft.
  • Transmission Range: 1200 ft (line of sight).
  • Frequency: 433 Mhz.
  • IP Rating: IP66.
  • Distance Between Detection Beams: 60mm.
  • Number of Beams: 1 set.
  • Charging Port: 9 - 12v DC (500 m/A to 1 amp).
  • Mounting Brackets: Fence/Wall or Pole.
  • Colour: Black.
