1B-60 Beam Alert with Chime Receiver & Doorbell

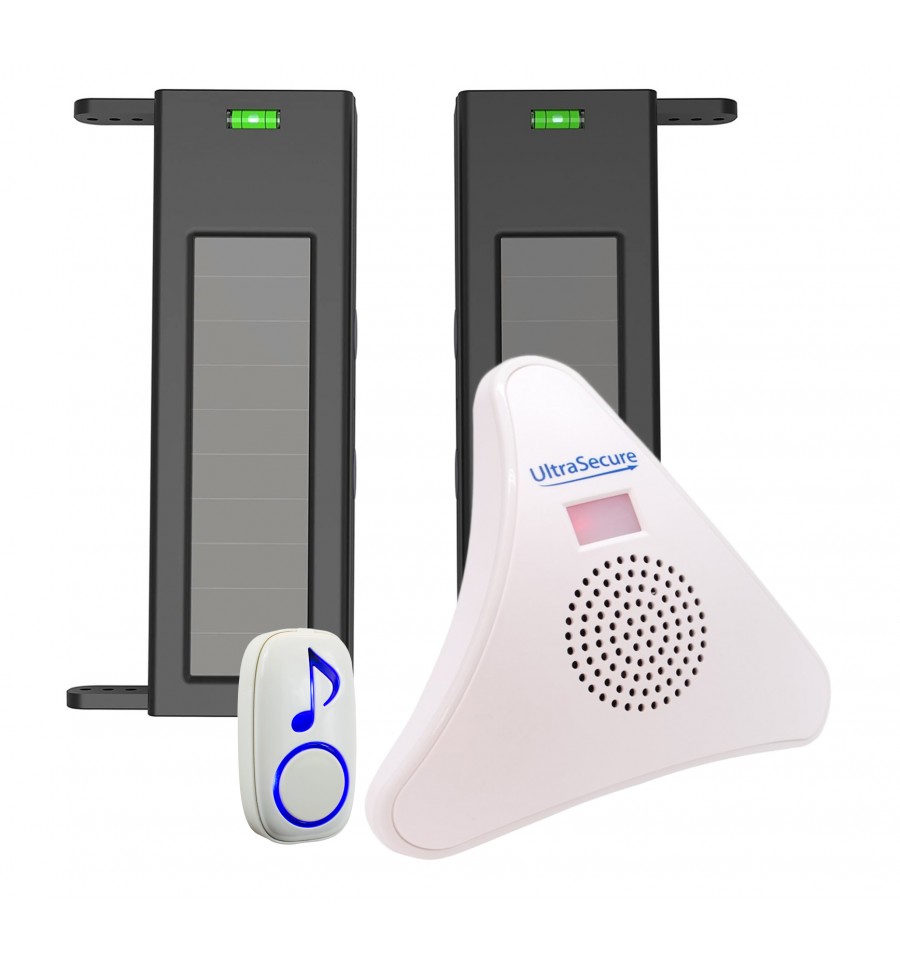

1B-60 Solar Powered Wireless Driveway & Garden Beam Alert supplied with:

• 1 x set of 1B-60 Wireless Solar Beams.
• 1 x Wireless Chime Receiver (for customers only wanting a simple chime inside the house).
• 1 x Wireless Doorbell Push Button.

This allows customers to monitor & protect their Perimeter using the Long Range Beams together with having a standard Doorbell at the property.

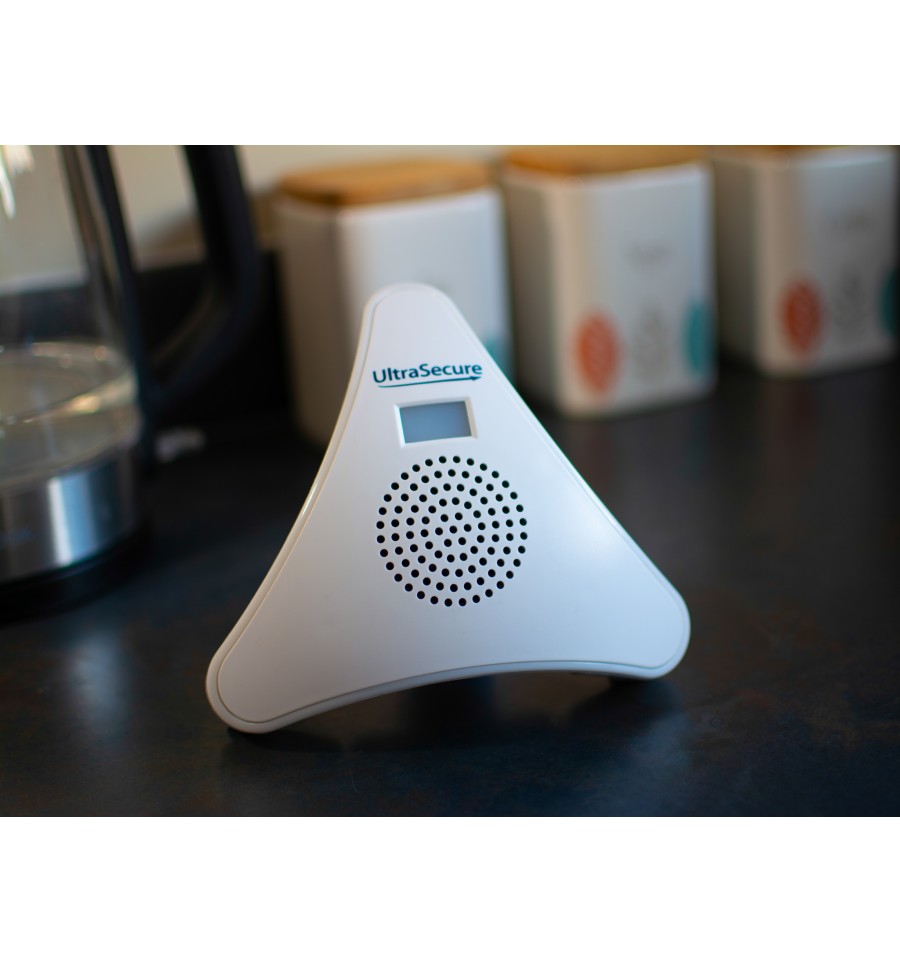

Receiver:

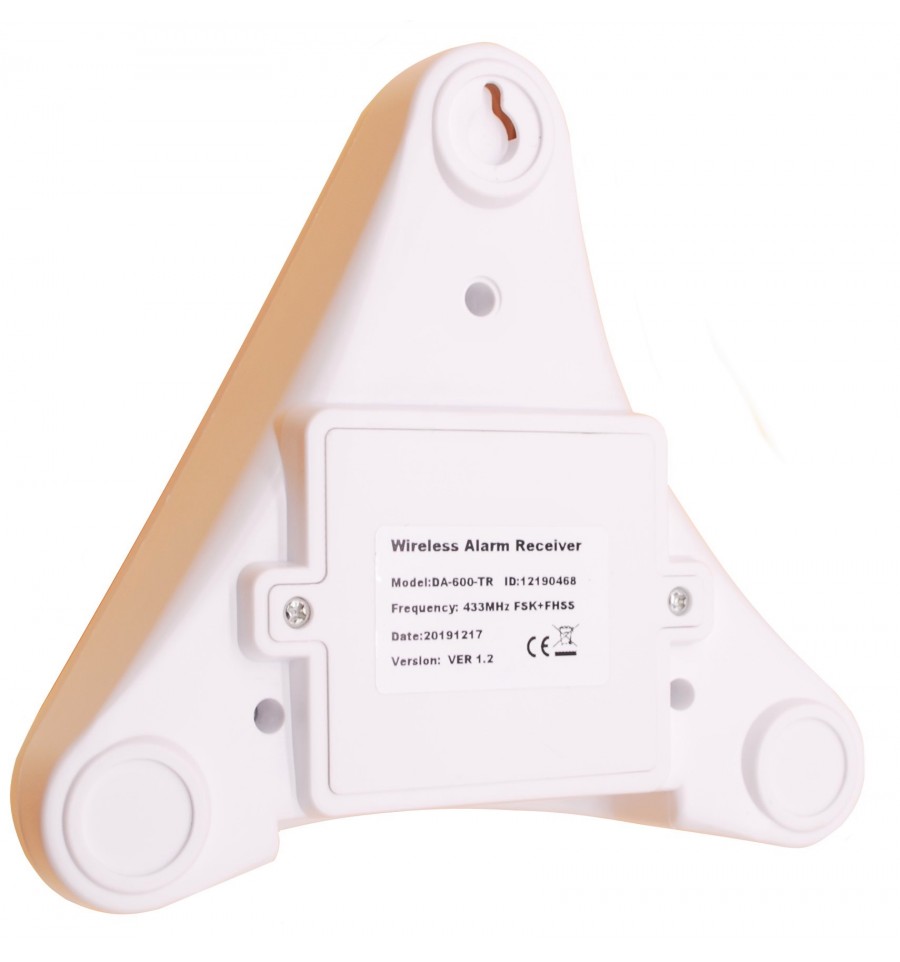

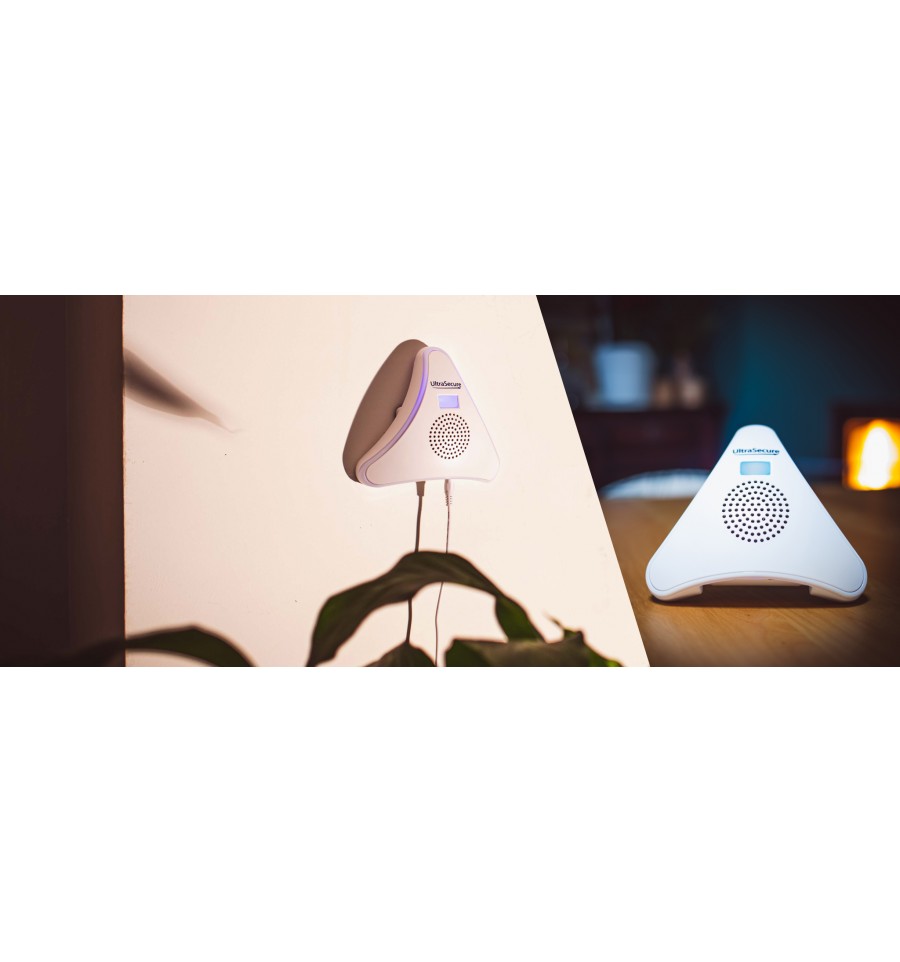

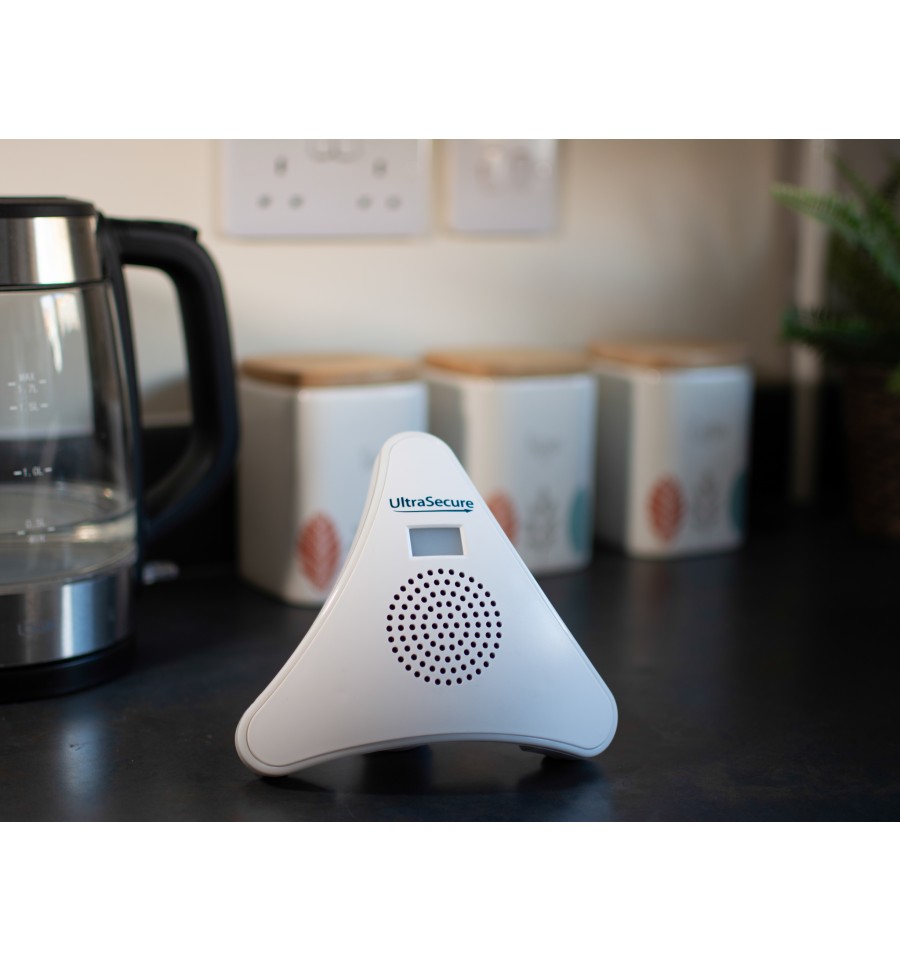

The DA600-TR Wireless Receiver can be Desk or Wall mounted and has the option of Battery Backup.

Multiple Receivers can be used (no limit) and can also be used in conjunction with the standard Beam Receiver (004-2790).

The Wireless operating range between the Beams & Receiver is around 1200 ft (line of sight), which equates to around 600 - 900 ft in most applications, more than enough for many domestic Gardens, Entrances & Driveways.

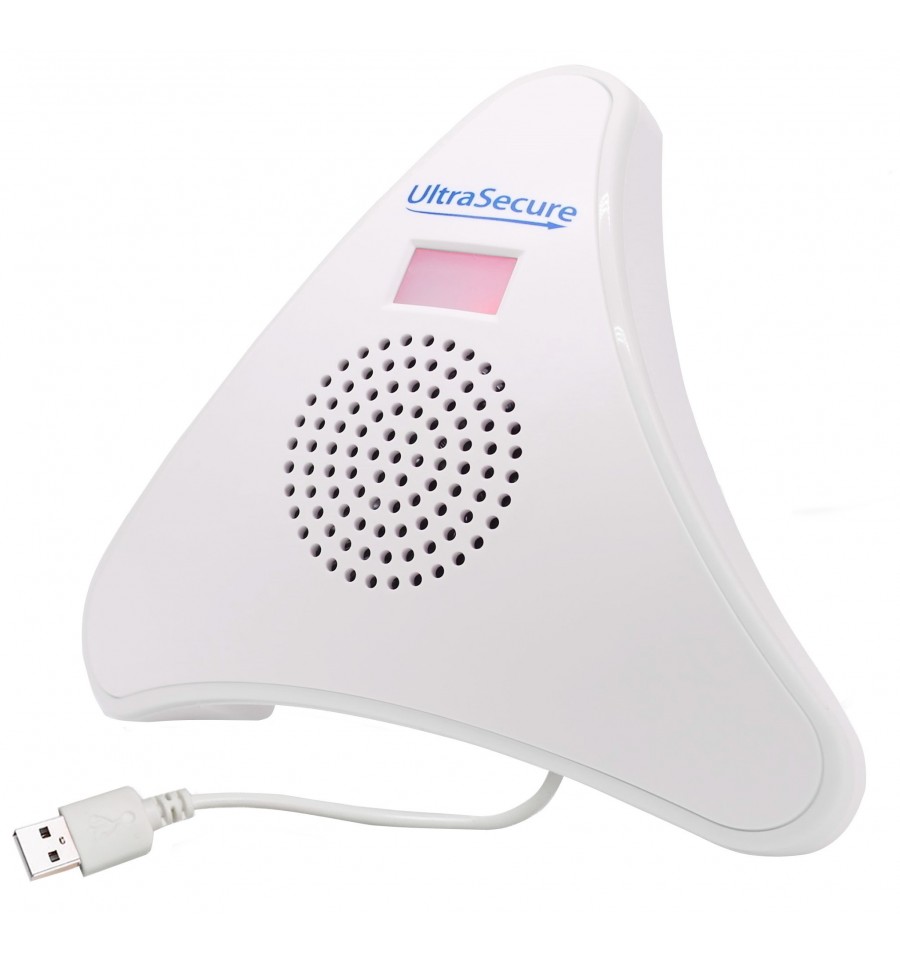

The Wireless Receiver is supplied with a USB Cable & 2-pin Plug and will chime whenever a PIR detects movement.

The Receiver has an illuminated Display Screen which identifies when the Receiver is ON and when it is in Pairing Mode.

It has volume control (4 levels) and 35 different chimes to choose from, allowing you to have a different tune for different PIR's.

The Receiver can be used with up to 32 sets of Beams, PIR's & Door Contacts.

Need Advice on choosing the best System for your personal application or Help after you have Purchased one, then please contact

us by:

Telephone: We are still available in the old fashioned way, give us a call on 01604 589414 or 01604 758438 to talk to a real person, we are happy to give you Friendly, No Obligation advice (lines open 8am to 5.30pm Monday - Thursday, 8am to 5pm Friday).

Email: If you don't have time to call us, then send us an email to info@ultrasecuredirect.com.


Personal Visit: Some customers find it far easier to come and meet us for a Friendly, No Obligation Consultation (click here for full details).

• 1 x set of 1B-60 Beams & Mounting Brackets.
• 1 x Chime Receiver (004-5100) with USB Cable & Plug.
• 1 x Doorbell Push Button & Battery.
• 1 x Rubber Cover Kit.

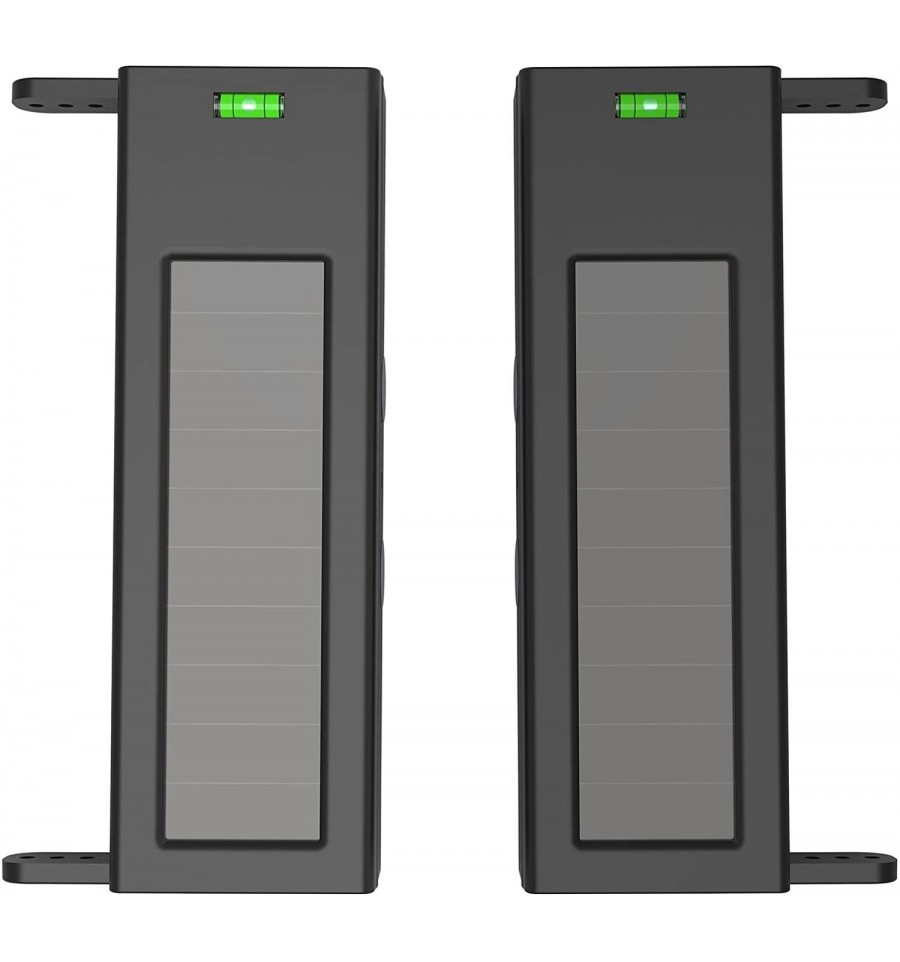

• Beam Size: 10.4" (H) x 3.3" (W) x 1.7" (D)
• Power Supply: Re-chargeable AA Batteries.
• Charging Method: Built in Solar Panels.

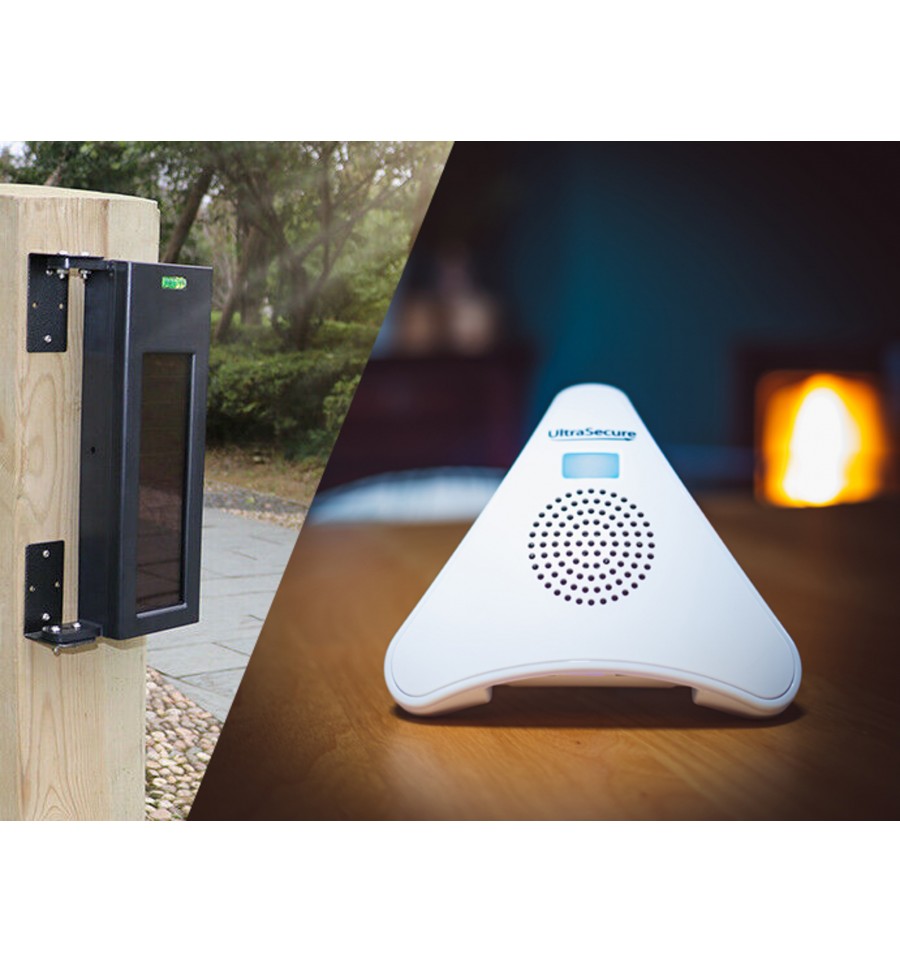

• Mounting Methods: Wall or Pole.
• Detection Range: 0 - 180ft
• Transmission Range: 1200 - 1300 ft  (line of sight).
• Frequency: 433 Mhz.
• IP Rating: IP66.
• Distance Between Detection Beams: 60mm.
• Number of Beams: 1 set.
• Charging Port: 9 - 12v DC (500 m/A to 1 amp).
• Mounting Brackets: Fence/Wall or Pole.
• Colour: Black.

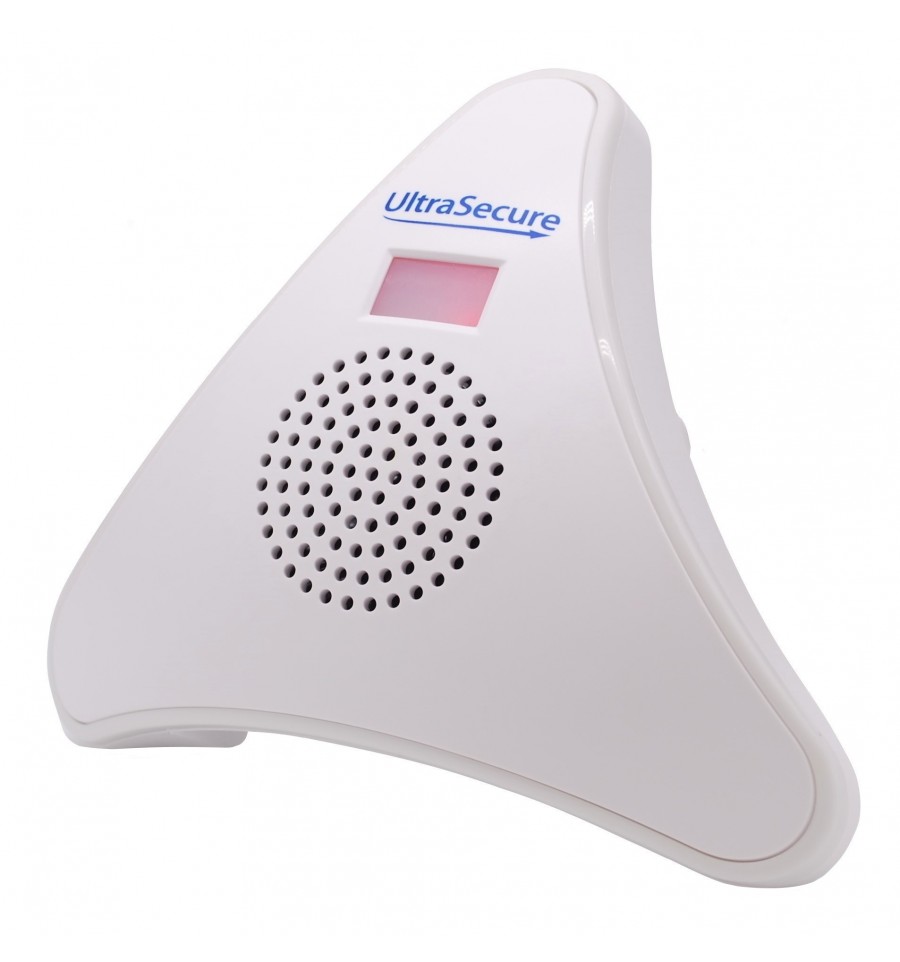

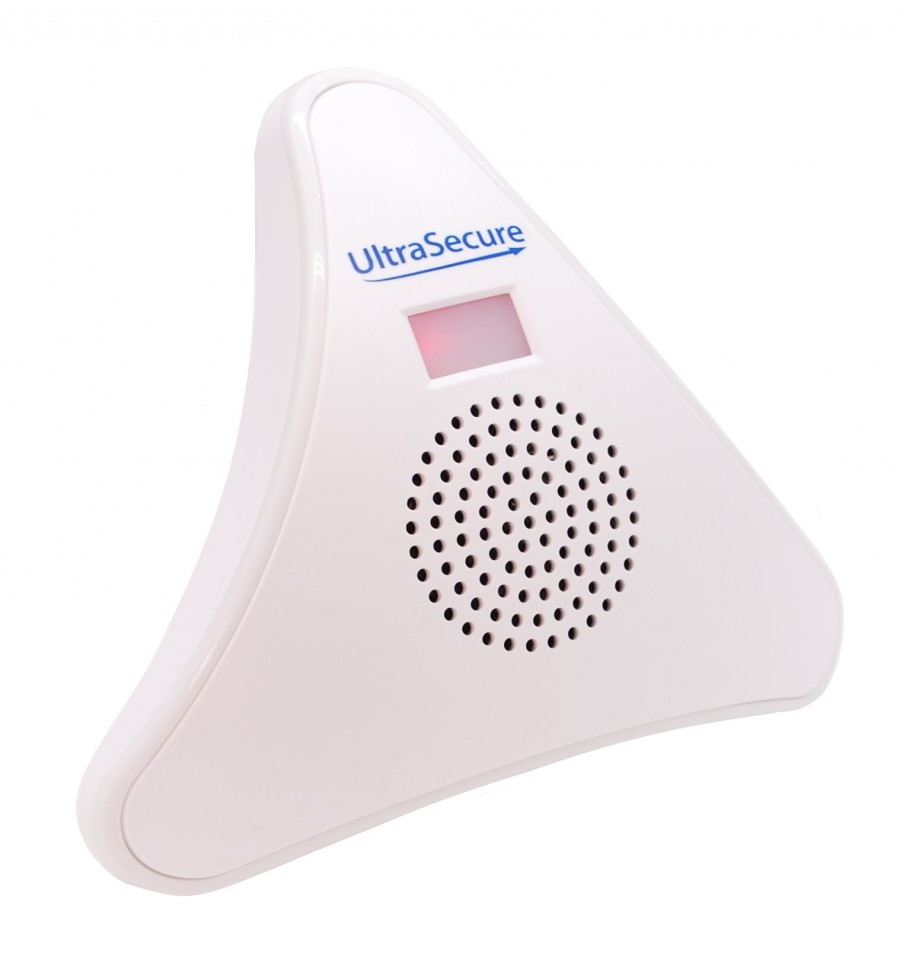

Receiver:

• Power Supply: USB Cable & Plug.

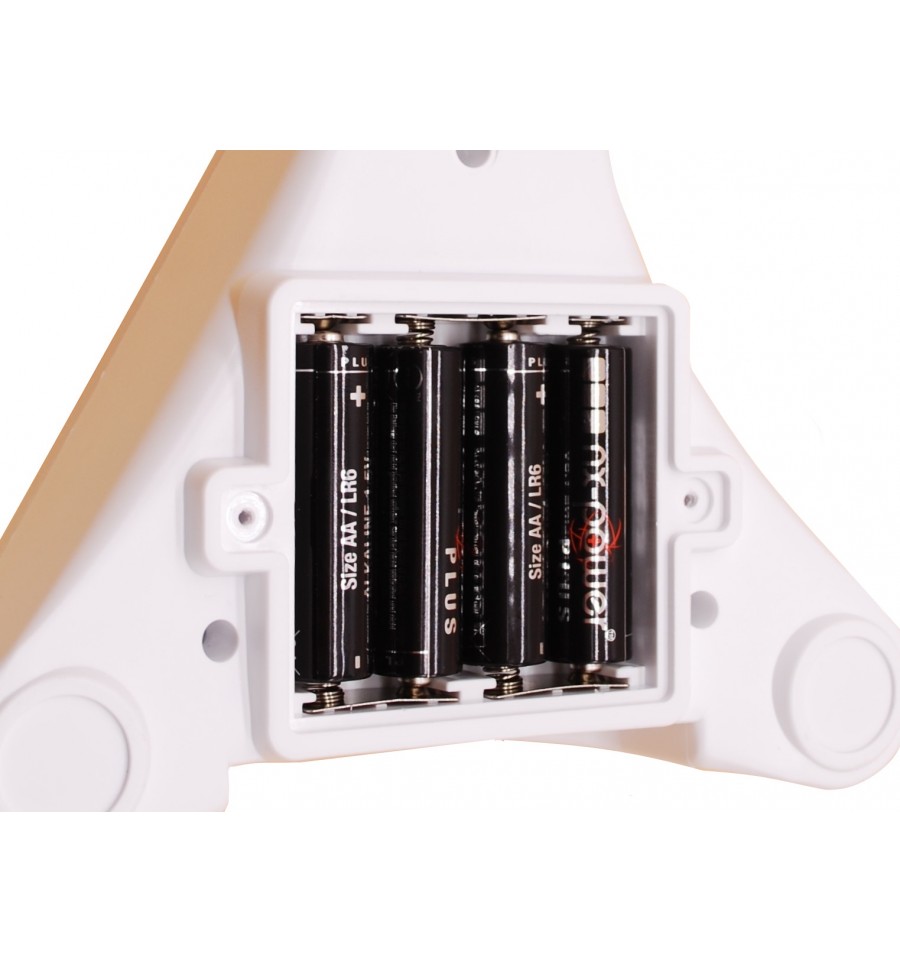

• Battery Backup: Yes (4 x AA Batteries, not supplied).
• Volume Control: Yes (4 levels).
• Display Screen: Yes (identifies when the Receiver is ON, or when in Pairing Mode).
• Chimes: 35.
• Wireless Range: 2900ft (line of sight).
• Can work with additional PIR's: Yes (maximum 32).
• Colour: White.
• Size: 5.9" x 5.9" x 5.9"

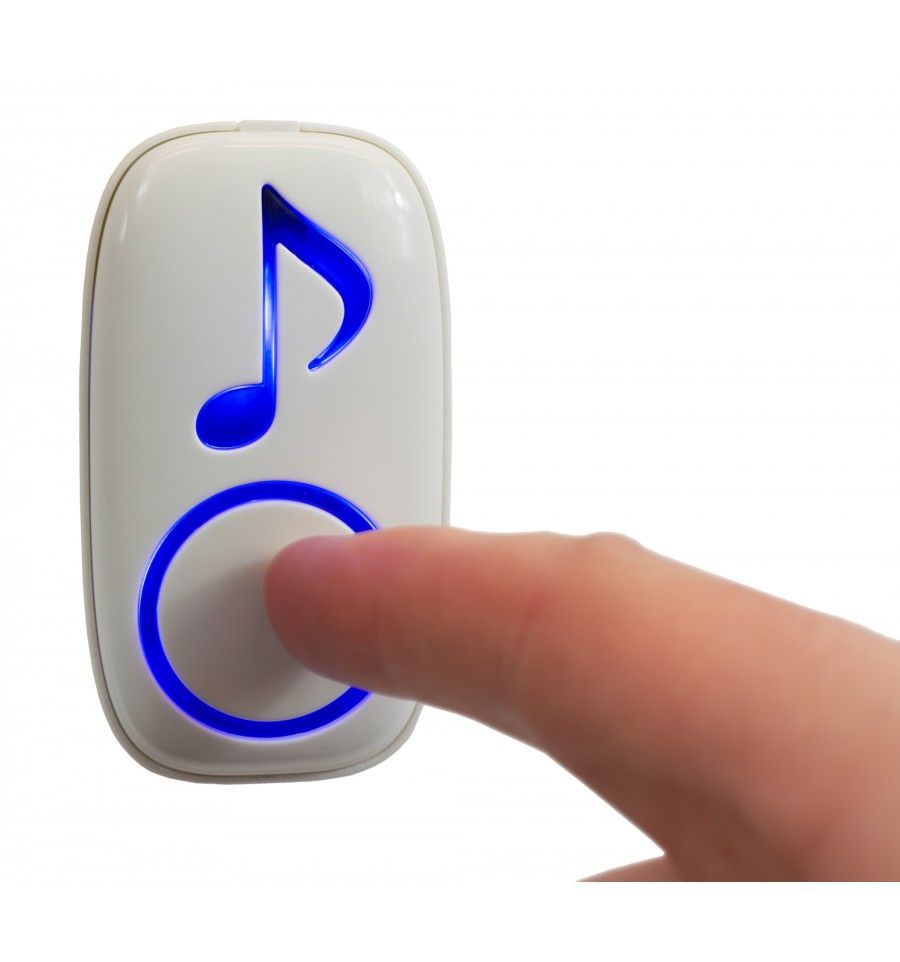

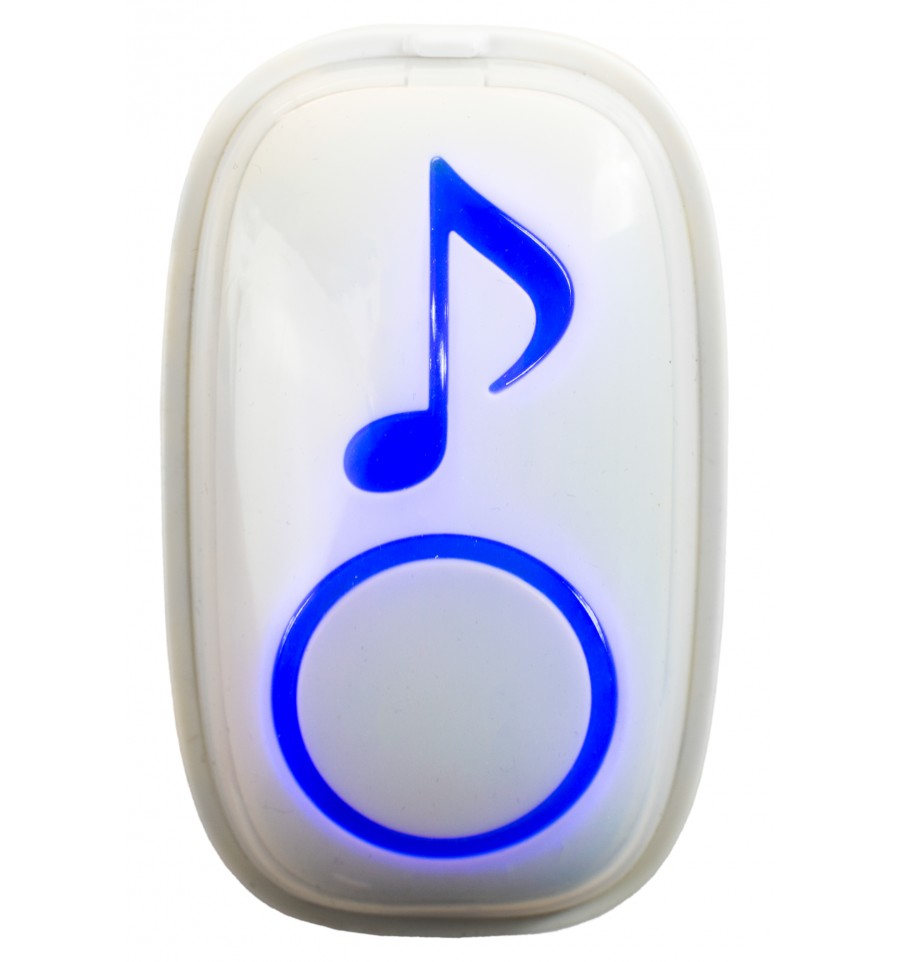

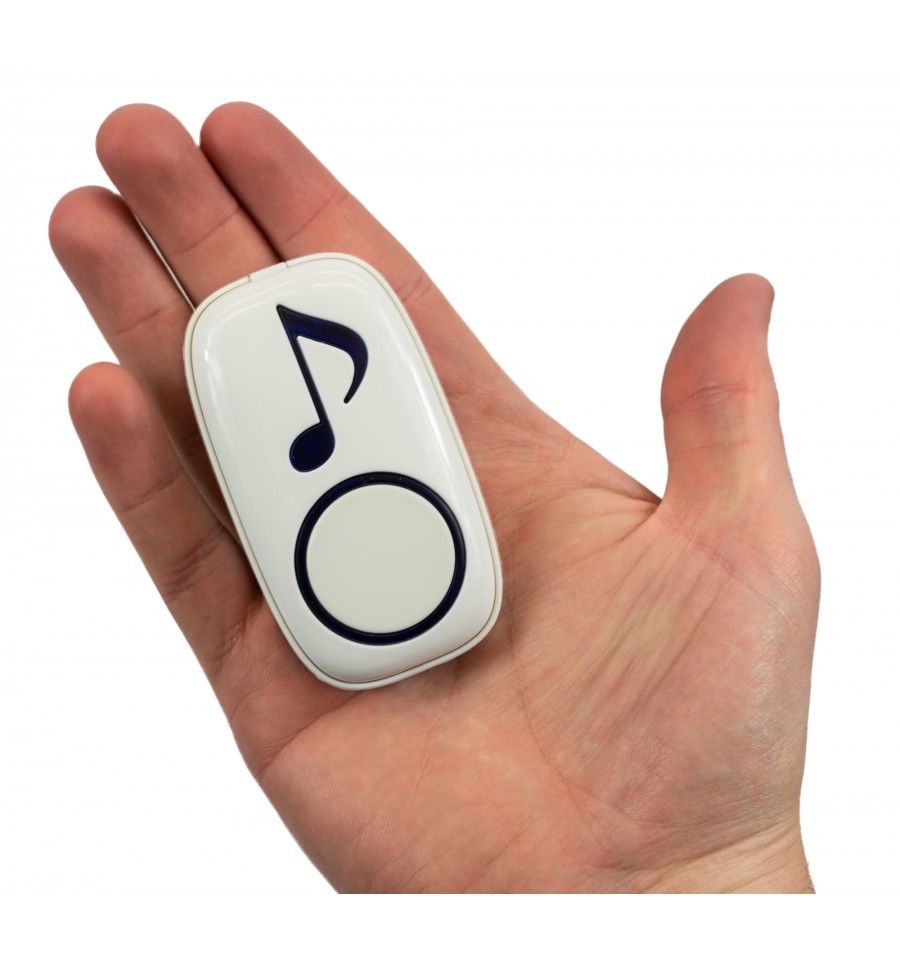

Doorbell:

• Size: 2.69" (L) x 1.5" (W) x 0.6" (D)
• Power: 12v 23A Alkaline Battery (MN21).
• Wireless Operating Range: 984 ft (line of sight) which equates to 320 - 490ft in most applications.
• Colour: White & Blue.
• Fixing Method: Double Sided Tape (supplied).
• IP Rating: IP55 (with cover).
