Metal Detecting Driveway Alarm & Outdoor Receiver

Long Range Driveway Metal Detecting Alarm with Outdoor Receiver & Loud 118 dB Siren

004-4350

New

A unique Long Range Protect-800 Driveway Metal Detecting Magnetic Alarm with an Outdoor Receiver & Loud Siren, designed to be heard Outside by Intruders. The duration of the Siren is fully adjustable and controlled using a special long range Remote ControlWhen Armed the Siren will trigger for the chosen duration when the Probe is Triggered.

More details

$538.49

(excluding all taxes)
In stock, order now for fast delivery

100% secure payment
A unique Long Range Protect-800 Driveway Metal Detecting Alarm with an Outdoor Receiver & Loud 118 Decibel Siren, designed to be heard Outside by Intruders.

Vehicle Detecting Probe Alarm

The duration of the Siren is fully adjustable and controlled using a special long range Remote Control. When Armed the Siren will trigger for the chosen duration when the Probe is Triggered, you can also trigger the Siren at any time using the SOS Button on the Remote Control.

Remote Control

This system can be expanded in many ways and is unique to Ultra Secure Direct !!

How it Works:
If the hidden Probe Detects moving Steel, a Wireless Signal will be transmitted up to 2400 ft away (line of sight, which equates to around 1200 - 1800 ft in most applications) to the Outdoor Receiver.
If the Receiver is in the Armed status then the Loud 118 Decibel Siren will activate for the chosen duration (this can be turned off by the owners before the duration has elapsed by using a special long range (2400 ft) remote control.

Loud Siren

The owner could also trigger the Siren using the SOS Button on the Remote Control in the event of a Medical or Security emergency, in these situations the Siren will stay latched ON until it is turned OFF using the special remote control (more remote controls can be added).

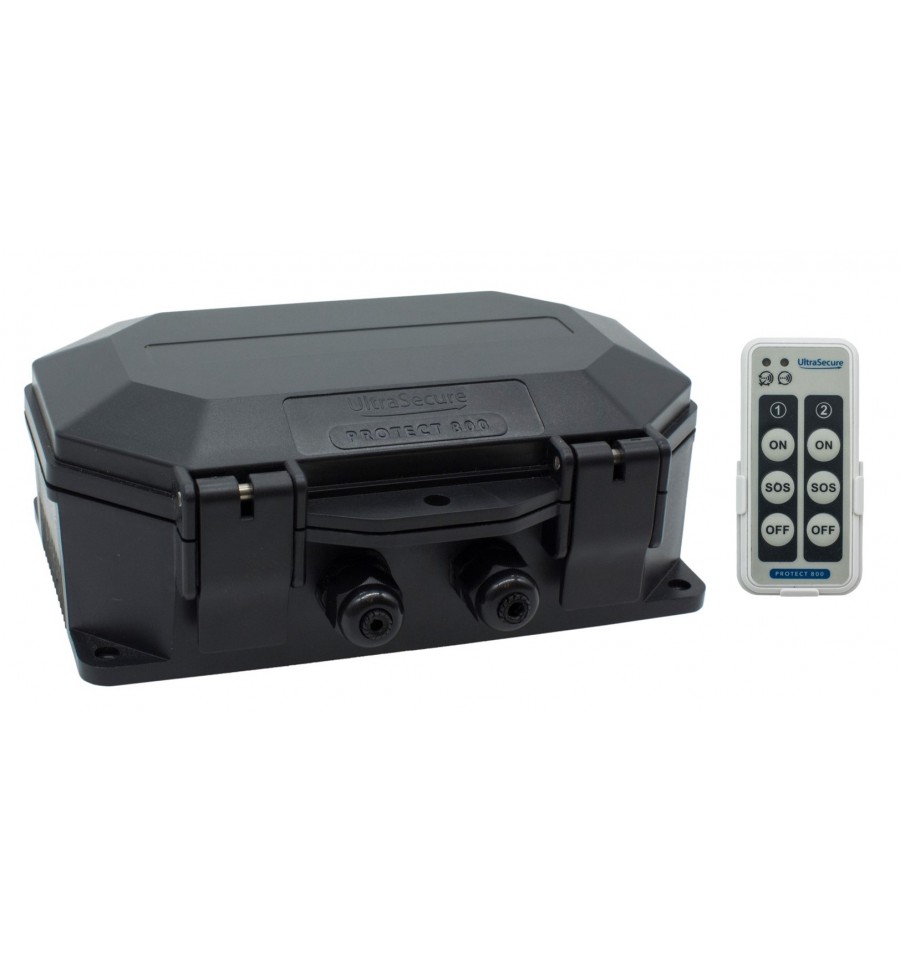

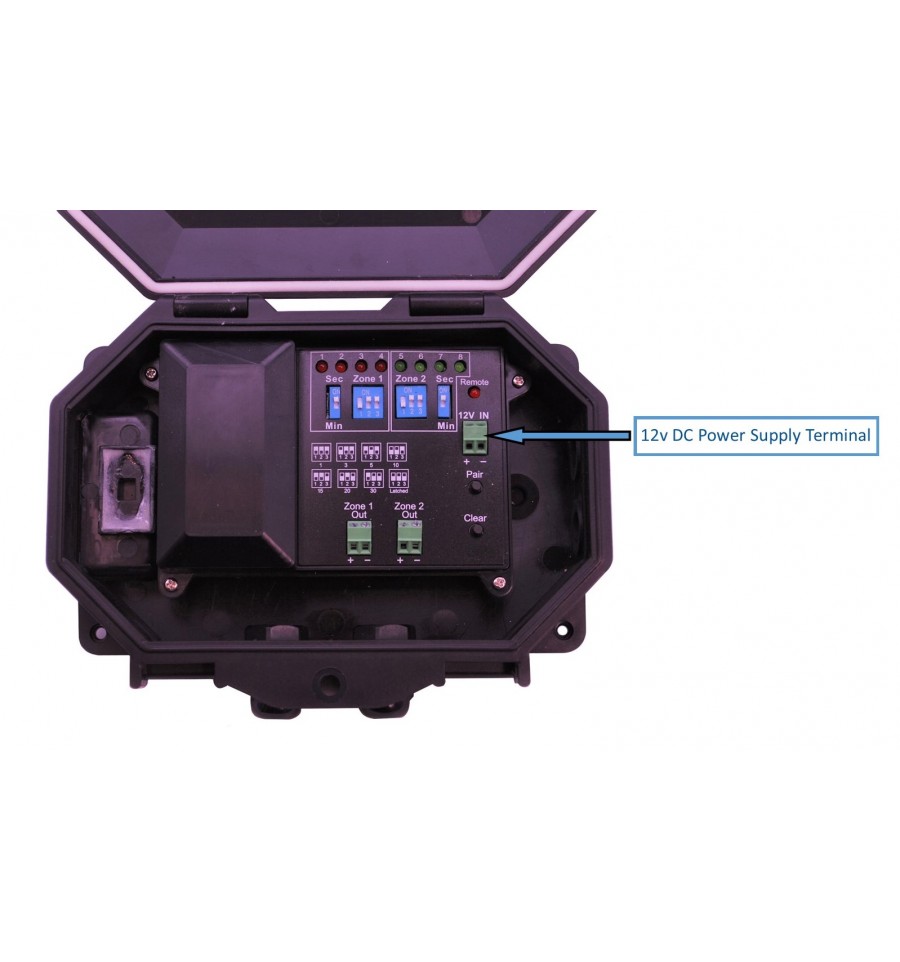

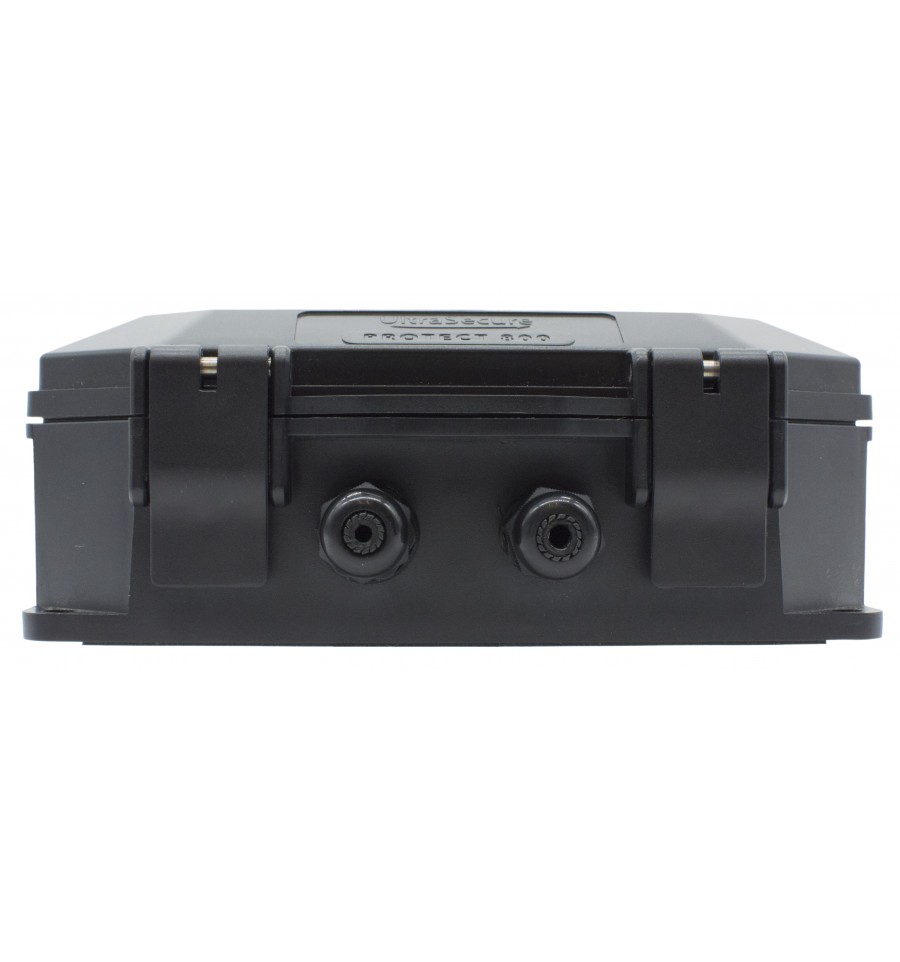

The fully weatherproof Outdoor Receiver is powered by a Plug in 12v Transformer (the cable can enter the box through waterproof glands at the bottom or from the rear panel) and controlled by a special long range (2400 ft) Remote Control.

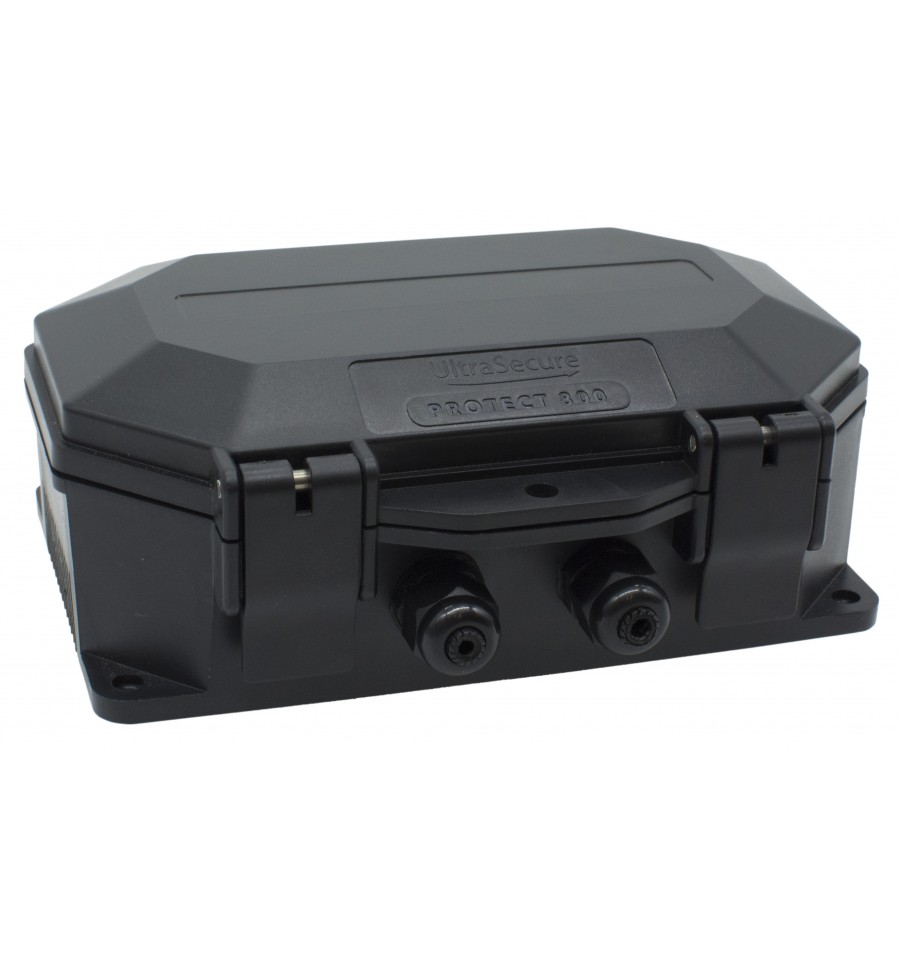

Outdoor Receiver

This is ideal for when you want a loud notification of the arrival of a Visitor (friendly or not) together with letting the Visitor know they have been detected.

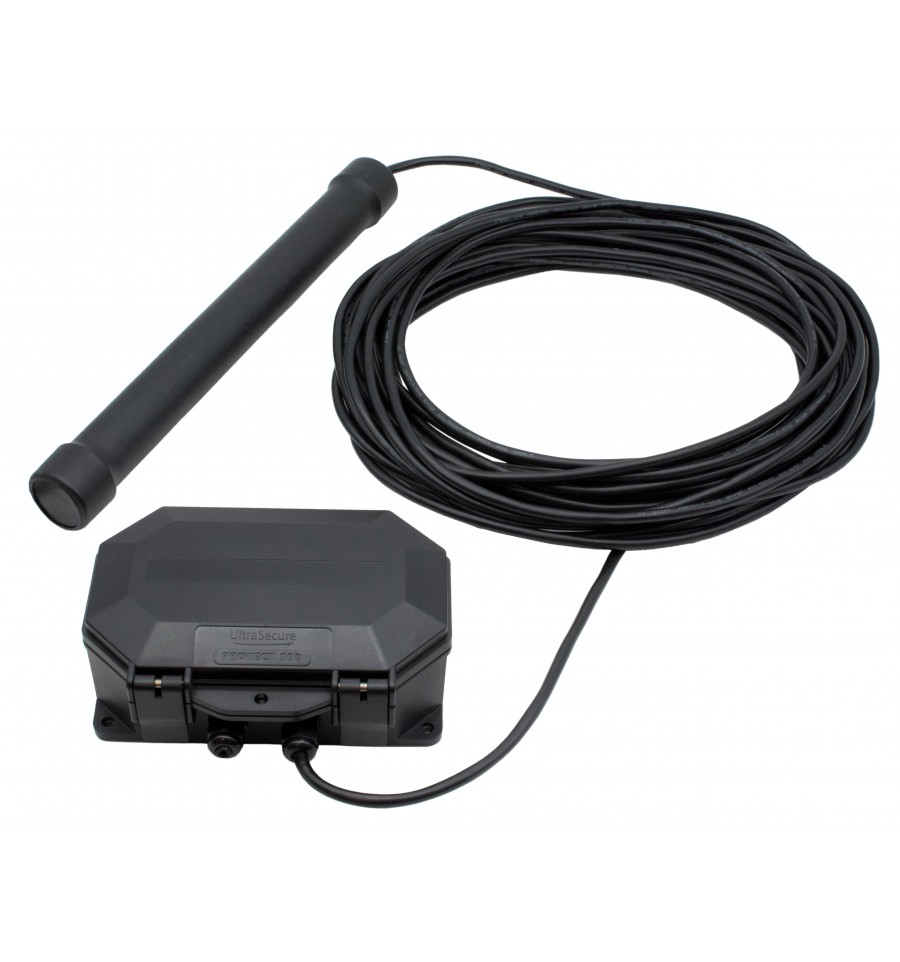

Wireless Transmitter & Probe:

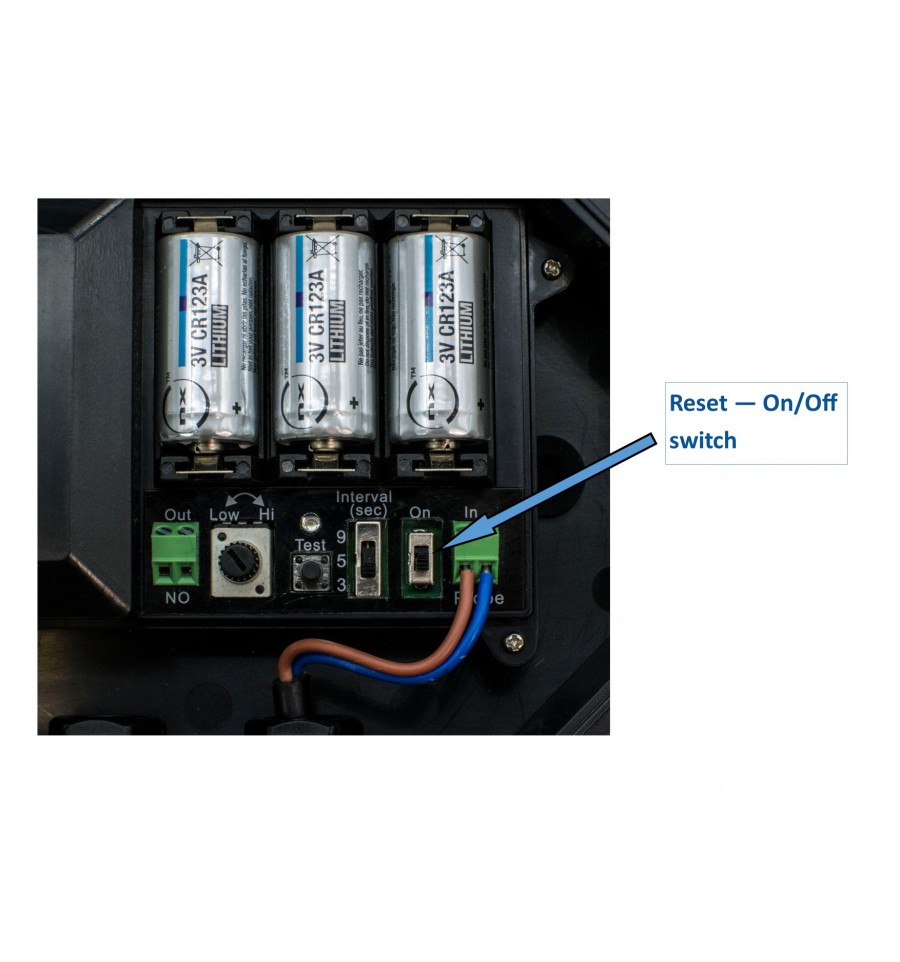

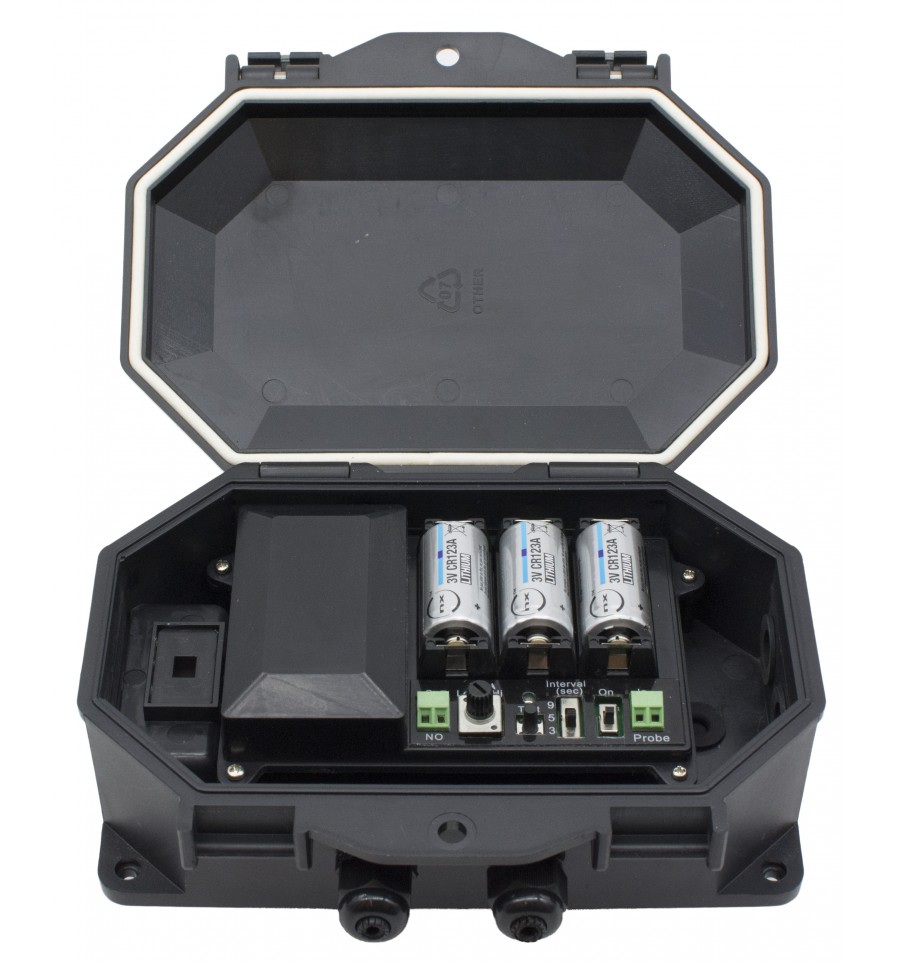

The Wireless Transmitter is powered by 3 x CR123A batteries and is fully weatherproof, the Vehicle Detecting Probe is supplied with 40 ft of Cable going back to the Transmitter Box, this allows you to install the Transmitter Box in a covert location and a location suitable for Wireless Transmission.

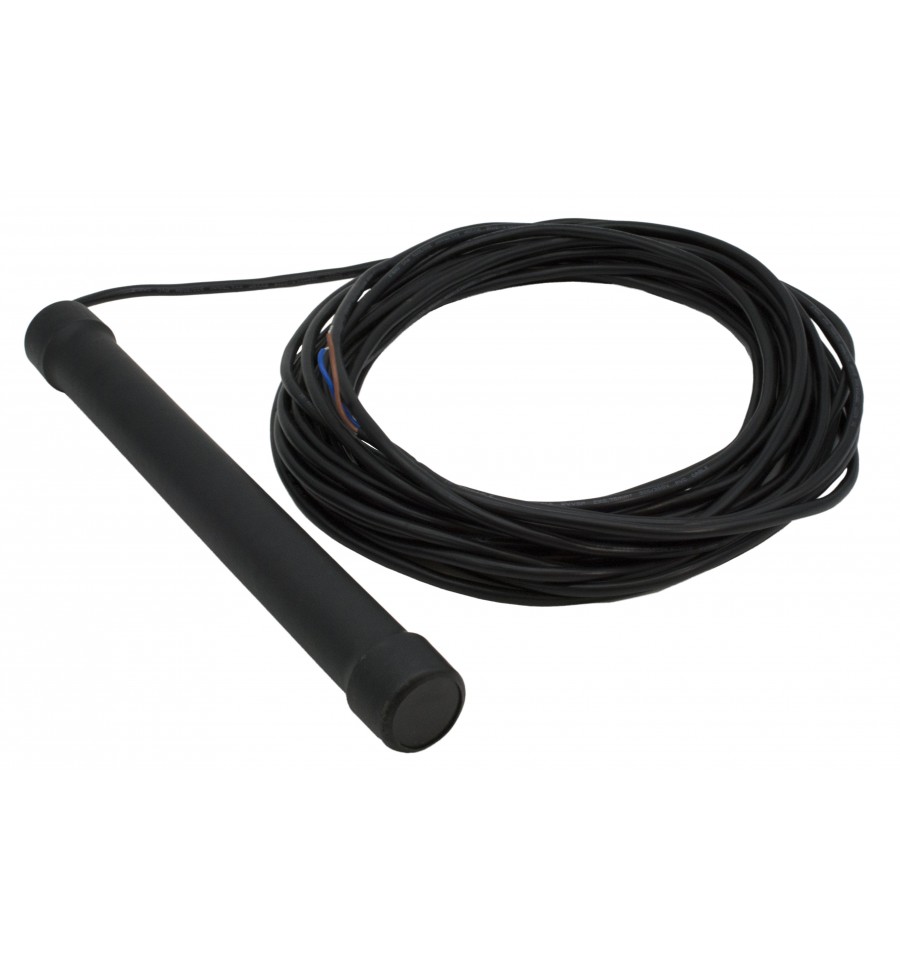

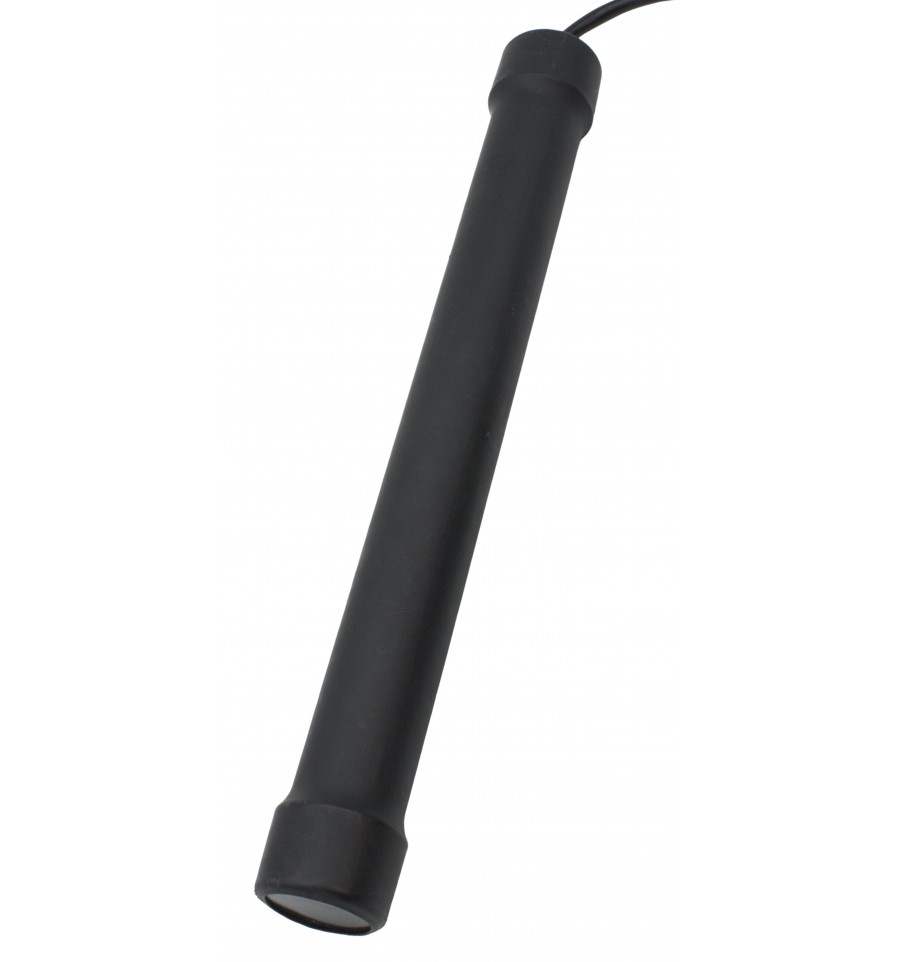

Vehicle Probe

The probe is designed to be buried just under the surface/grass parallel to the driveway, and will only pick up moving steel, so it is perfect for locations with large animals roaming around. It can even be placed next to a locked steel gate, and would only detect the gate if it moves.

Probe positioning

It is recommended that the Cable is fitted inside some protective sleeving prevent small ground animals damaging it.

There is sensitivity adjustment on the Transmitter Board allowing you to fine tune your Alarm.

You could also add an Internal Chime Receiver (004-4110) to the system allowing you to be notified when you are inside the House or Office.

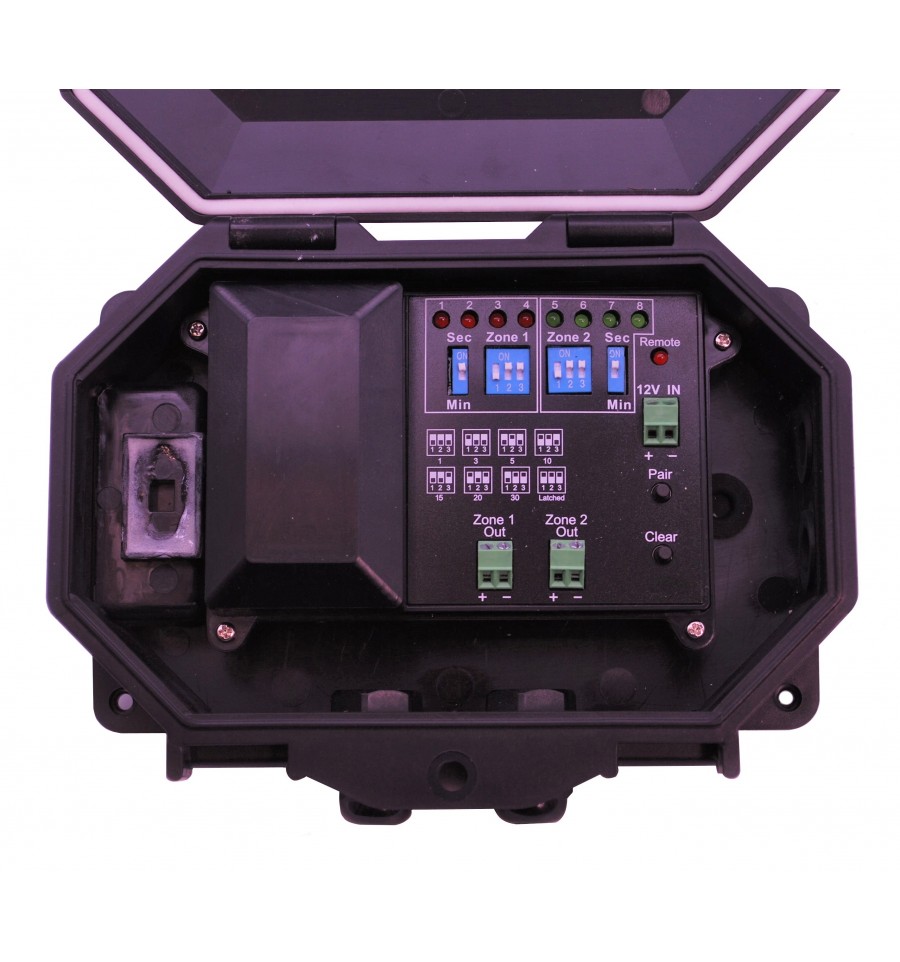

Duration:

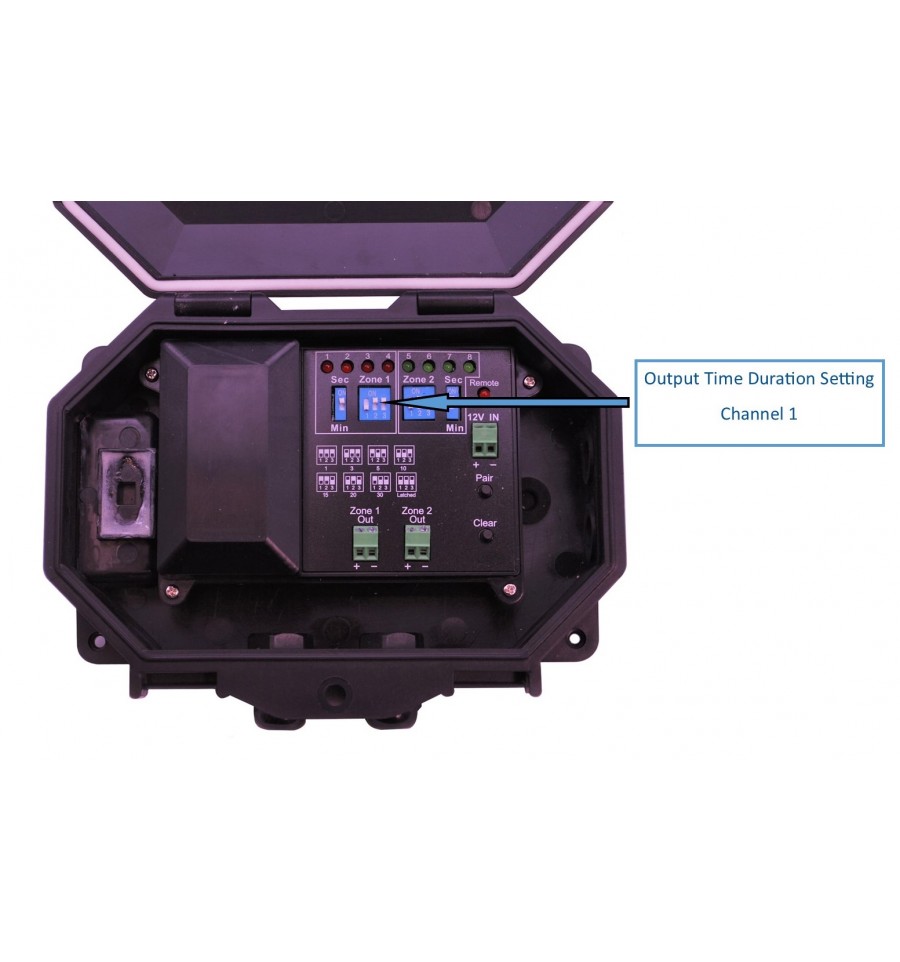

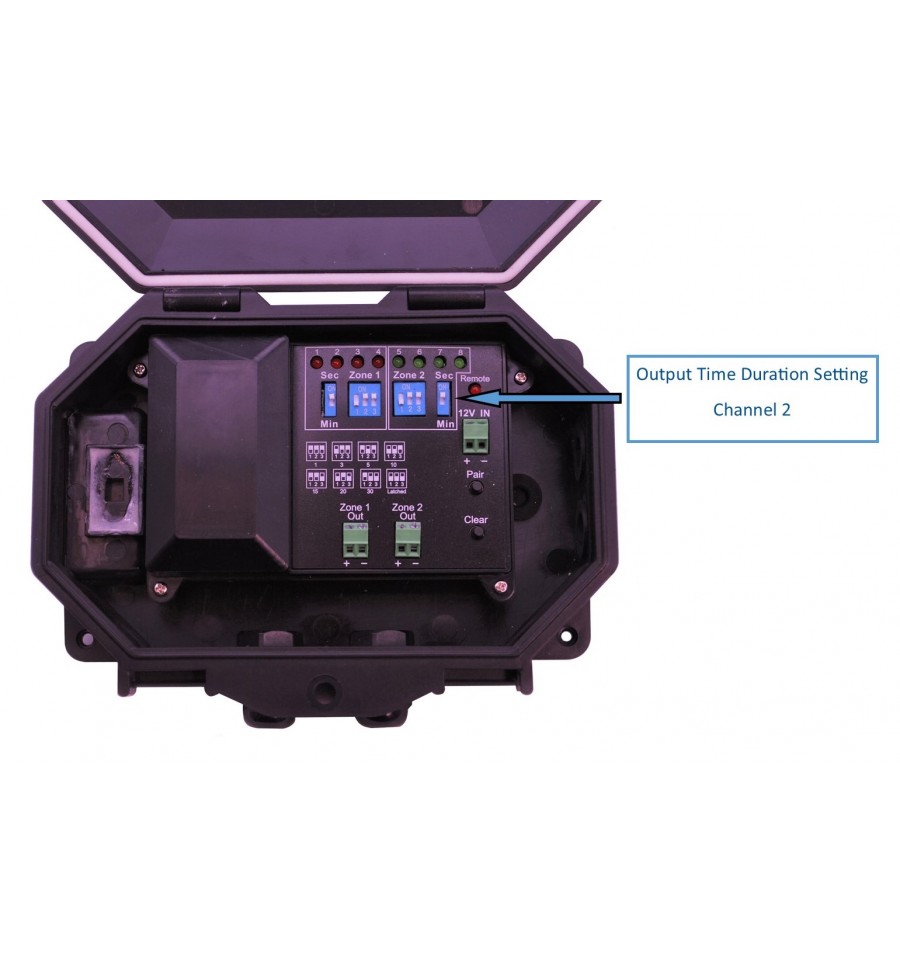

The duration of the Siren is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

  • 1 second or minute.
  • 3 seconds or minutes.
  • 10 seconds or minutes.
  • 15 seconds or minutes.
  • 20 seconds or minutes.
  • 30 seconds or minutes.
  • Latched ON (until disarmed using the remote control).

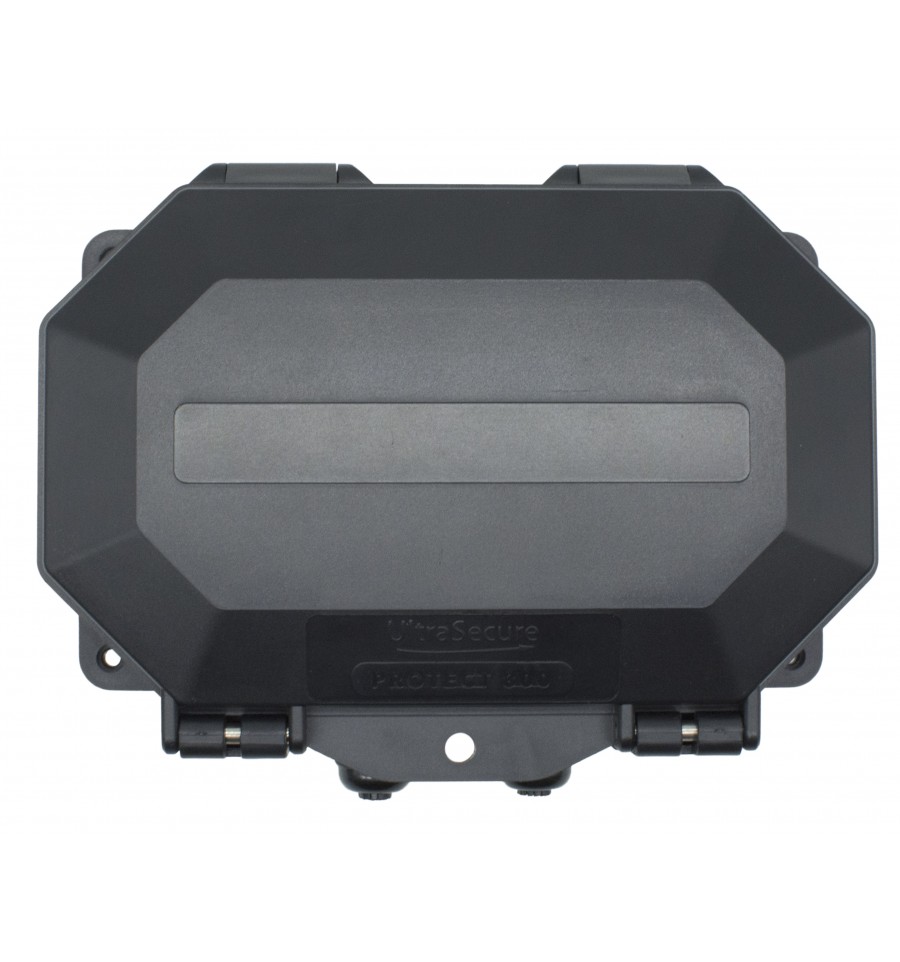

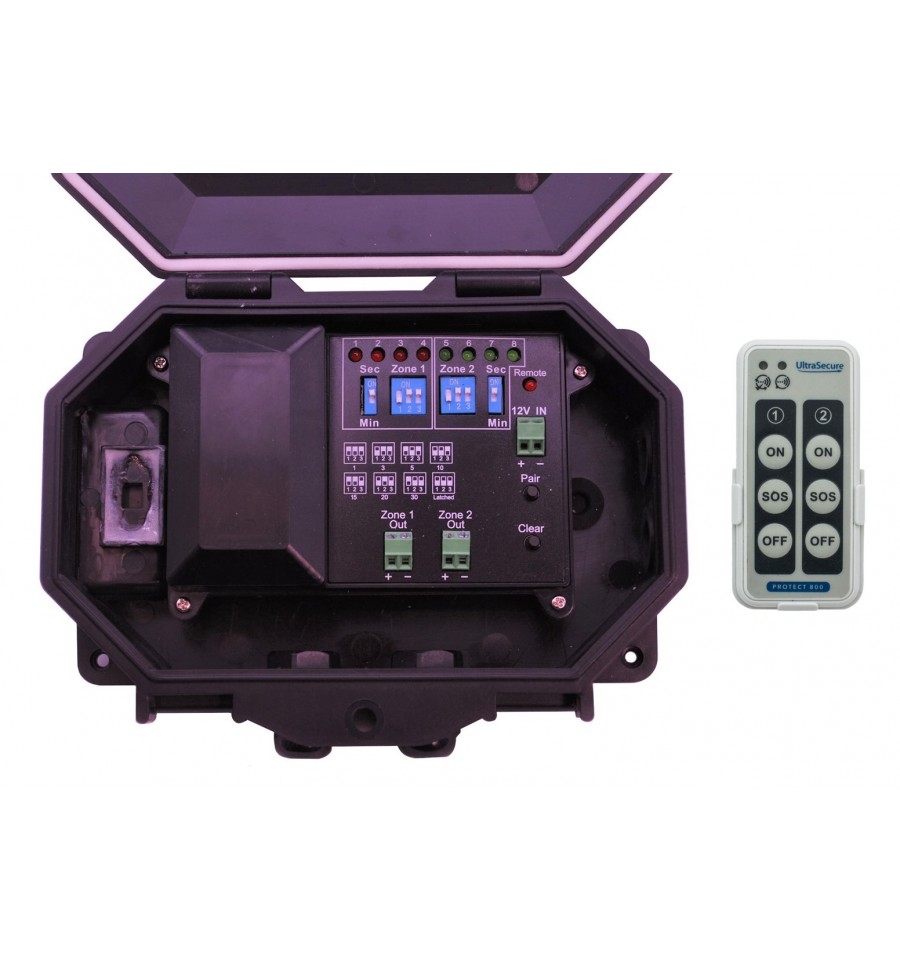

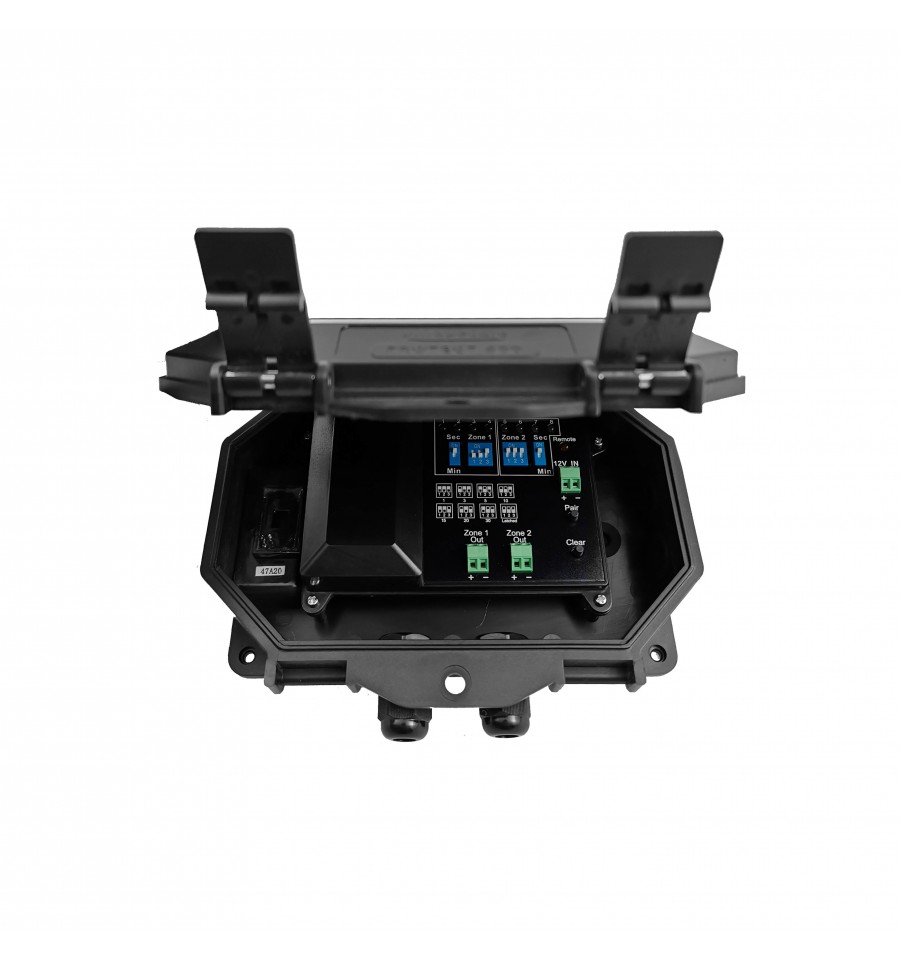

Outdoor Receiver:

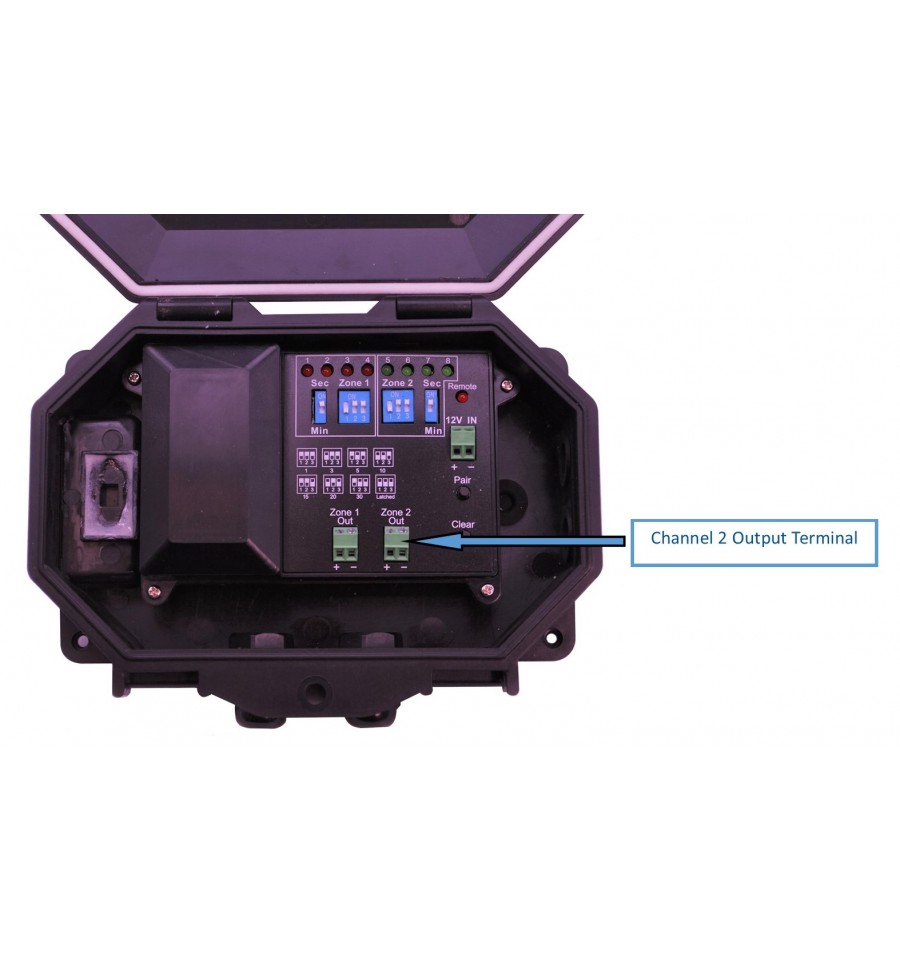

The Outdoor Receiver has two channels with a 12v Output, each channel can be operated by up to four Protect-800 Sensors, these include:

So it is possible to add additional 12v devices to Channel 1 or 2 and set the duration for a different time for each channel, examples of use could be:

  • The loud Siren for 20 seconds when triggered (when armed).
  • A bright 12v DC Floodlight for 10 minutes when triggered (when armed).
Outdoor Receiver

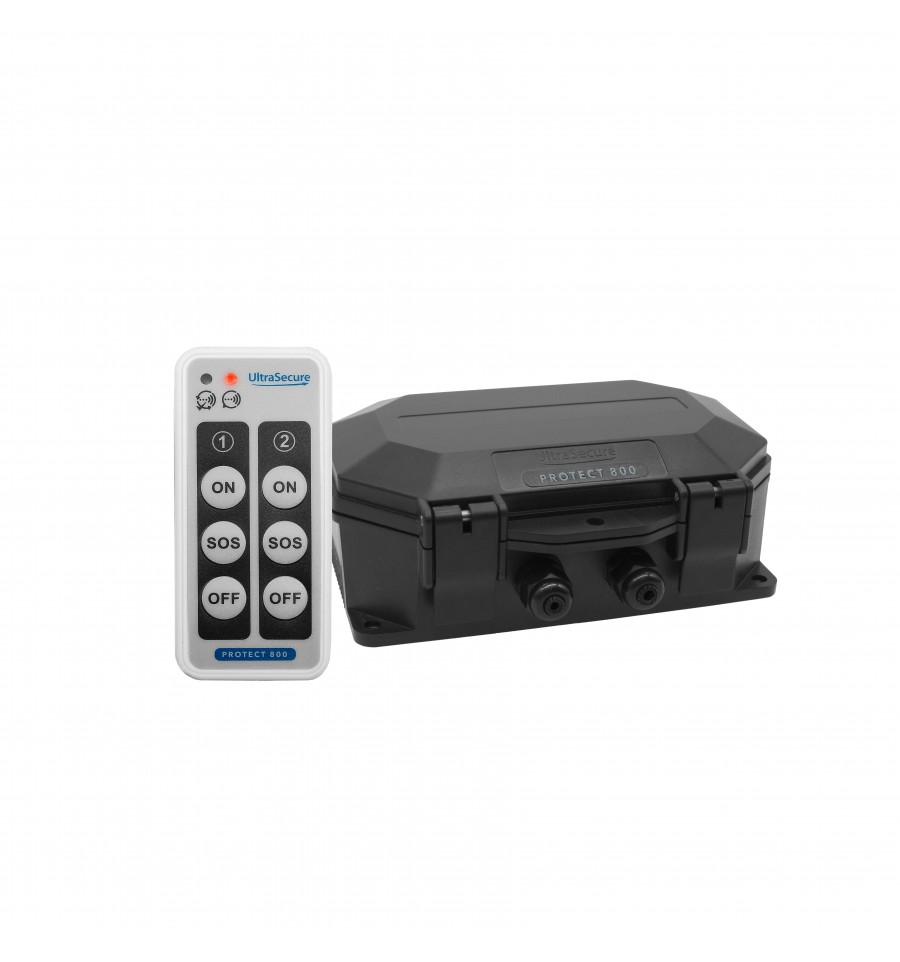

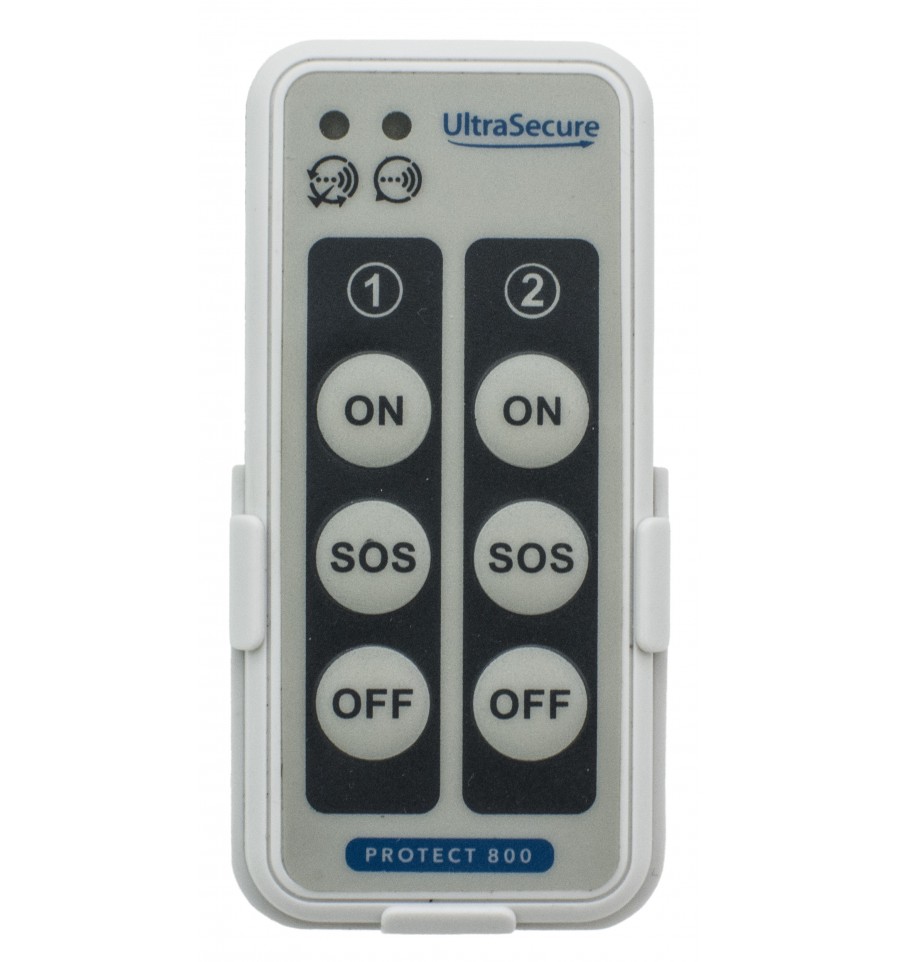

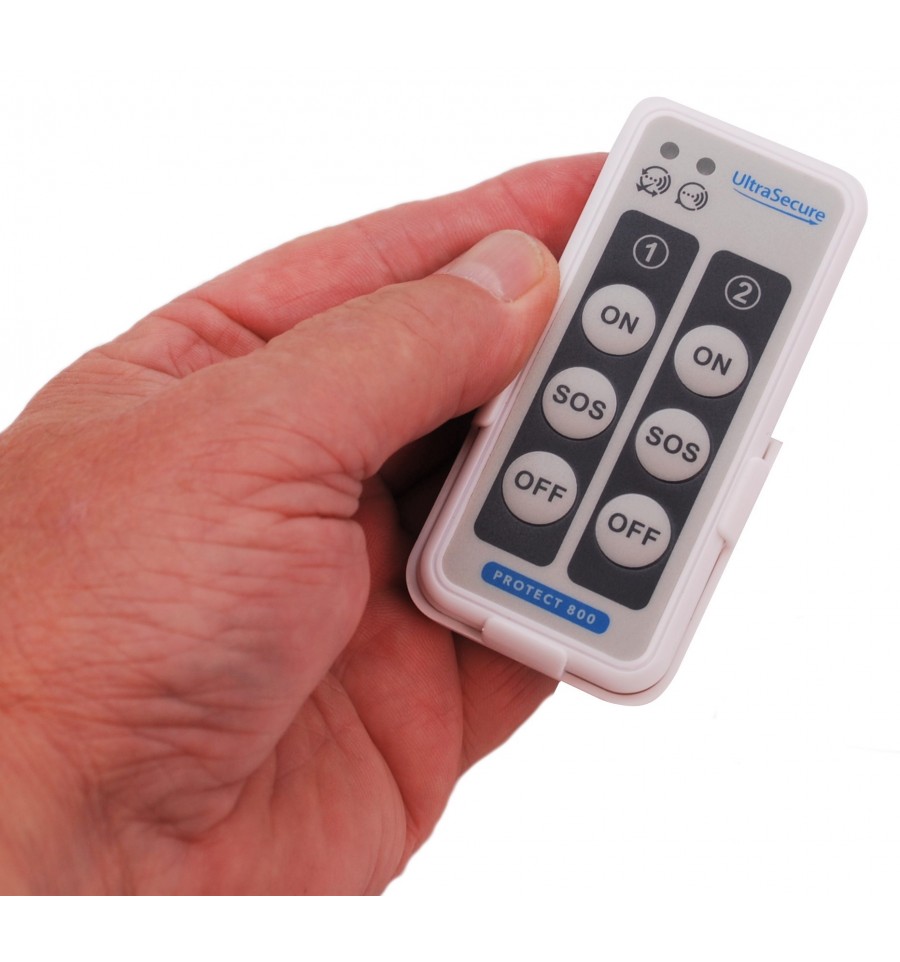

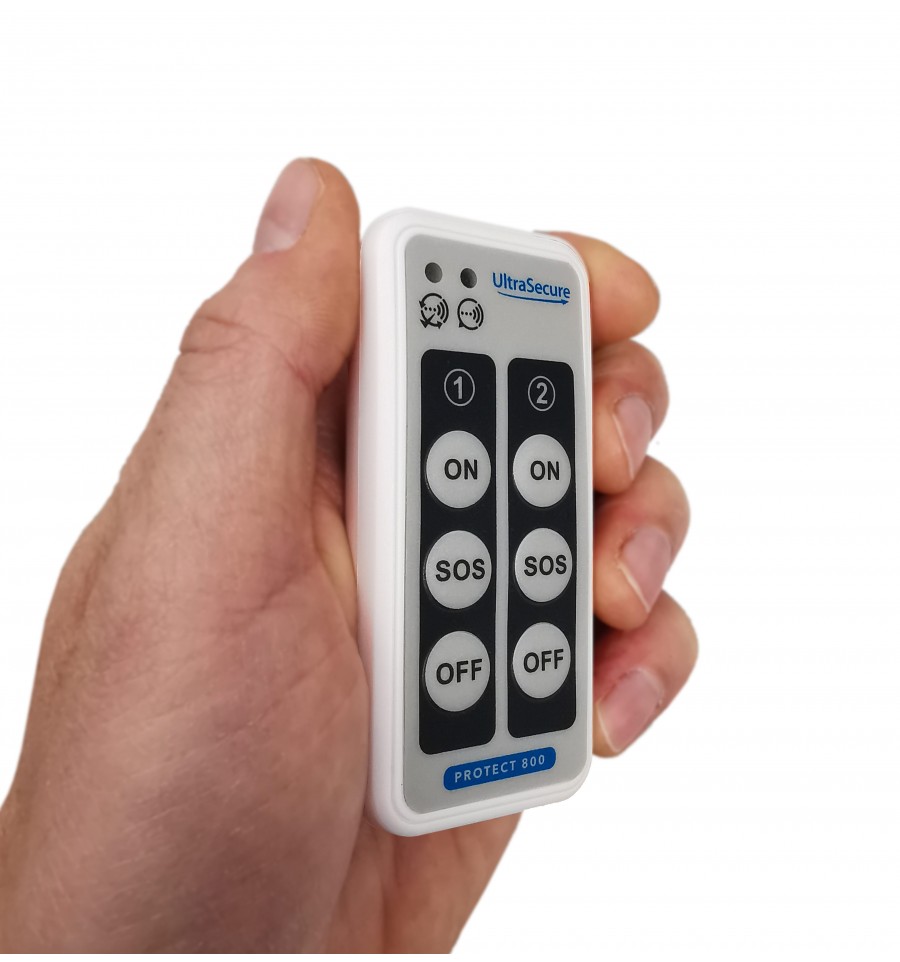

Remote Control:

The specially designed remote control supplied with this Outdoor Receiver has the following features:

  • Arm & Disarm either channel on the Outdoor Receiver.
  • Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.

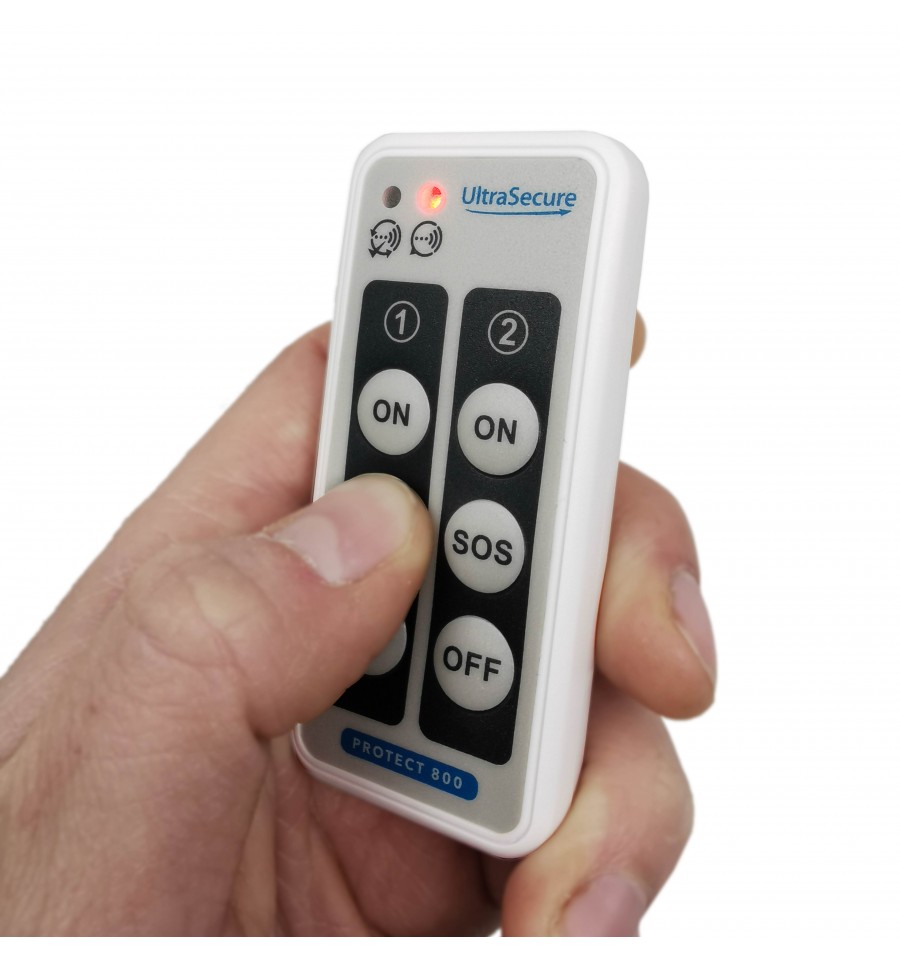

The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.

Remote Control

Additional Remote Controls can be added (there is no limit).

The operating distance between the Remote Control & Outdoor Receiver is 2400 ft (line of sight) which relates to around 1200 - 1800 ft in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.

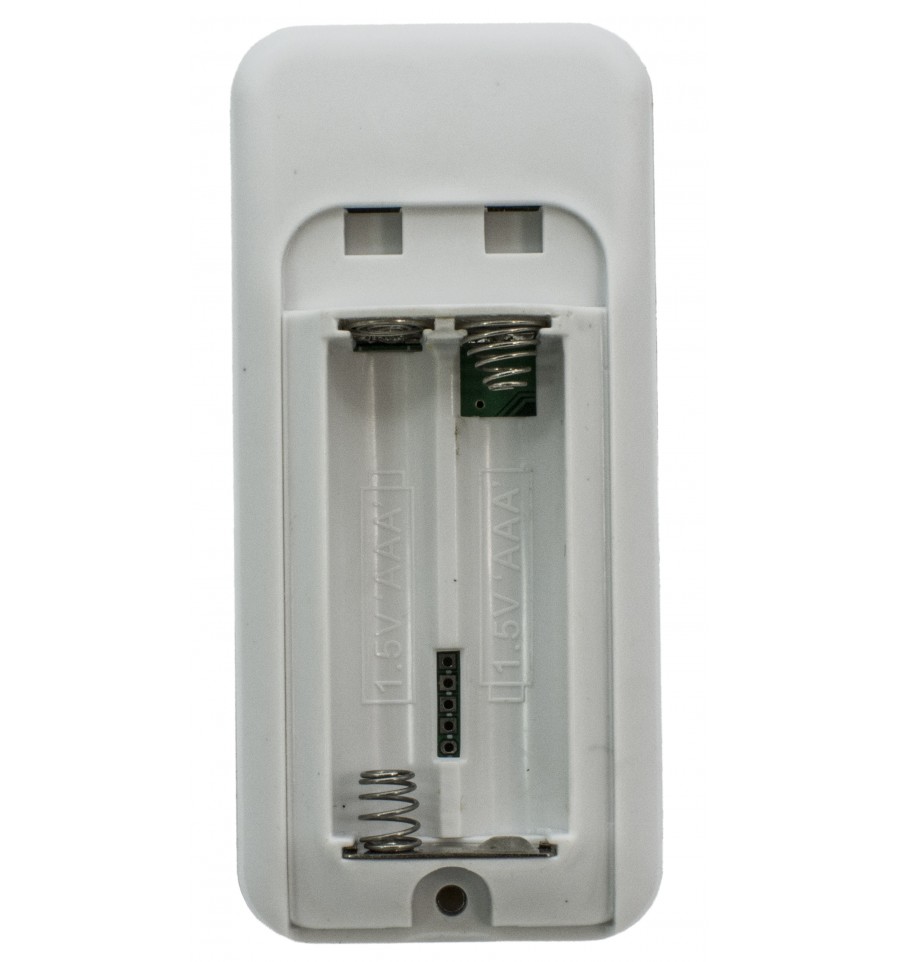

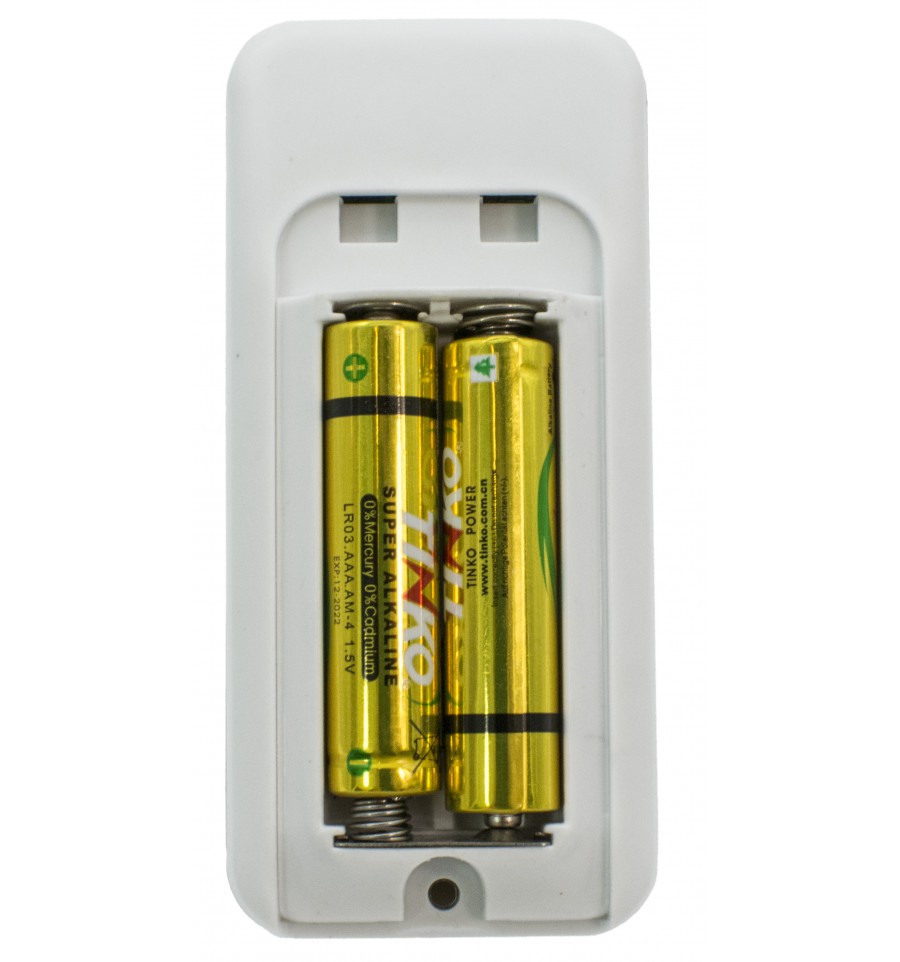

Powered by two standard AAA Batteries (supplied).

Standard Indoor Receivers:
You can also add the standard Indoor Receivers (004-4110) to this system allowing you to have notification inside the house (regardless of if the Outdoor Receiver is Armed or Disarmed).

This is a unique Outdoor Receiver which can be used in so many types of applications, not found in any other Driveway Alarm System !!
If you need assistance in selecting the right product for your personal needs or support after making a purchase, please do not hesitate to contact us:
Contact us
Our opening times: Monday-Friday 8:00am-5:00pm

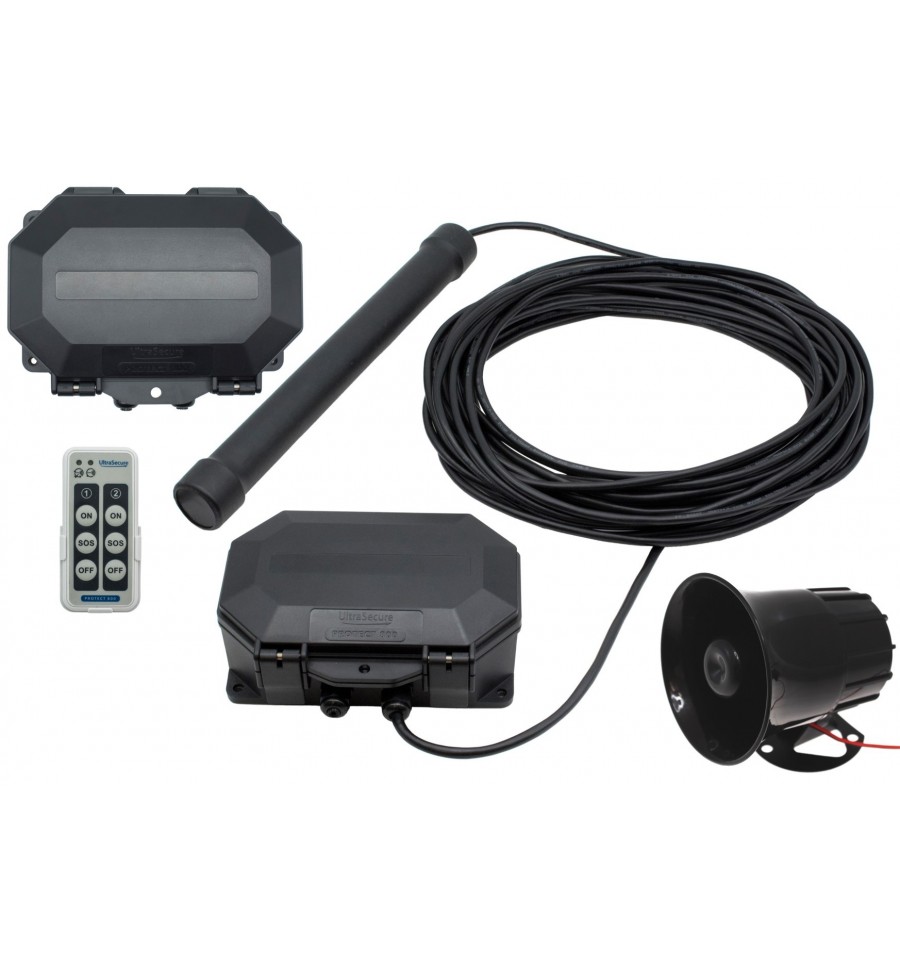

  • 1 x Outdoor Receiver (P800-WSR/1).
  • 1 x Remote Control (P800-WSK/1).

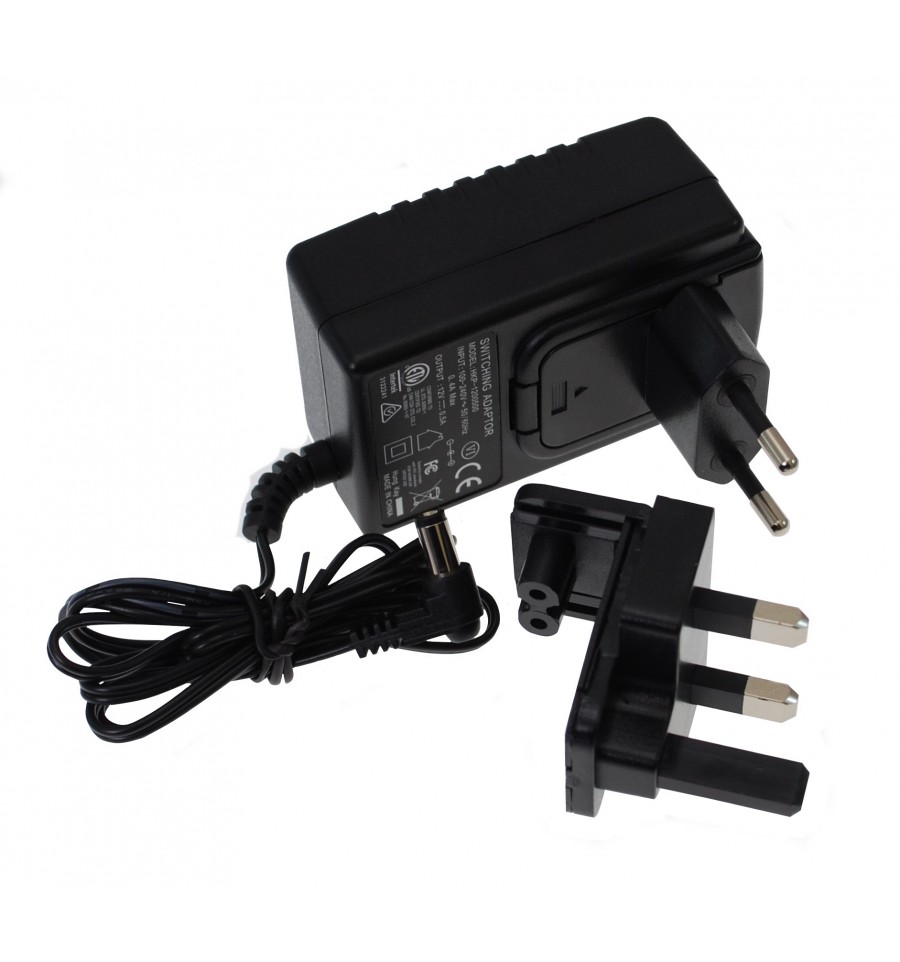

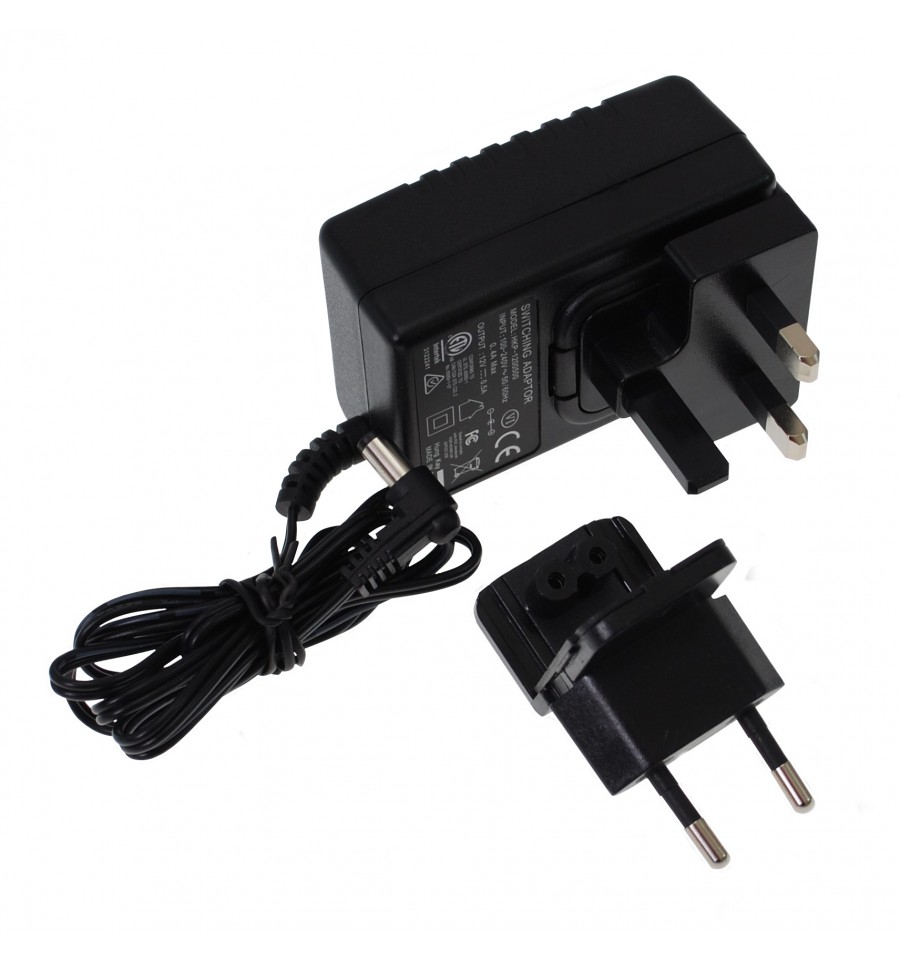

  • 1 x 12v DC Plug in Power Supply.
  • 2 x AAA Batteries.

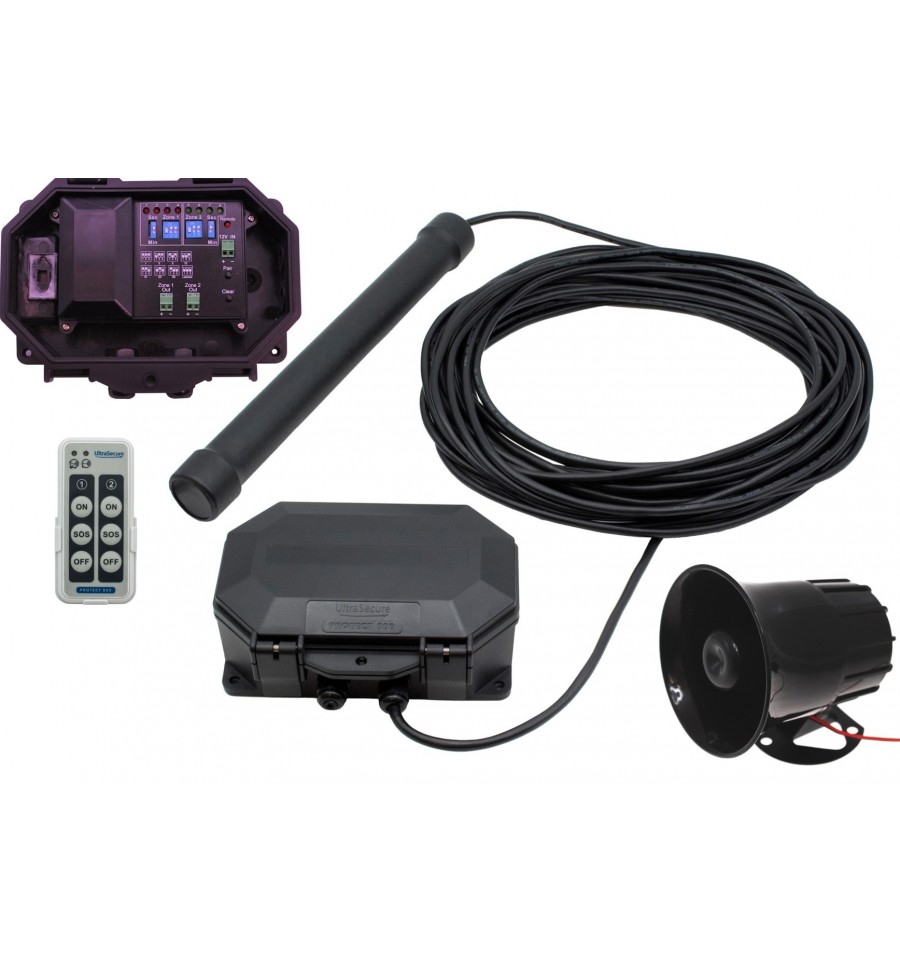

  • Protect 800 Wireless Driveway Metal Detecting Probe & Transmitter.
  • Set of Batteries.
  • 1 x 118 Decibel Siren.

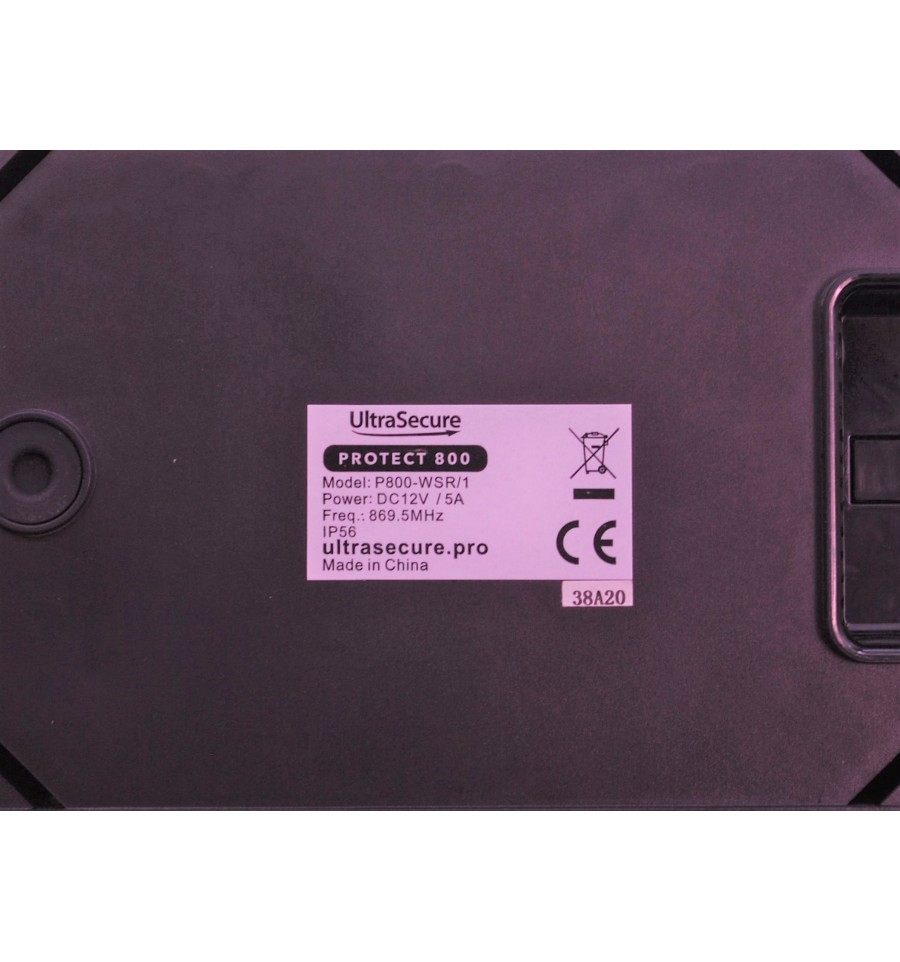

Receiver:

  • Weatherproof: Yes.
  • Power Supply: 12v 5 amp DC.
  • Weatherproof Cable Entry Glands: Yes.
  • Channels: 2.
  • Sensors per Channel: 4.
  • Operating Range: 2400 ft (line of sight).
  • Arming & Disarming Method: Remote Control.
  • 12v DC Outputs: 2.
  • Output Duration:
    • 1 second or minute.
    • 3 seconds or minutes.
    • 10 seconds or minutes.
    • 15 seconds or minutes.
    • 20 seconds or minutes.
    • 30 seconds or minutes.
    • Latched ON (until disarmed using the remote control).
  • Duration Selection: Internal Dip-switches.
  • Size: 6 3/4" x 5" x 2 3/8".

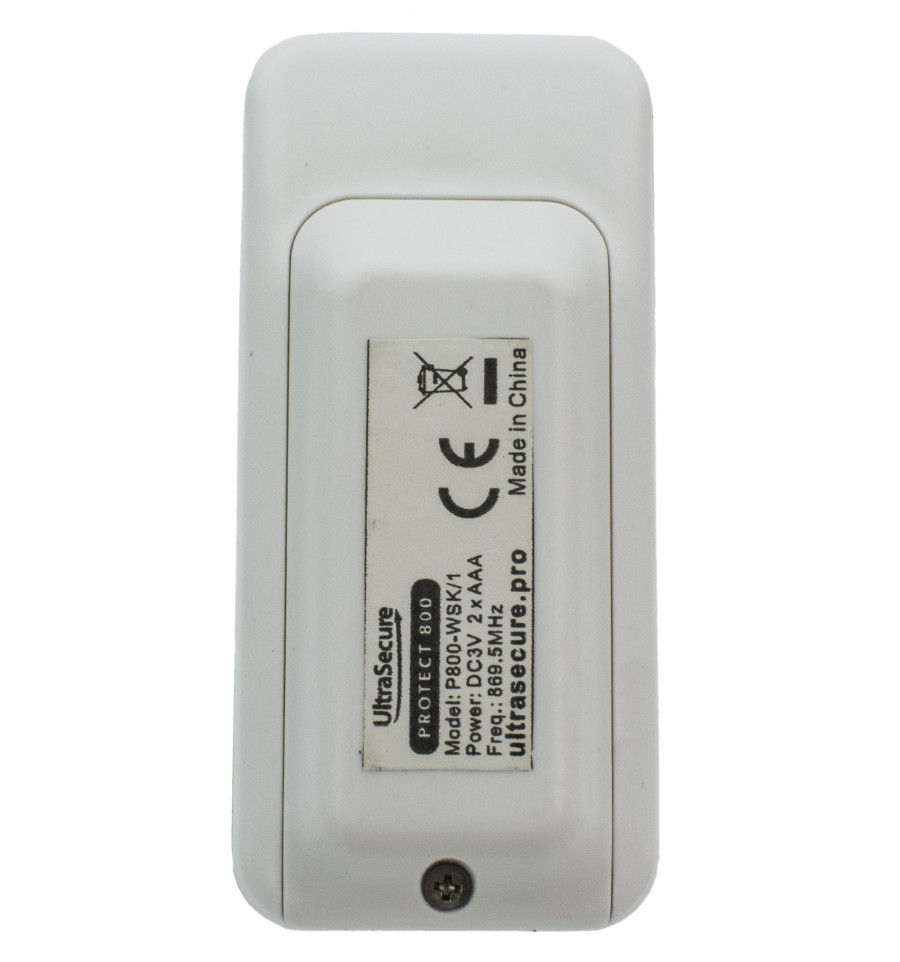

Remote Control:

  • Operation:
    • Channel 1 Arm, Disarm & SOS.
    • Channel 2 Arm, Disarm & SOS.
  • Power Supply: 2 x AA Batteries (supplied).
  • Size: 3 3/8" x 1 1/2" x 1".
  • Transmission Range: 2400 ft (line of sight).
  • Multiple Remote Control Operation: Yes (no limit).
  • Feedback Indicator: Yes (it confirms a successful operation).

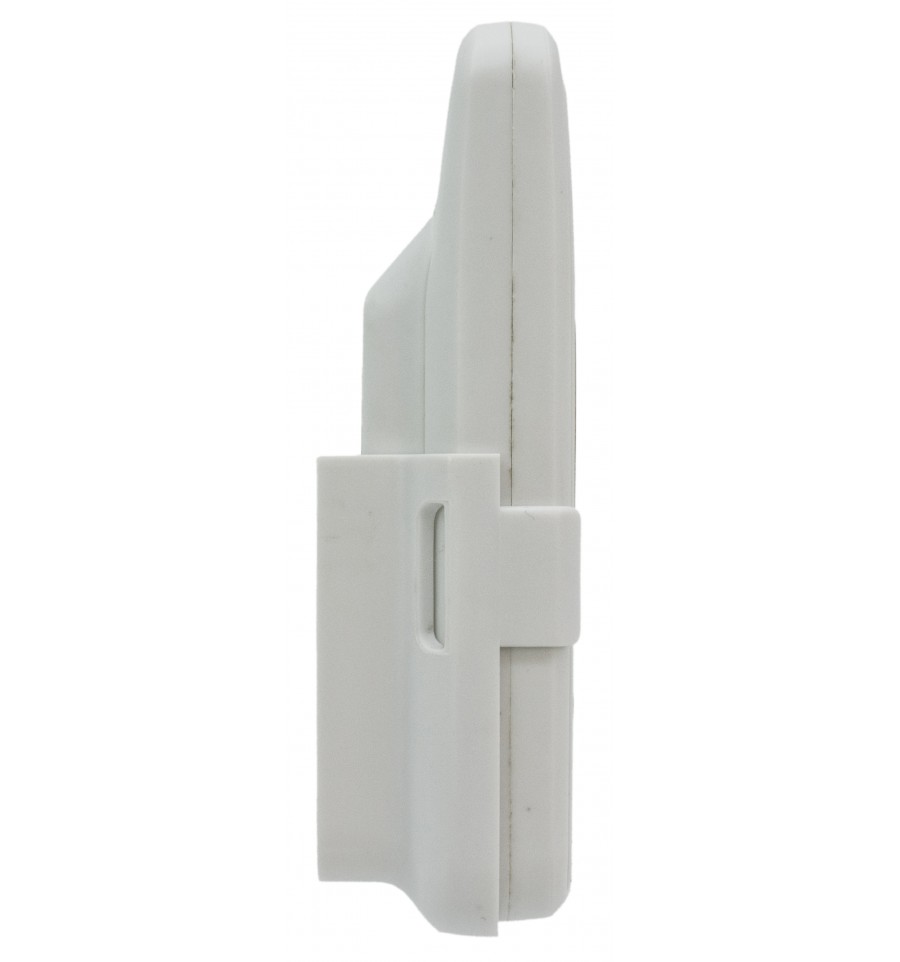

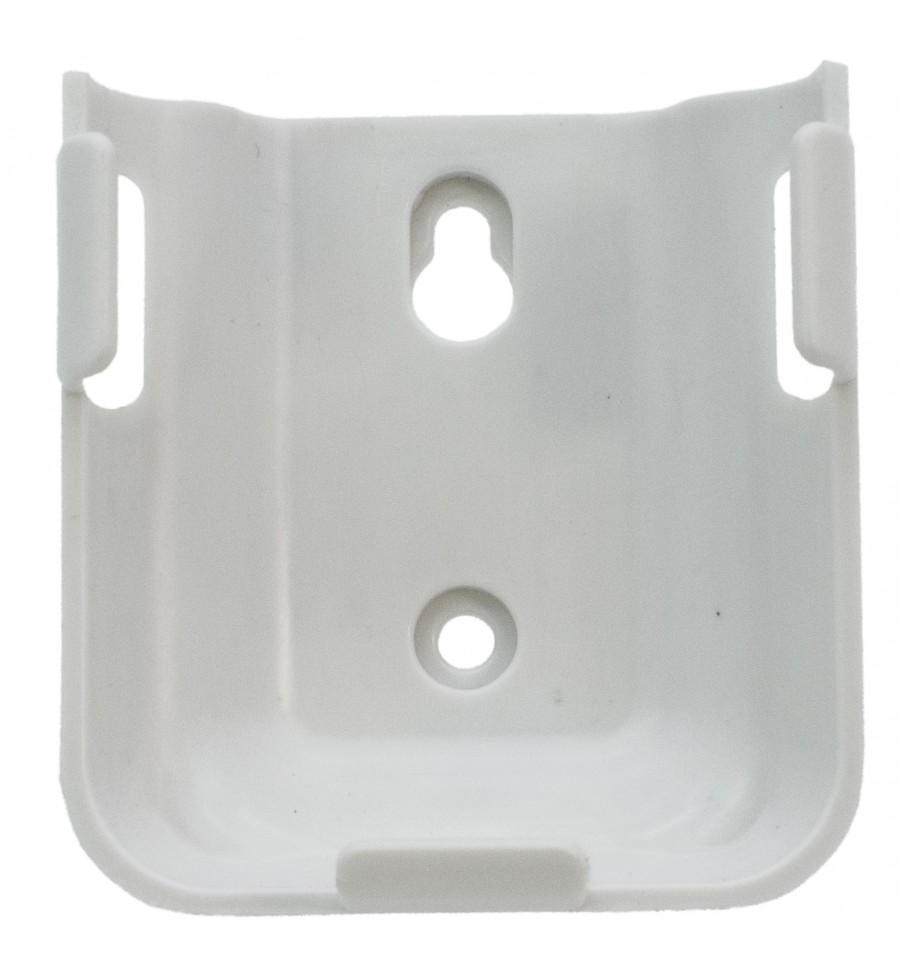

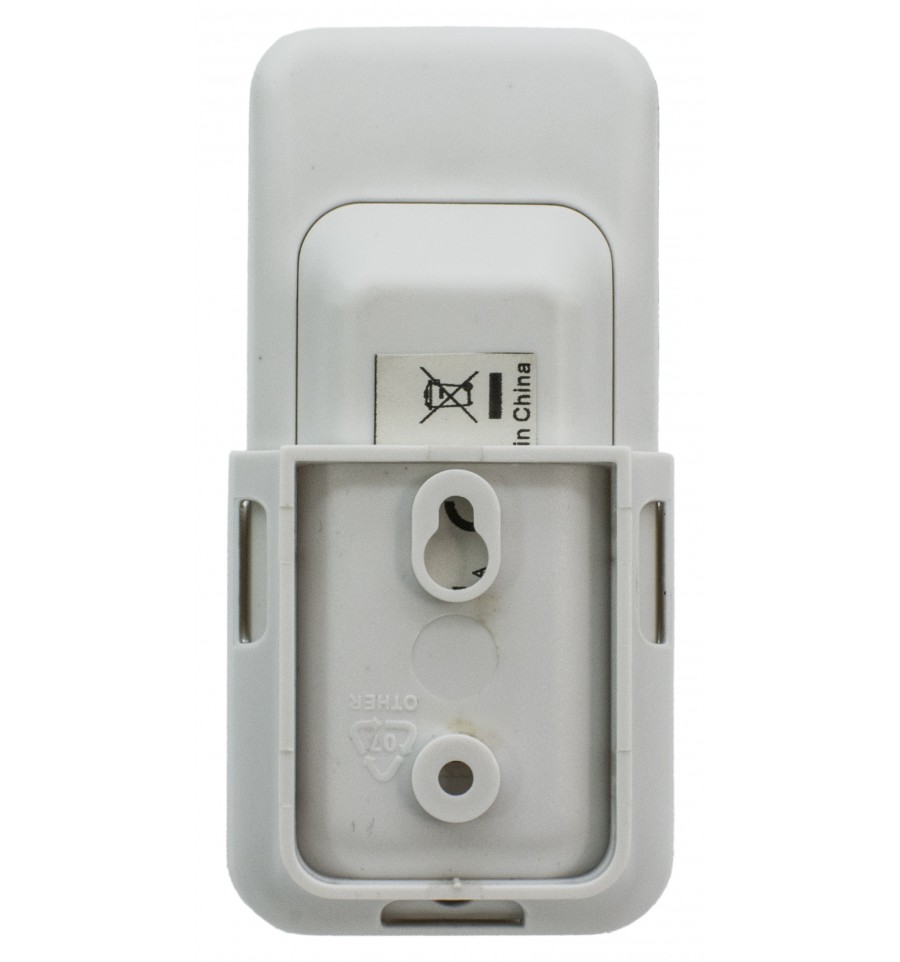

  • Wall Bracket: Yes (supplied).

Wireless Transmitter & Probe:

  • Size of Mounting Box: 6 3/4" x 5" x 2 3/8".
  • Weatherproof: Yes.
  • Power Supply: 3 x CR123A Batteries.
  • Length of Cable: 45 ft.
  • Size of Probe: 12" x 1 1/2".
  • Wireless Transmission: 2400 ft (line of sight).

Siren:

  • Weatherproof: Yes.
  • Decibel Level: 118 Decibel (2-tone).
  • Colour: Black.
  • Voltage Input: 12v DC.
